| DR-60W Technical index | ||
|---|---|---|
| Output Specifications | ||
| DC Voltage | 12V | 24V |
| Rated Current | 4.5A | 2.5A |
| Rated Power | 54W | 60W |
| Ripple and noise (Max.) | <120mV | <150mV |
| Voltage Precision | ±1% | |
| Output Voltage regulation Range | ±10% | |
| Load adjustment rate | ±1% | |
| Linear adjustment rate | ±1% | |
| Input Specifications | ||
| Voltage Range | 85-264VAC 47Hz-63Hz (120VDC-370VDC) | |
| Efficiency (typical) | >82% | >84% |
| Working Current | <0.8A 110VAC / <0.4A 220VAC | |
| Shock Current | 110VAC 15A / 220VAC 30A | |
| Start, Rise, Hold time | 100ms, 30ms, 21ms : 110VAC / 100ms, 30ms, 100ms : 220VAC | |

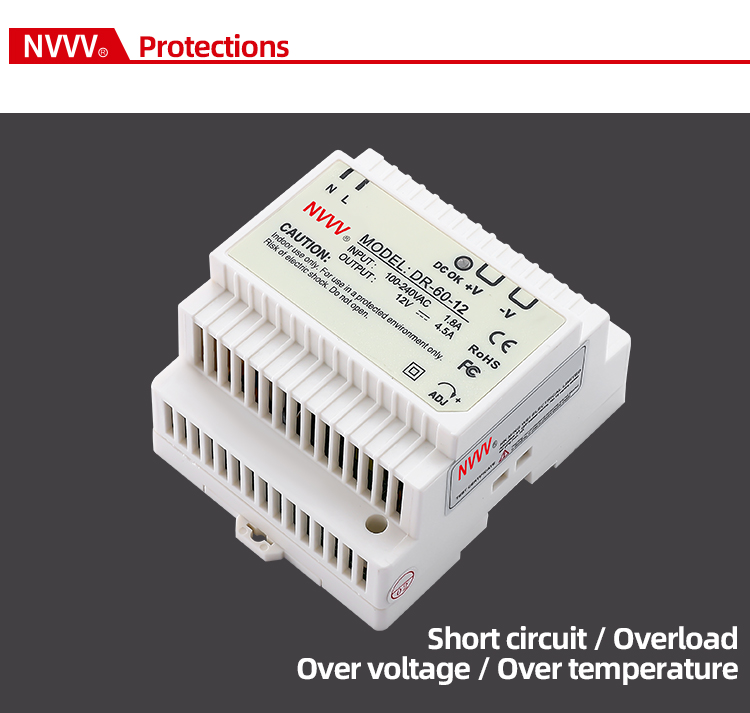

| Protections | ||
| Overload Protection | 105%-150% type: protection mode: automatic recovery after abnormal conditions are removed | |
| Short circuit protection | VO when the abnormal condition of output is released, it will recover automatically | |
| Environmental | ||
| Working temp. and humidity | -10℃ ~ +50℃ ; 20% ~ 90% RH | |
| Storage temp. and humidity | -20℃ ~ +85℃ ; 10% ~ 95% RH | |
| Security | ||
| Pressure Resistance | O/P-I/P, I/P-O/P: 3KVAC | |
| Isolation Resistance | I/P-O/P, O/P-Shell, O/P-Shell : 500VDC / 100MΩ | |
| Others | ||

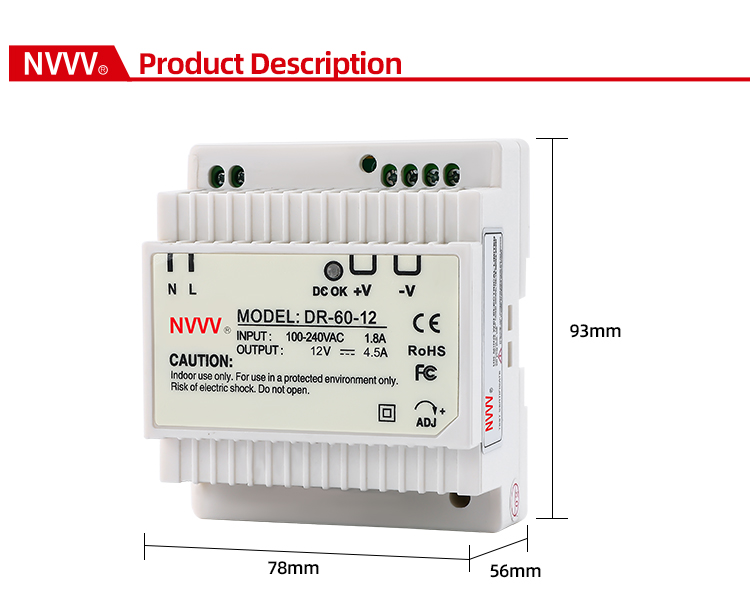

| Size | 78 * 93 * 56mm | |
| Net/Gross Weight | 270 / 290g | |
