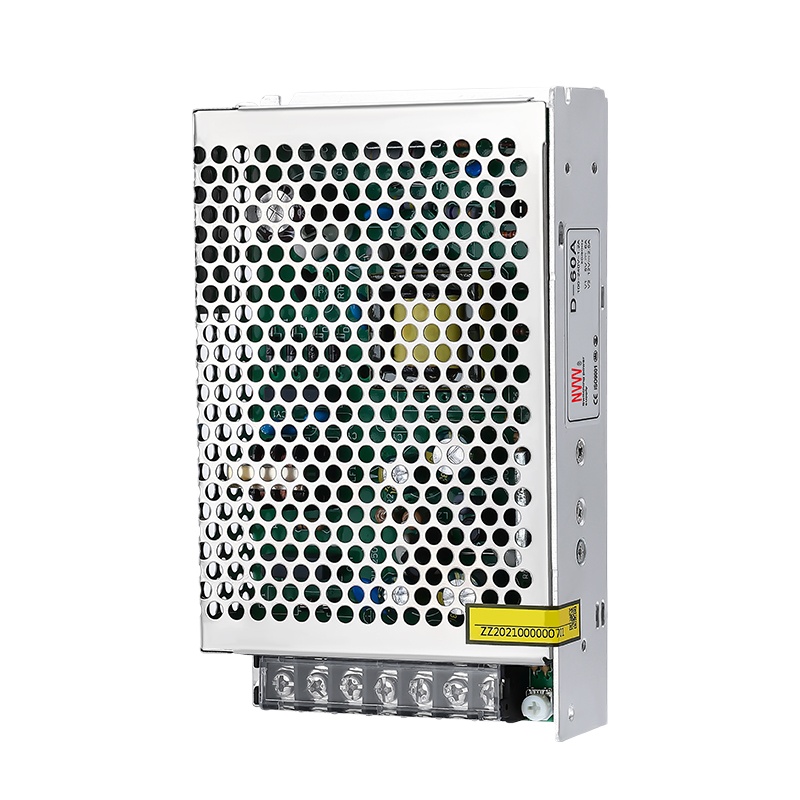

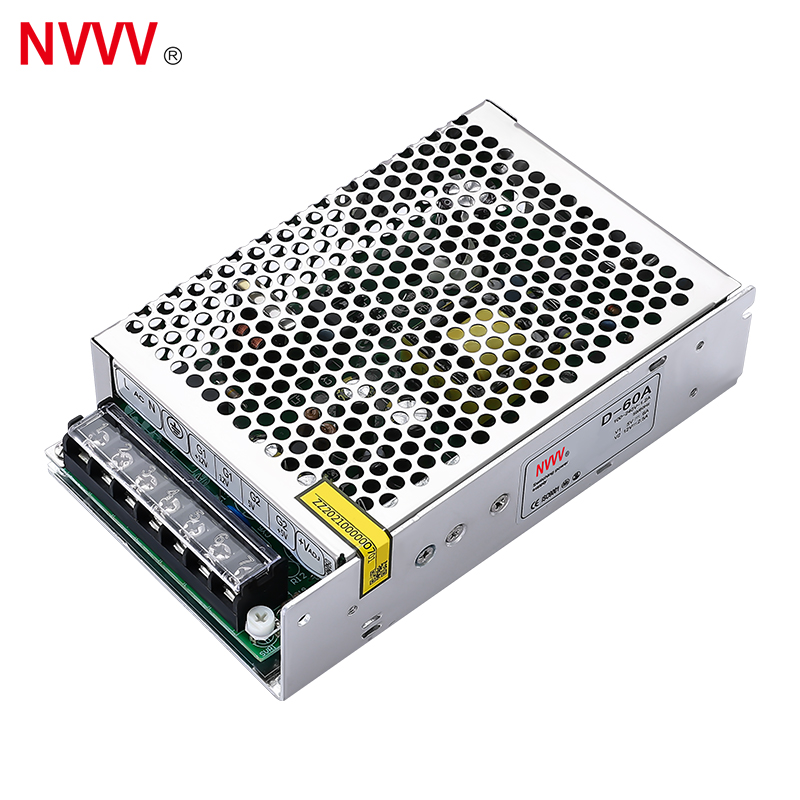

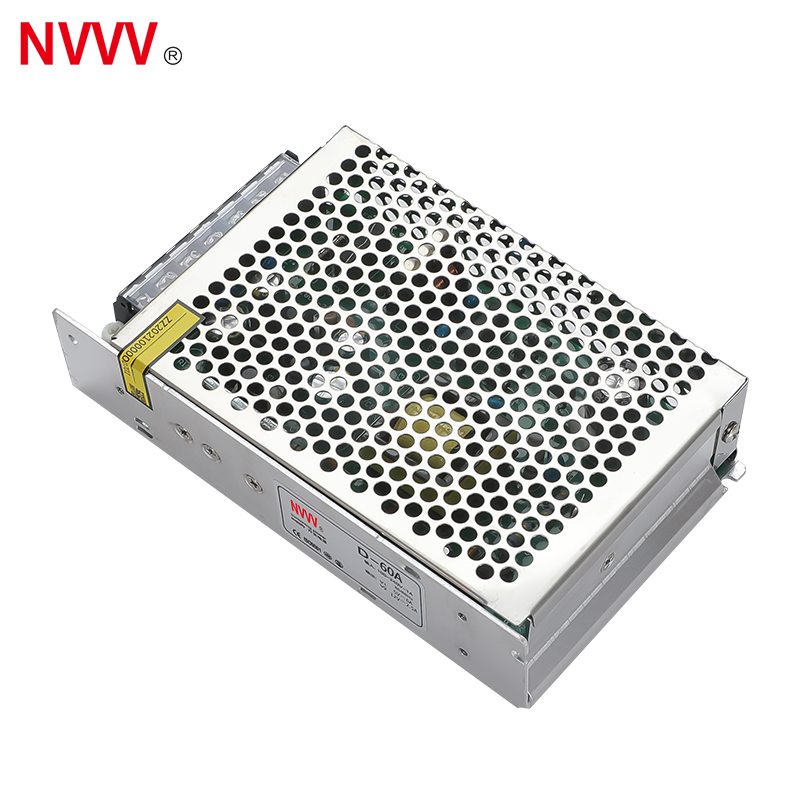

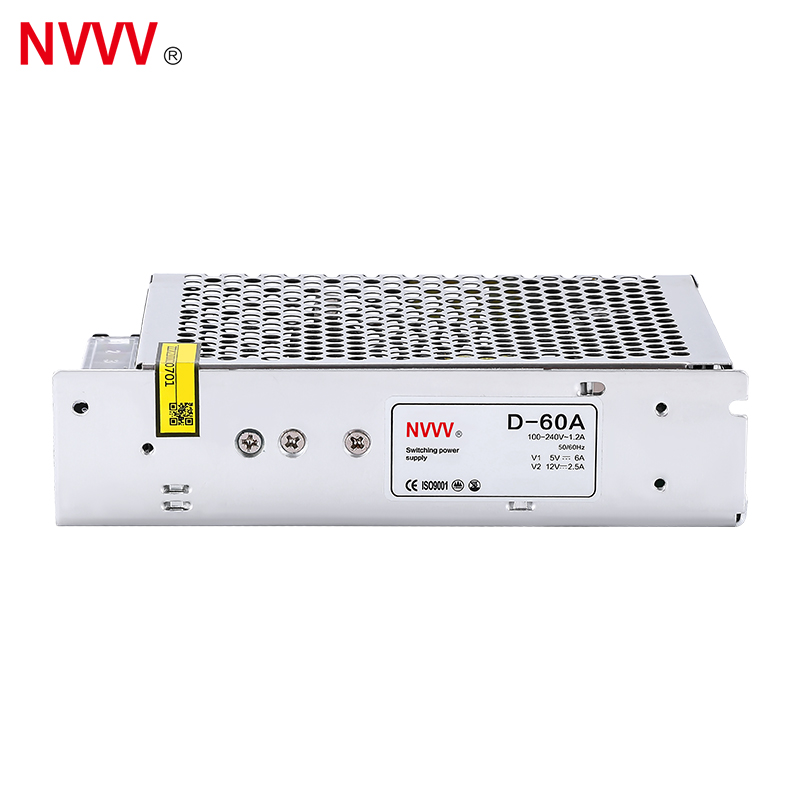

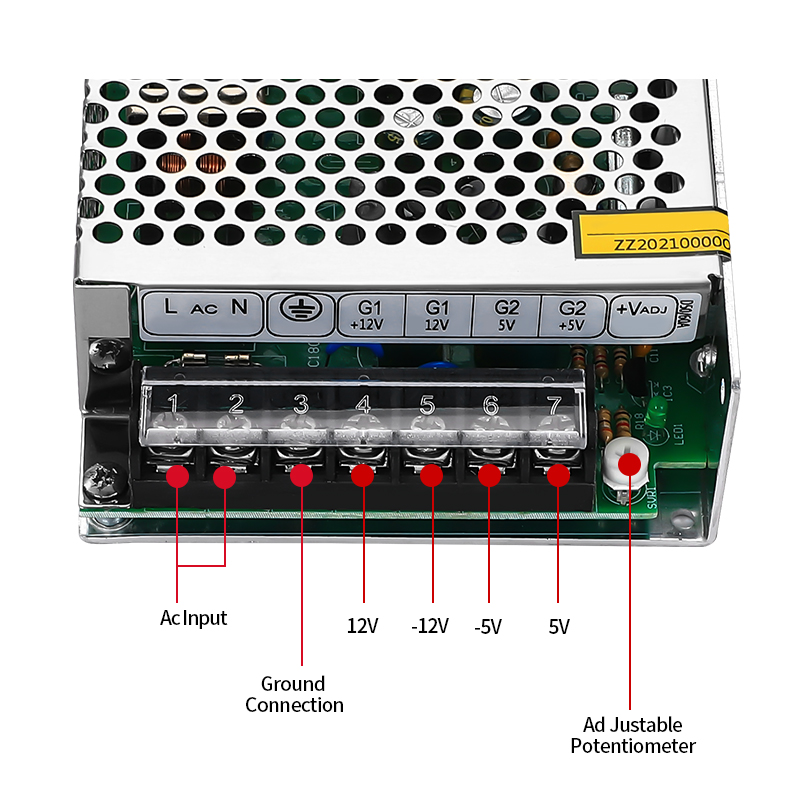

| D-60 Dual Switch Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical indicators | ||||
| Type | D-60A | D-60B | |||
| Output channel | CH1 | CH2 | CH1 | CH2 | |
| Output | DC voltage | 5V | 12V | 5V | 24V |
| Rated current | 5A | 3A | 5A | 1.5A | |
| Current range | 0.5-6A | 0.1-3.5A | 0.5-6A | 0.1-2A | |
| Rated power | 61W | 61W | |||
| Ripple and noise | <50mV | <120mV | <50mV | <120mV | |
| Voltage accuracy | ±2% | ±10% | ±2% | ±10% | |
| Output voltage range | CH1: ±10% | ||||
| Load / Linear regulation | Load: ±1.5% Linear: ±0.5% |
Load: ±3.0% Linear: ±1.0% |
Load: ±1.5% Linear: ±0.5% |
Load: ±3.0% Linear: ±1.0% |
|
| Input | Voltage range | 85-132VAC / 176-264VAC 47Hz ~ 63Hz (254VDC ~ 370VDC) | |||
| Efficiency (typical) | >78% | >81% | |||
| Working current | <1.1A 110VAC / <0.65A 220VAC | ||||
| Impulse current | 110VAC 18A, 220VAC 45A | ||||
| Start, rise, hold time | 500ms, 30ms, 50ms (220VAC) / 1200ms, 30ms, 10ms (115VAC) | ||||
| Protect | Overload protection | ≥105% - 150% type: constant current output VO drop to underpressure point cut off output, reset: power up again | |||
| Short circuit protection | VO drop to underpressure point to close output | ||||
| Environmental | Working temp. & humidity | -10℃ ~ +50℃; 20% ~ 90% RH | |||
| Storage temp. & humidity | -20℃ ~ +85℃; 10% ~ 95% RH | ||||
| Safety | Withstand voltage | Input-Output: 1.5kVac; Input-Ground: 1.5kVac; Output-Ground: 0.5kvac for 1 minute | |||
| Leakage current | <1mA / 220VAC | ||||
| Isolation resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | ||||
| Other | Size | 159 * 98 * 38mm | |||
| Net / Gross weight | 440g / 470g | ||||
