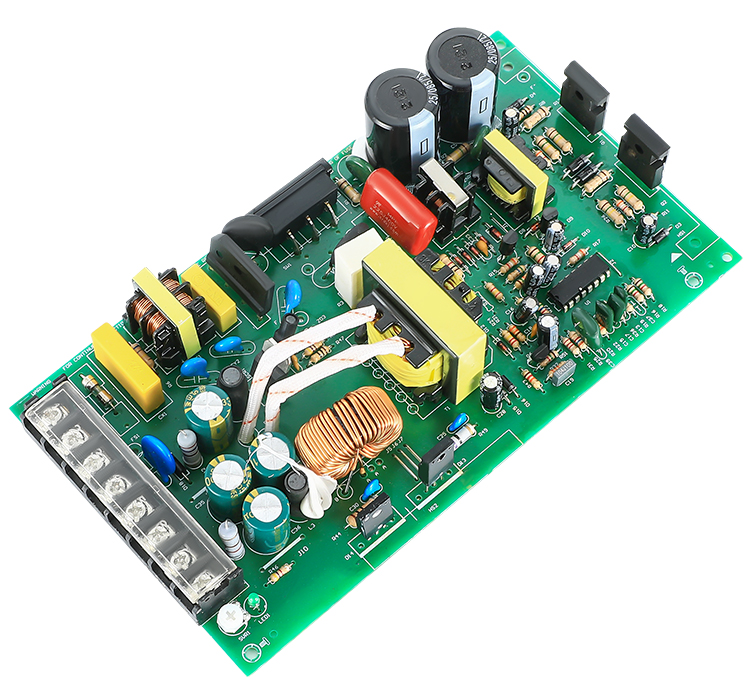

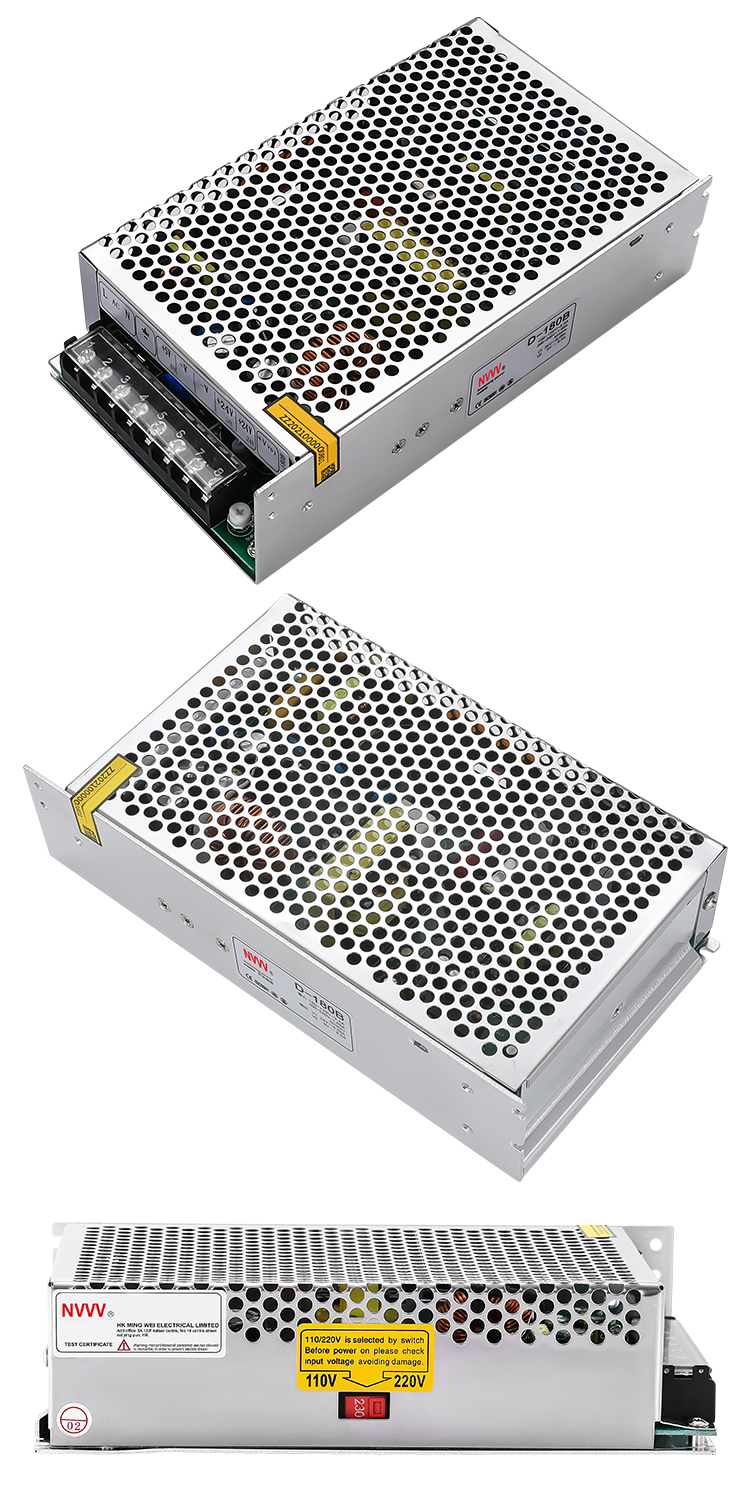

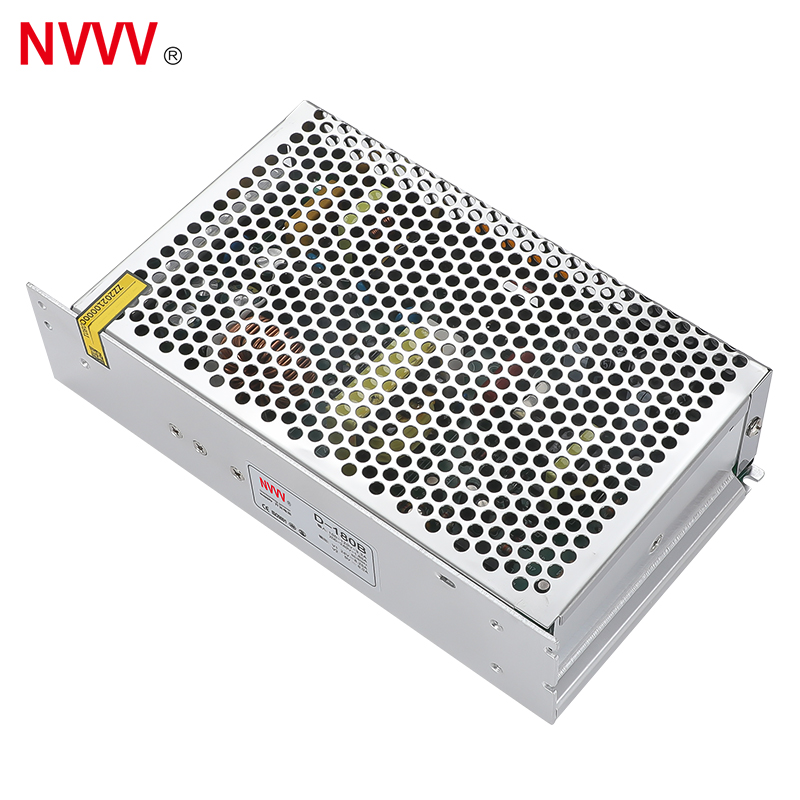

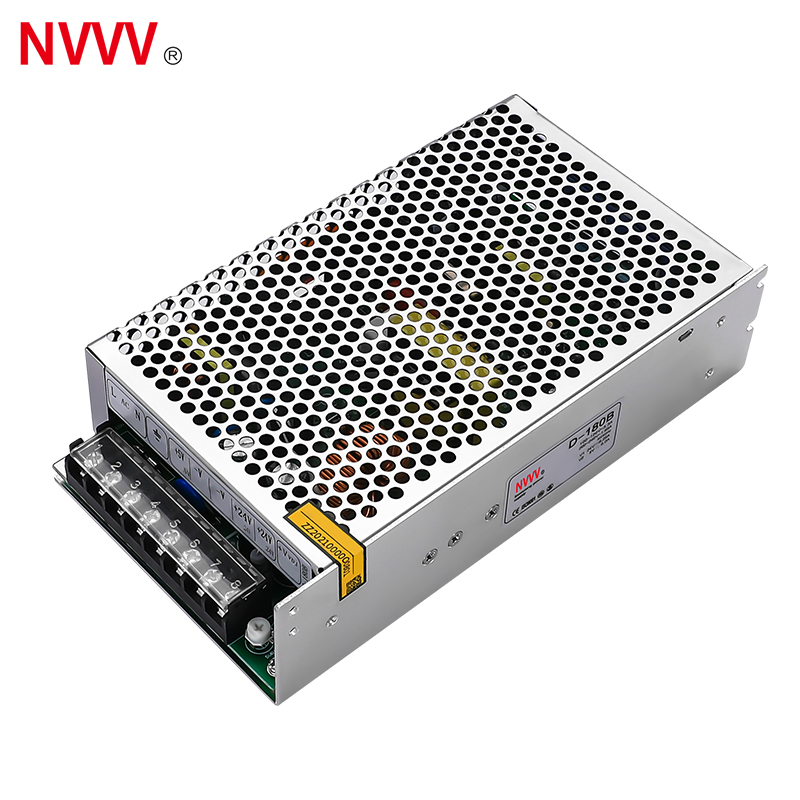

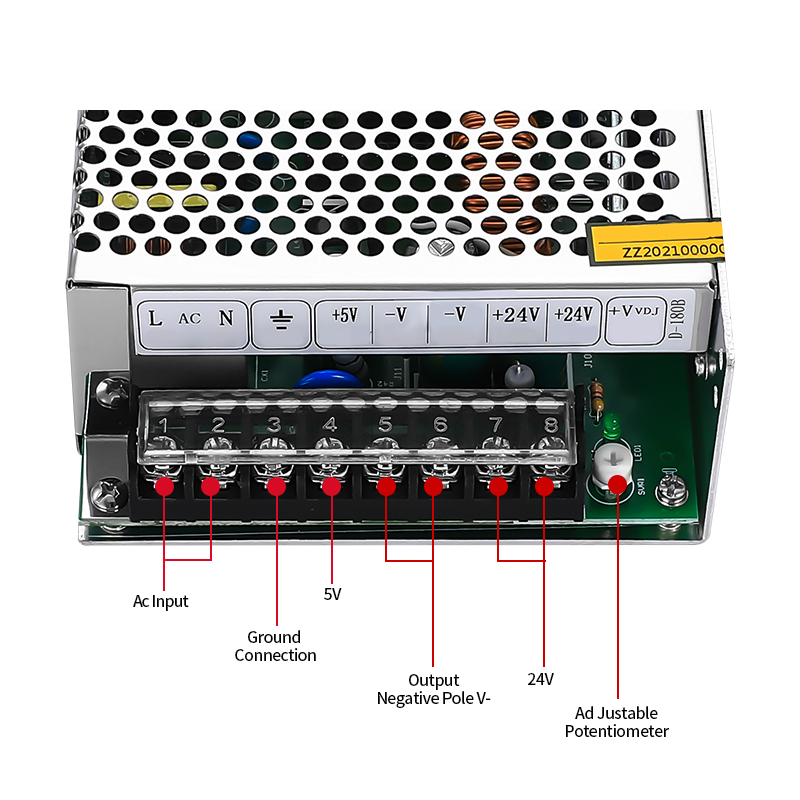

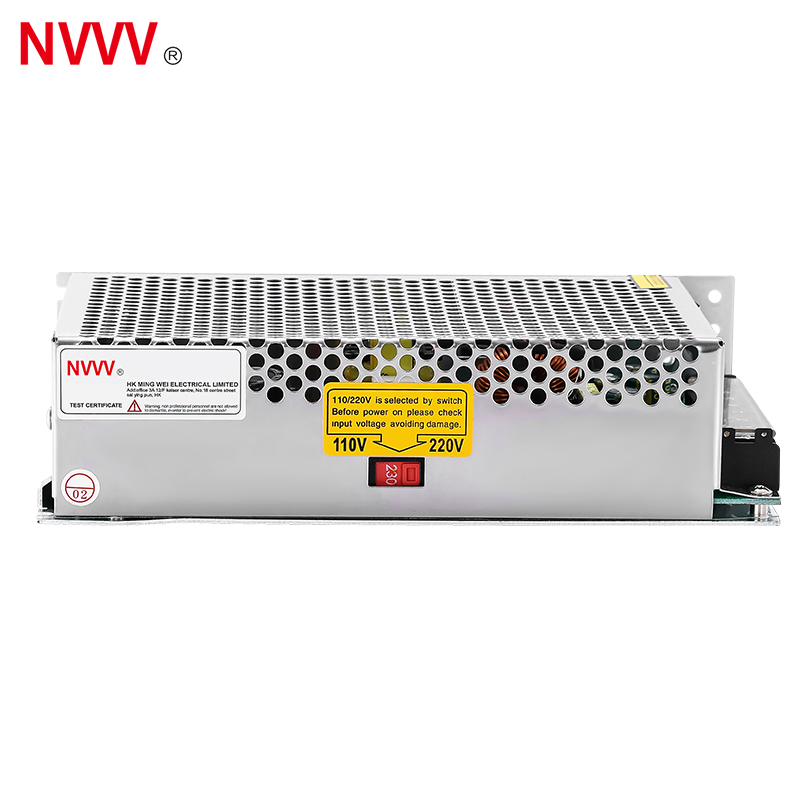

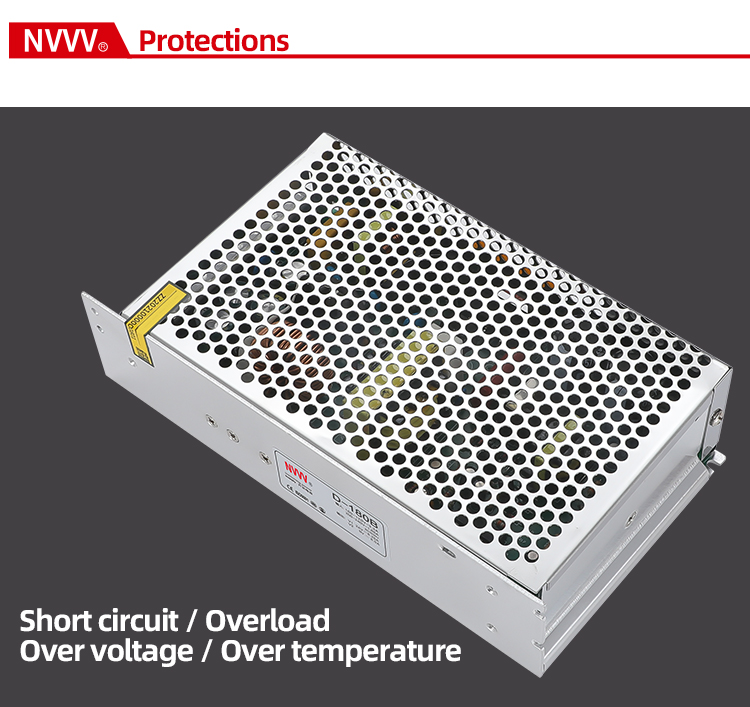

| D-180 Dual Switch Power Supply | ||||||||
|---|---|---|---|---|---|---|---|---|
| Project | Technical indicators | |||||||
| Type | D-180A | D-180B | D-180C | |||||
| Output channel | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | ||
| Output | DC voltage | 12V | 5V | 24V | 5V | 24V | 12V | |
| Rated current | 12.5A | 6A | 6.25A | 6A | 5A | 5A | ||
| Current range | 1-15A | 0.5-7A | 1-7.5A | 0.5-7A | 1-7A | 0.5-6A | ||
| Rated power | 180W | 180W | 180W | |||||
| Ripple and noise ① | 120mV | 120mV | 240mV | 120mV | 240mV | 120mV | ||
| Voltage accuracy | ±2% | ±10% | ±2% | ±10% | ±1.5% | ±10% | ||
| Output voltage adjustment range | CH1: ±10% | |||||||
| Load regulation | ±1.5% | ±3.0% | ±1.5% | ±3.0% | ±1.5% | ±3.0% | ||
| Linear regulation | ±0.5% | ±1.0% | ±0.5% | ±1.0% | ±0.5% | ±1.0% | ||
| Input | Voltage range | 85-132/180-264VAC 47Hz ~ 63Hz (254VDC ~ 370VDC) | ||||||
| Efficiency (typical) ② | > 78% | > 81% | > 81% | |||||
| Working current | < 2.5A 110VAC / < 1.2A 220VAC | |||||||
| Impulse current | 110VAC 20A, 220VAC 50A | |||||||
| Start, rise, hold time | 2000ms, 30ms, 20ms : 220VAC / 1200ms, 30ms, 10ms : 115VAC | |||||||
| Protect | overload protection | ≥ 105% - 150% type: constant current output VO drop to underpressure point cut off output reset: power up again | ||||||
| Short circuit protection | VO drop to underpressure point to close output | |||||||
| Environmental | Working temp. & humidity | -10°C ~ +50°C; 20% ~ 90% RH | ||||||
| Storage temp. & humidity | -20°C ~ +85°C; 10% ~ 95% RH | |||||||
| Safety | Withstand voltage | Input output: 1.5kVac input ground: 1.5kVac output ground: 0.5kvac for 1 minute | ||||||
| Leakage current | < 2mA / 240VAC | |||||||
| Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||||

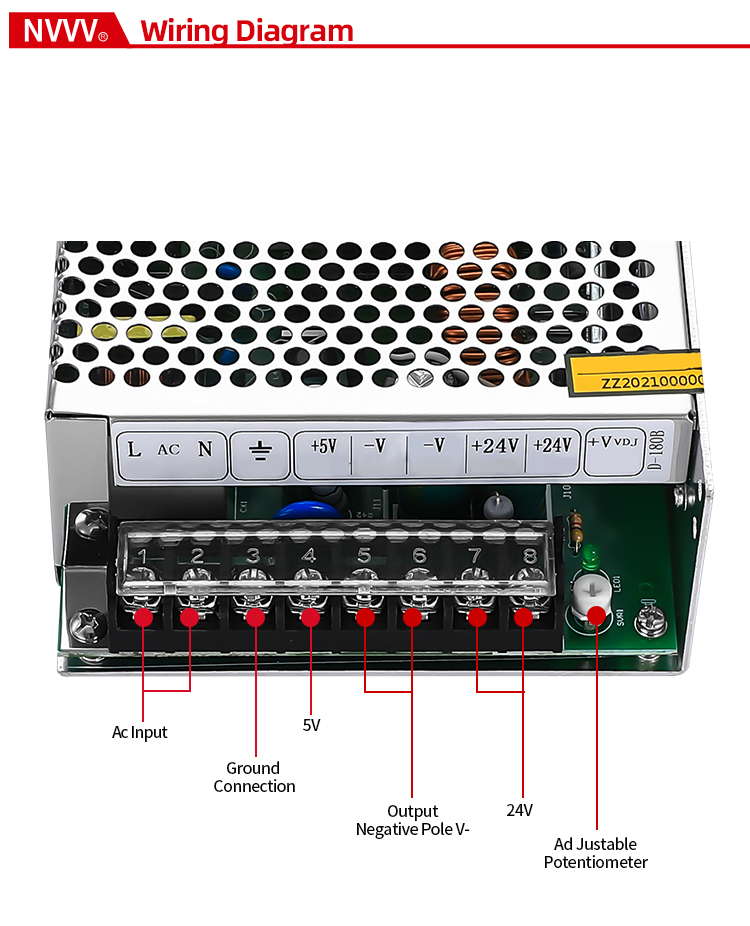

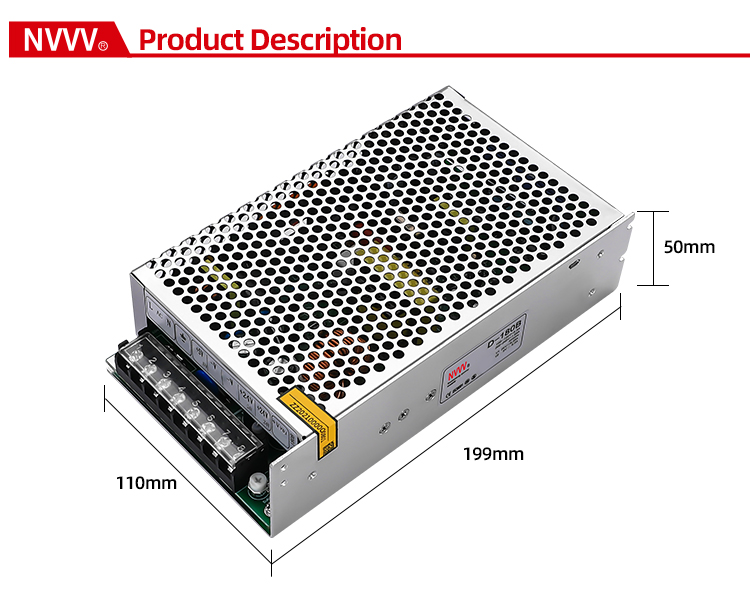

| Other | Size | 199*110*50mm | ||||||
| Net weight / Gross weight | 616.3/654.3g | |||||||
