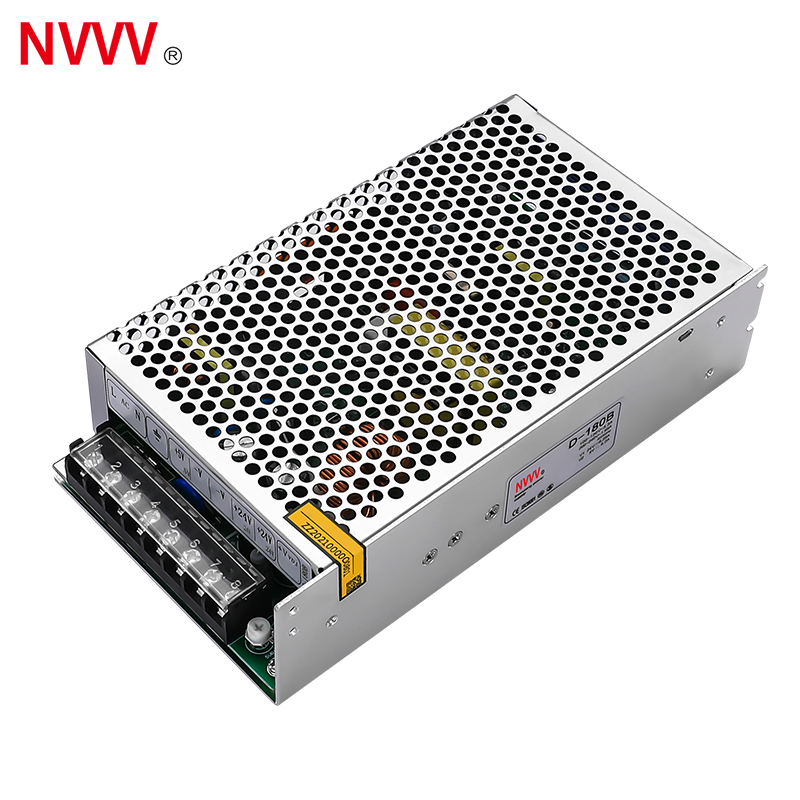

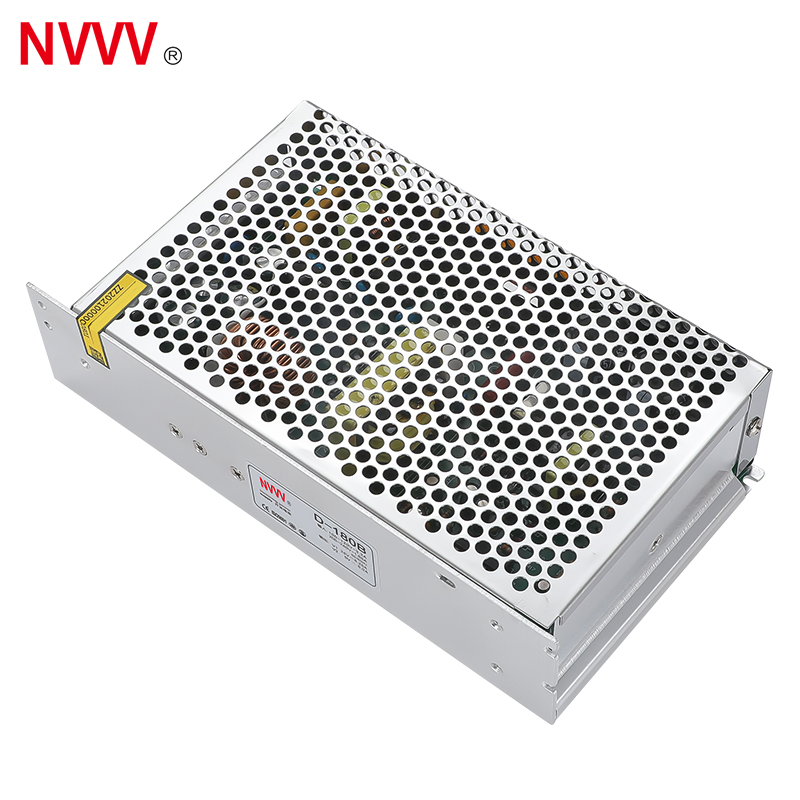

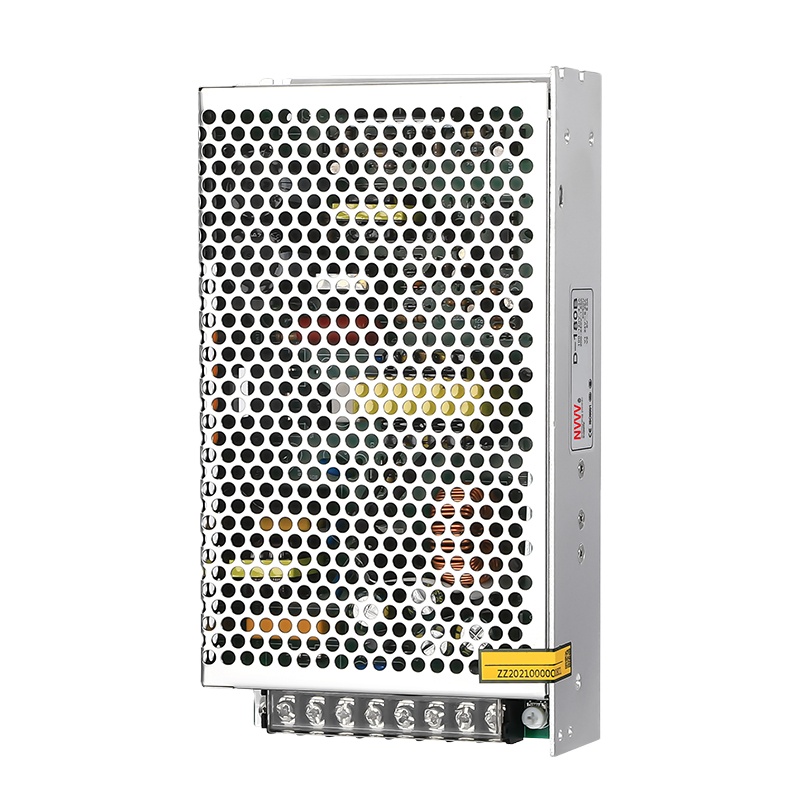

| D-180 Dual Switch Power Supply | |||||||
|---|---|---|---|---|---|---|---|
| Project | Technical Indicators | ||||||
| Type | D-180A | D-180B | D-180C | ||||

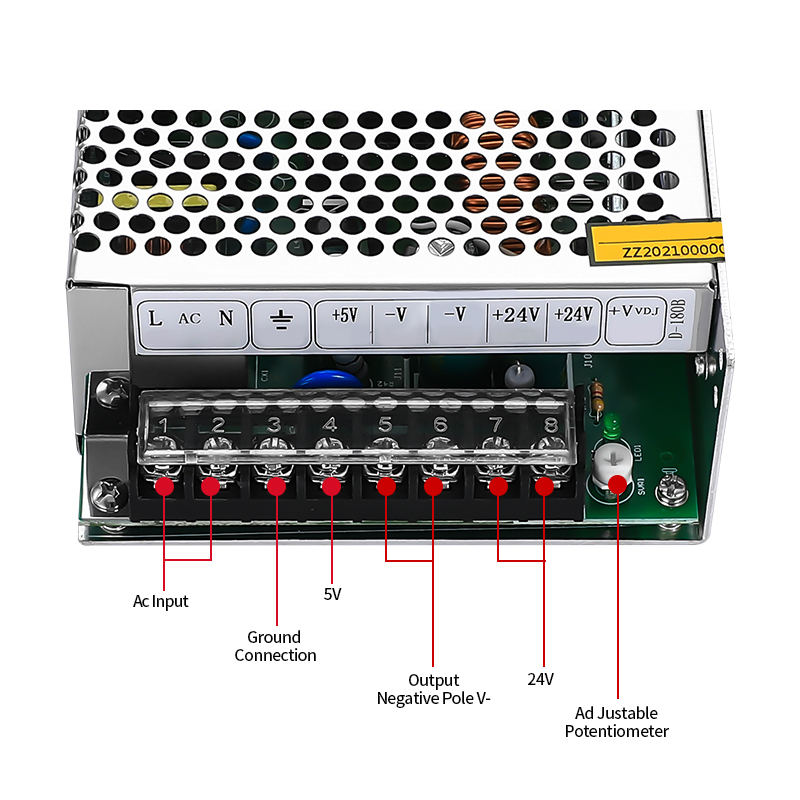

| Output Channel | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | |
| Output | DC Voltage | 12V | 5V | 24V | 5V | 24V | 12V |
| Rated Current | 12.5A | 6A | 6.25A | 6A | 5A | 5A | |
| Current Range | 1-15A | 0.5-7A | 1-7.5A | 0.5-7A | 1-7A | 0.5-6A | |
| Rated Power | 180W | 180W | 180W | ||||
| Ripple and Noise | 120mV | 120mV | 240mV | 120mV | 240mV | 120mV | |
| Voltage Accuracy | ±2% | ±10% | ±2% | ±10% | ±1.5% | ±10% | |
| Output Voltage Adj. Range | CH1: ±10% | ||||||
| Load Regulation | ±1.5% | ±3.0% | ±1.5% | ±3.0% | ±1.5% | ±3.0% | |
| Linear Regulation | ±0.5% | ±1.0% | ±0.5% | ±1.0% | ±0.5% | ±1.0% | |

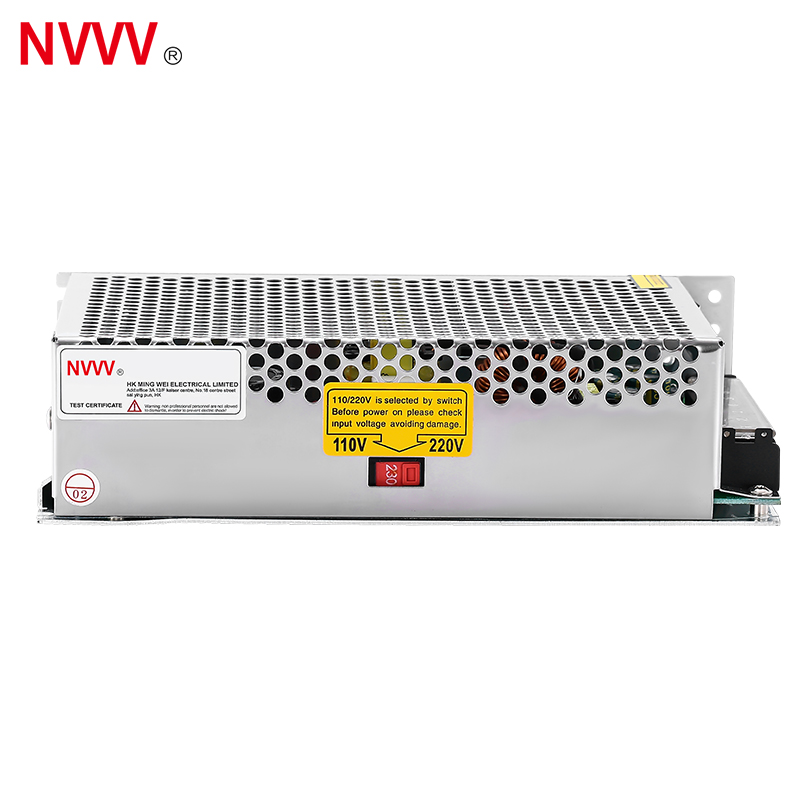

| Input | Voltage Range | 85-132/180-264VAC 47Hz～63Hz (254VDC～370VDC) | |||||
| Efficiency (typical) | >78% | >81% | >81% | ||||
| Working Current | <2.5A 110VAC / <1.2A 220VAC | ||||||
| Impulse Current | 110VAC 20A, 220VAC 50A | ||||||
| Start, Rise, Hold Time | 2000ms, 30ms, 20ms : 220VAC / 1200ms, 30ms, 10ms : 115VAC | ||||||
| Protect | Overload Protection | ≥105% - 150% type: constant current output VO drop to underpressure point cut off output reset: power up again | |||||
| Short Circuit Protection | VO drop to underpressure point to close output | ||||||
| Environmental | Working Temp & Humidity | -10℃ ~ +50℃, 20% ~ 90% RH | |||||
| Storage Temp & Humidity | -20℃ ~ +85℃, 10% ~ 95% RH | ||||||
| Safety | Withstand Voltage | Input-Output: 1.5kVac, Input-Ground: 1.5kVac, Output-Ground: 0.5kVac for 1 minute | |||||
| Leakage Current | <2mA / 240VAC | ||||||
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | ||||||
| Other | Size | 199*110*50mm | |||||
| Net/Gross Weight | 616.3/654.3g | ||||||
