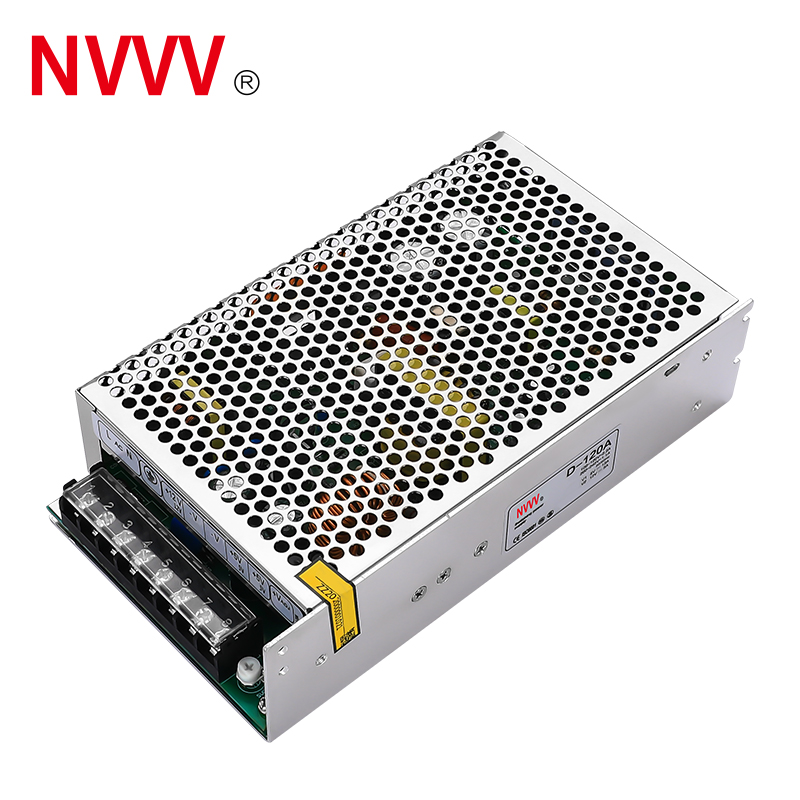

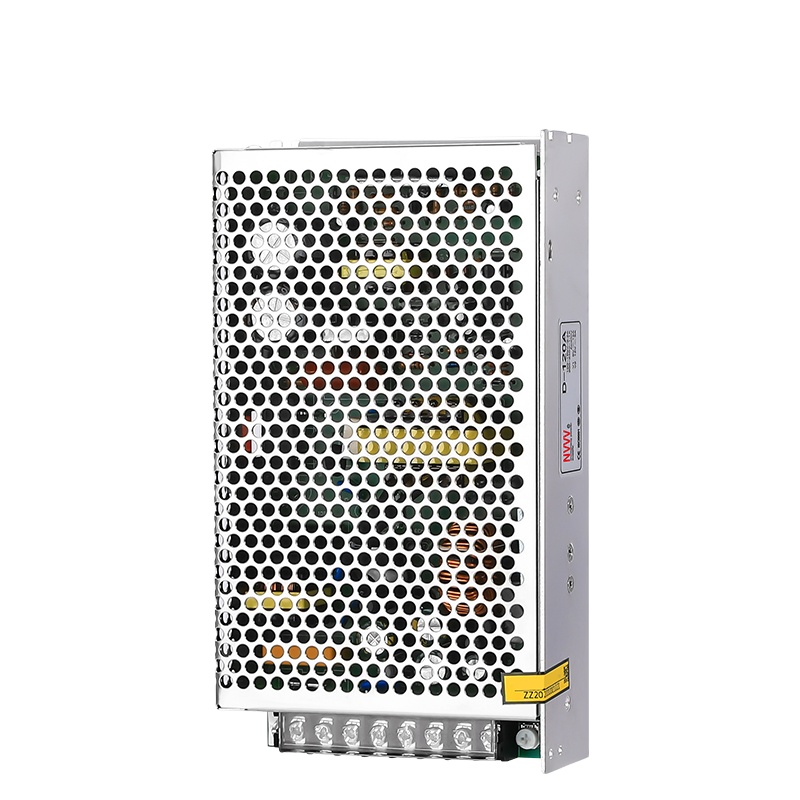

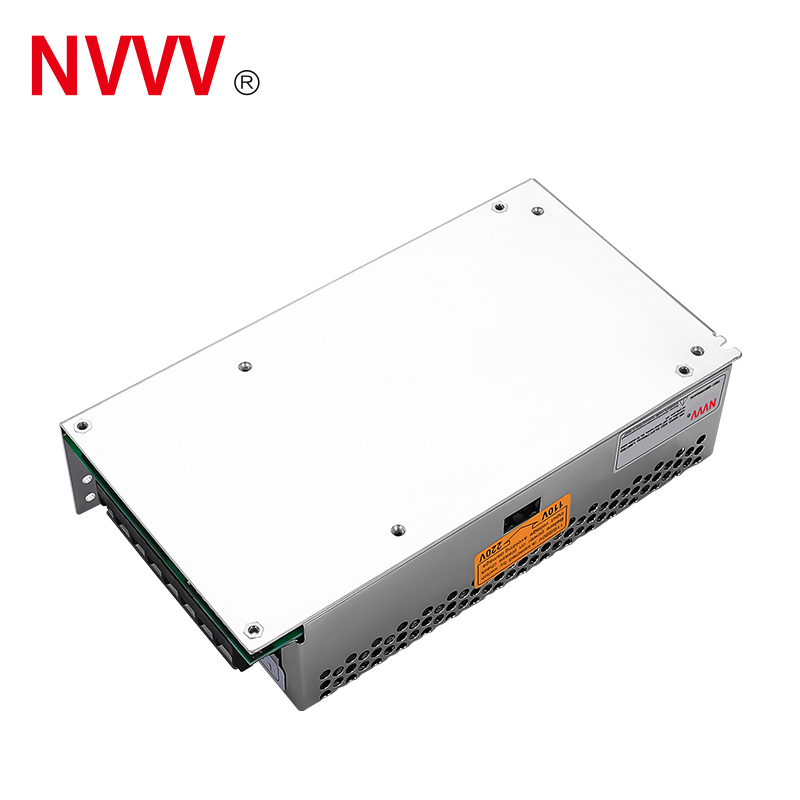

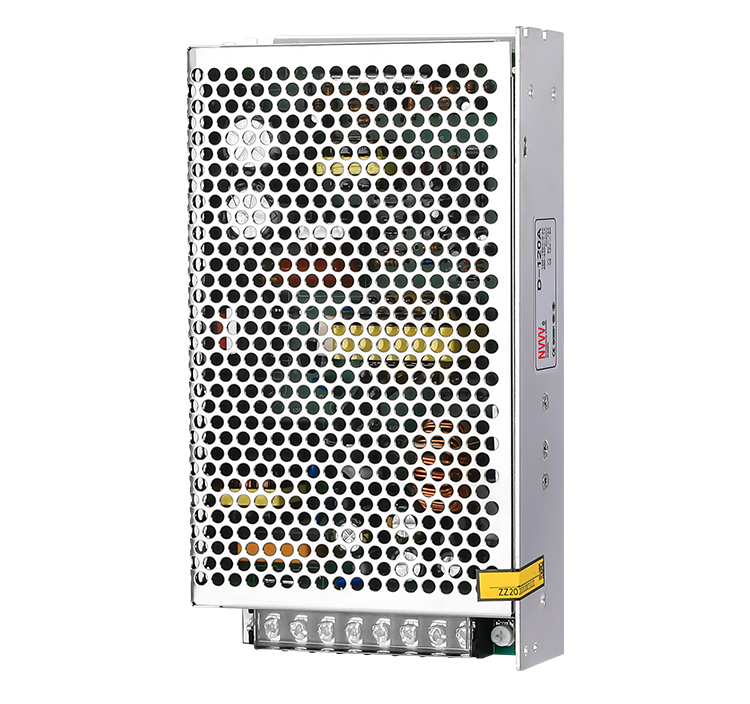

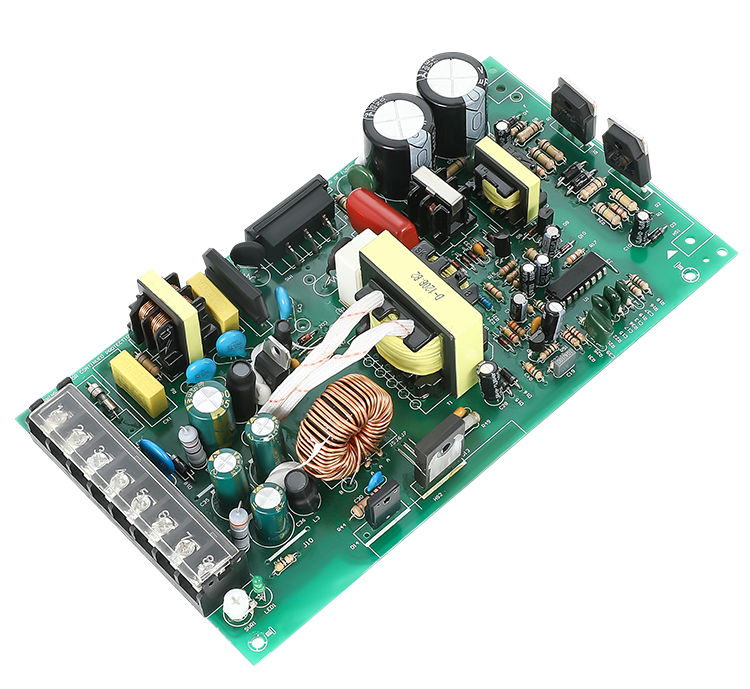

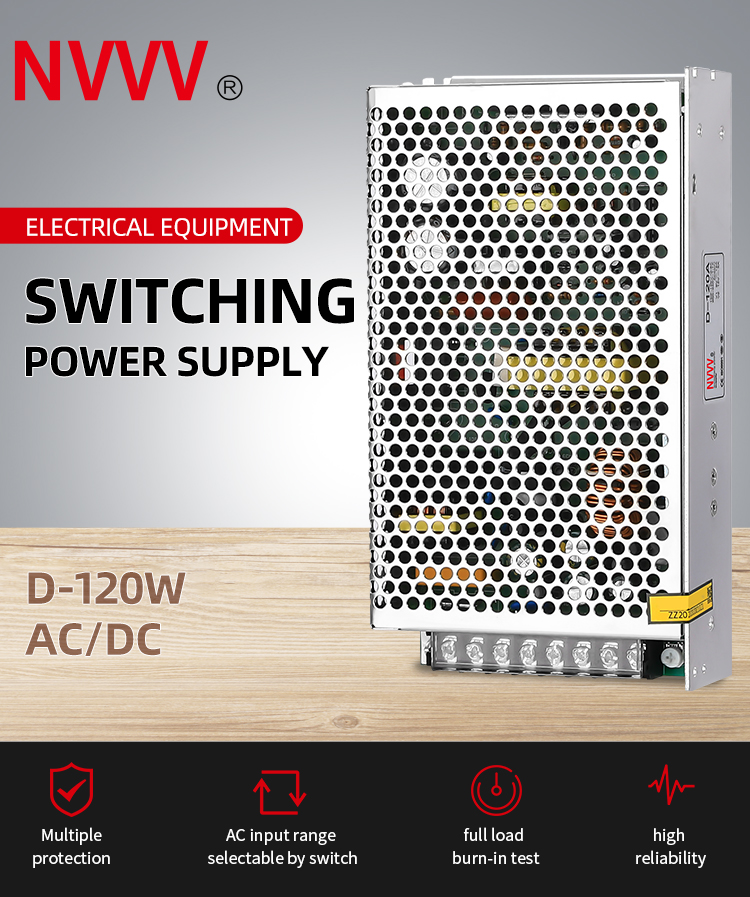

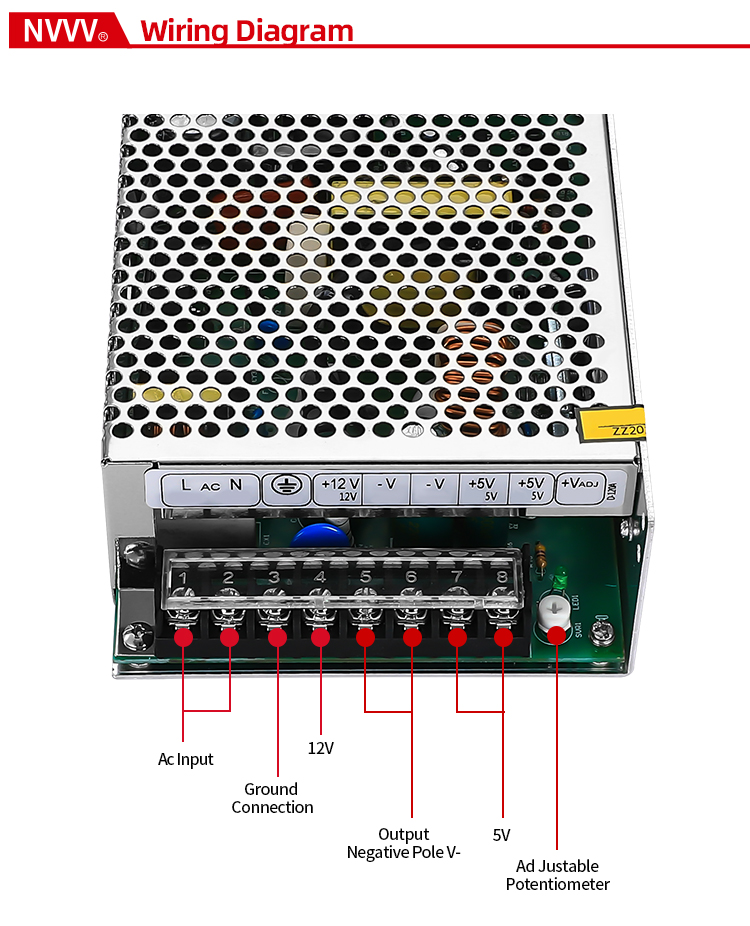

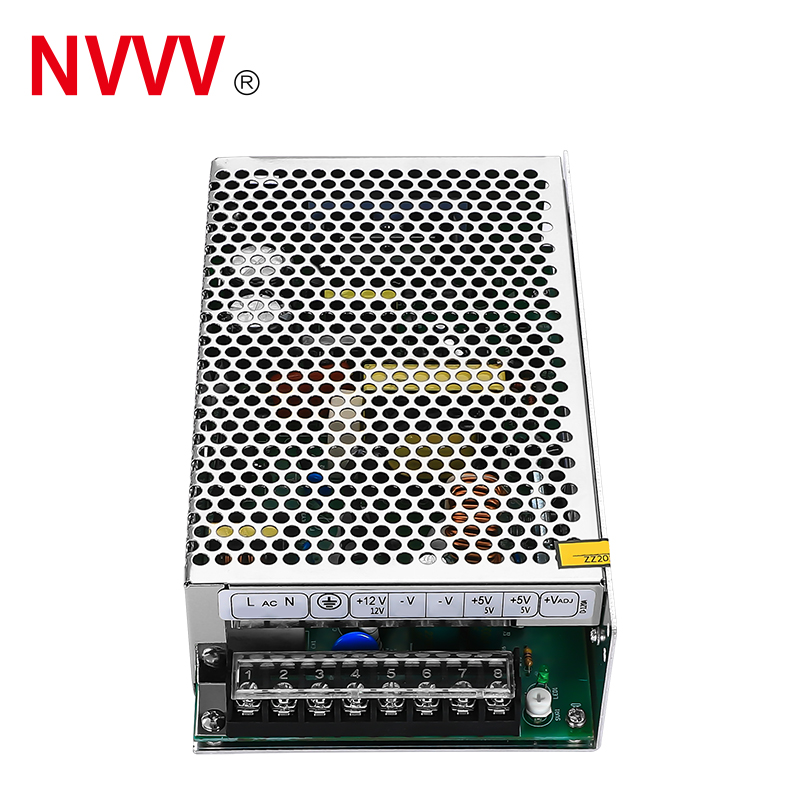

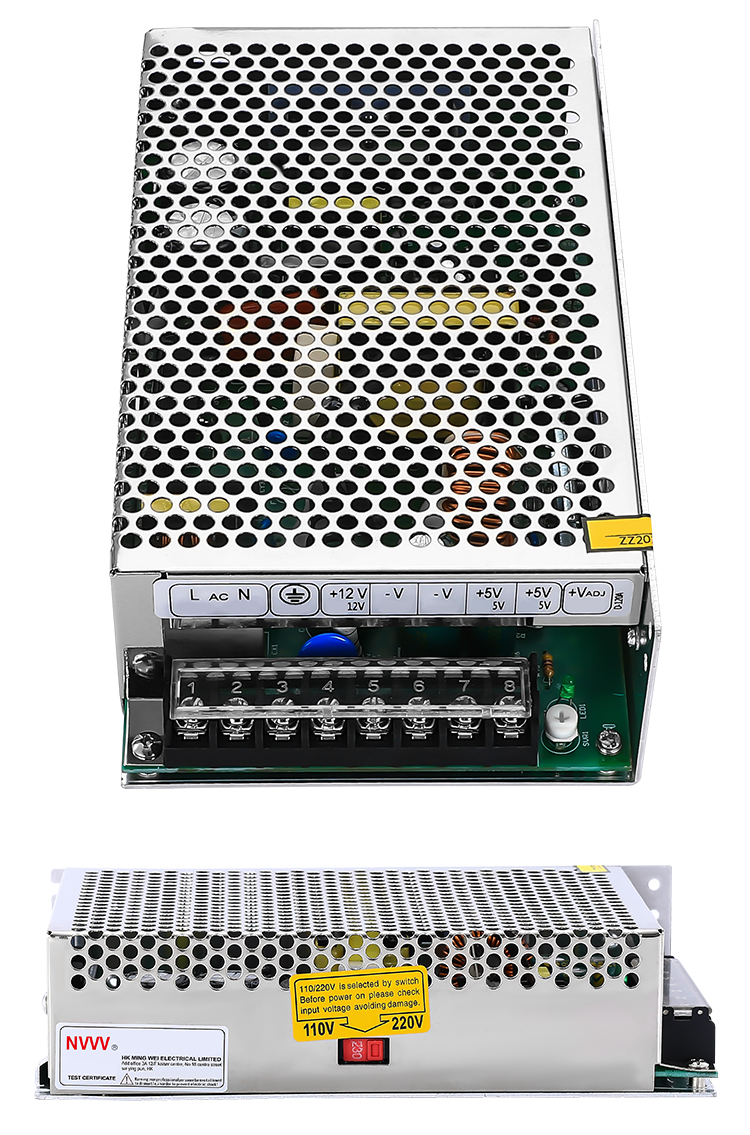

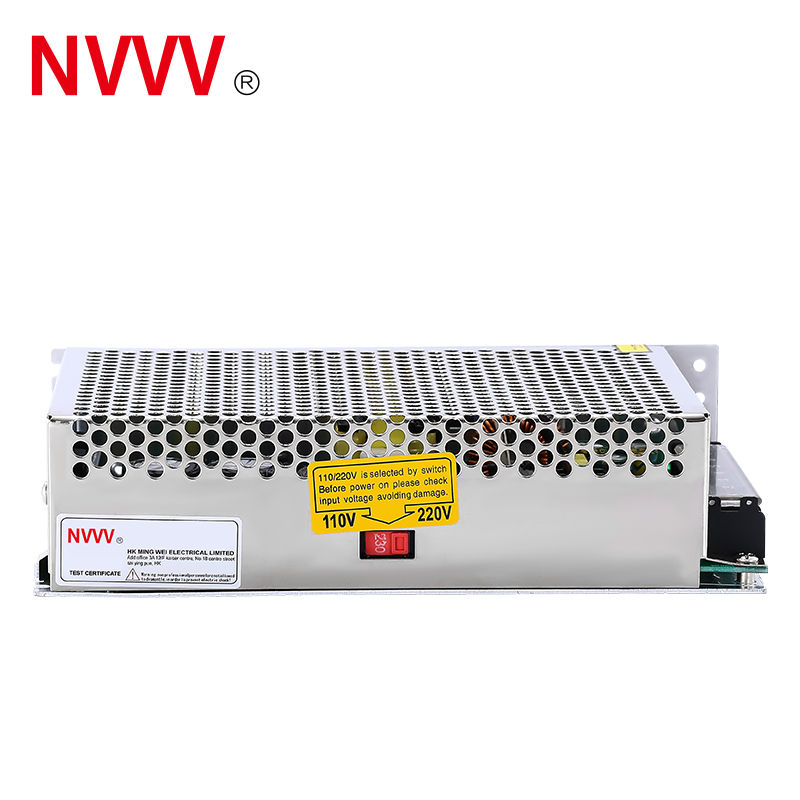

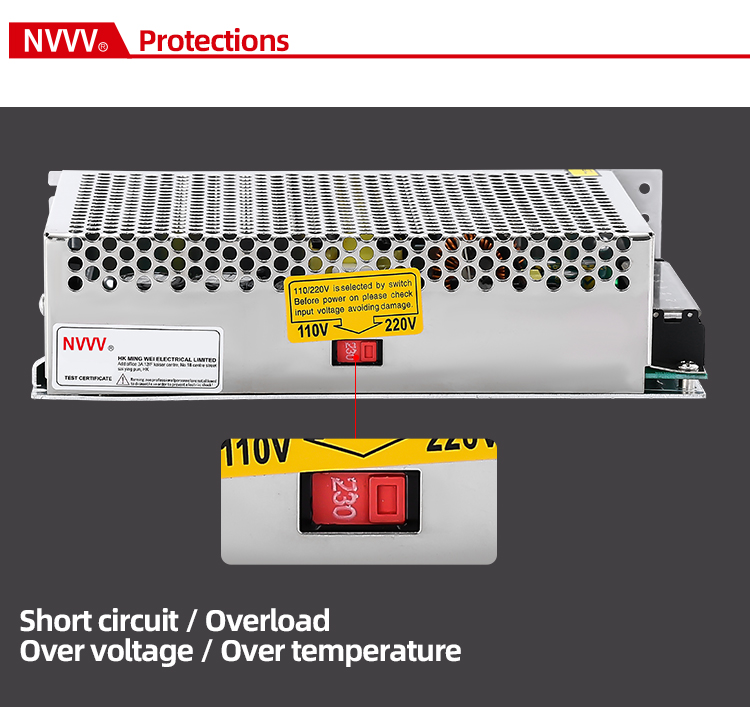

| D-120 120W Two Groups of Switching Power Supply | |||||||
|---|---|---|---|---|---|---|---|
| Project | D-120A | D-120B | D-120C | ||||
| Output | Output channel | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
| DC voltage | 5V | 12V | 5V | 24V | 12V | 24V | |
| Rated current | 12A | 5A | 12A | 2.5A | 5A | 2.5A | |
| Current range | 0.5-15A | 0.1-7A | 0.5-15A | 0.1-3.5A | 0.5-7A | 0.1-3.5A | |
| Rated power | 120W | 120W | 120W | ||||
| Ripple and noise ① | <50mV | <120mV | <50mV | <120mV | <120mV | <120mV | |
| Voltage accuracy | ±2% | ±10% | ±2% | ±10% | ±1.5% | ±10% | |
| Output voltage regulation range | CH1: ±10% | ||||||
| Load adjustment rate | ±1.5% | ±3.0% | ±1.5% | ±3.0% | ±1.5% | ±3.0% | |
| Linear adjustment rate | ±0.5% | ±1.0% | ±0.5% | ±1.0% | ±0.5% | ±1.0% | |
| Input | Overload protection | 85-132/180-264VAC 47Hz ~ 63Hz (254VDC ~ 370VDC) | |||||
| Efficiency (typical) ② | >78% | >81% | >81% | ||||
| Working current | <2.2A 110VAC <1.1A 220VAC | ||||||
| Impulse current | 110VAC 20A, 220VAC 50A | ||||||
| Start, rise, hold time | 2000ms, 30ms, 20ms : 220VAC / 1200ms, 30ms, 10ms : 115VAC | ||||||
| Protect | Overload protection | 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | |||||
| Short circuit protection | +VO drops to undervoltage point, close output | ||||||
| Environment | Working temp. and humidity | -10℃ ~ +50℃; 20% ~ 90% RH | |||||
| Storage temp. and humidity | -20℃ ~ +85℃; 10% ~ 95% RH | ||||||
| Safety | Withstand voltage | Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | |||||
| Leakage current | 5mA at 1.5kVac input-output | ||||||
| Leakage current (2) | Input output at 220VAC < 1mA | ||||||
| Isolation resistance | Input output, input shell, output shell: 500VDC / 100MΩ | ||||||

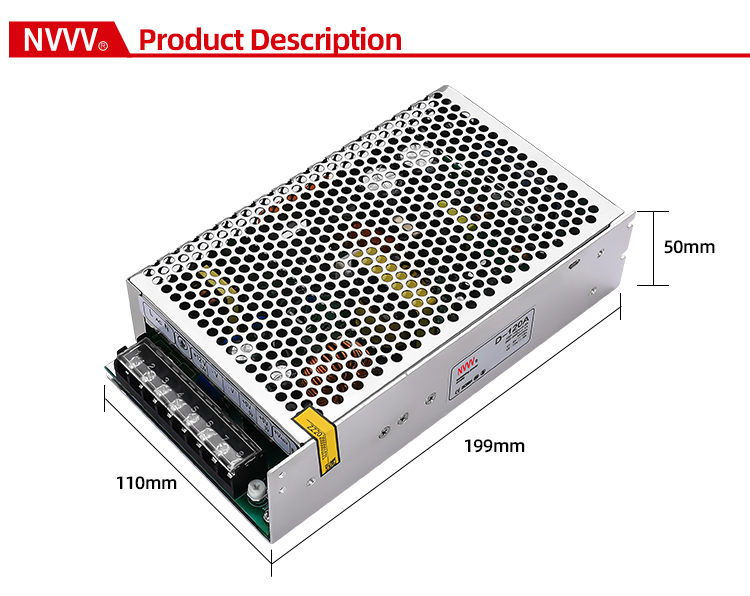

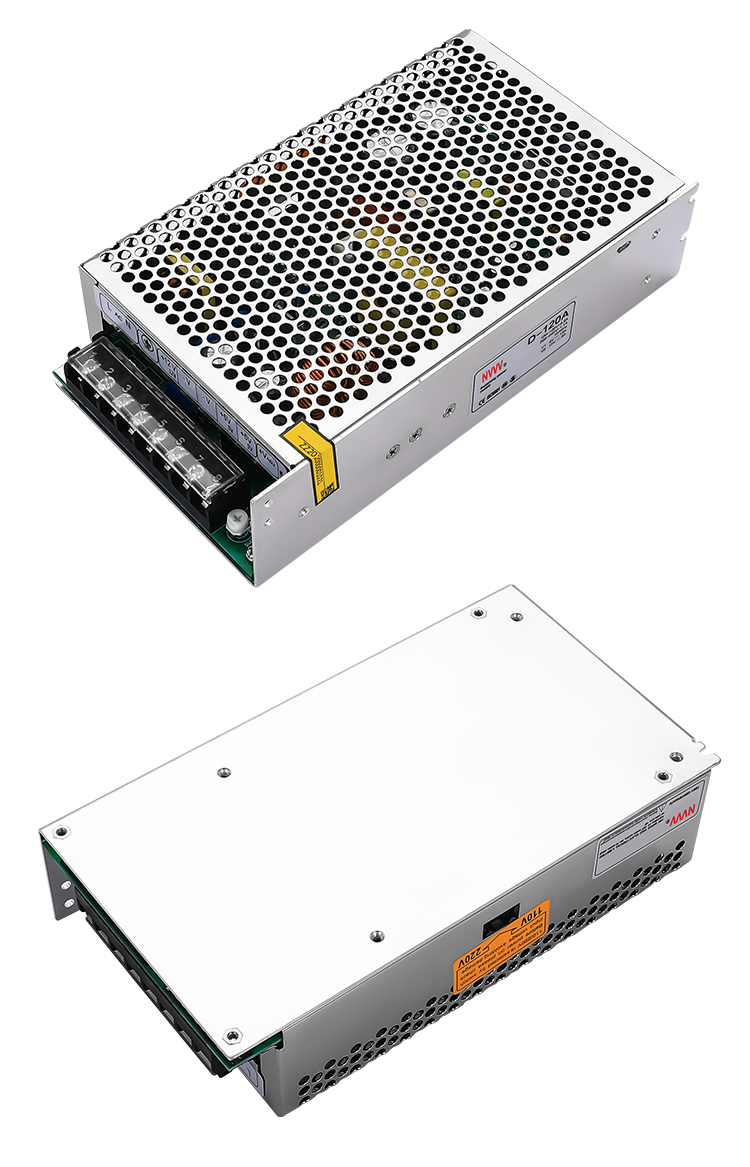

| Other | Size | 199*110*50mm | |||||
| Net weight / gross weight | 616.3/654.3g | ||||||
|
Remarks: ① Ripple and noise measurement method: use a 12" twisted pair, and connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure at 20MHz bandwidth. ② The efficiency is tested at an input voltage of 230VAC, rated load, and an ambient temperature of 25 ℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: under rated load from low voltage to high voltage test. Load regulation test method: from 0% - 100% rated load. The start-up time is measured under the cold start state. The quick and frequent switch on and off may increase the start-up time. When the operating altitude is higher than 2000m, the operating environment temperature needs to be reduced by 5 ℃ / 1000m. |
|||||||
