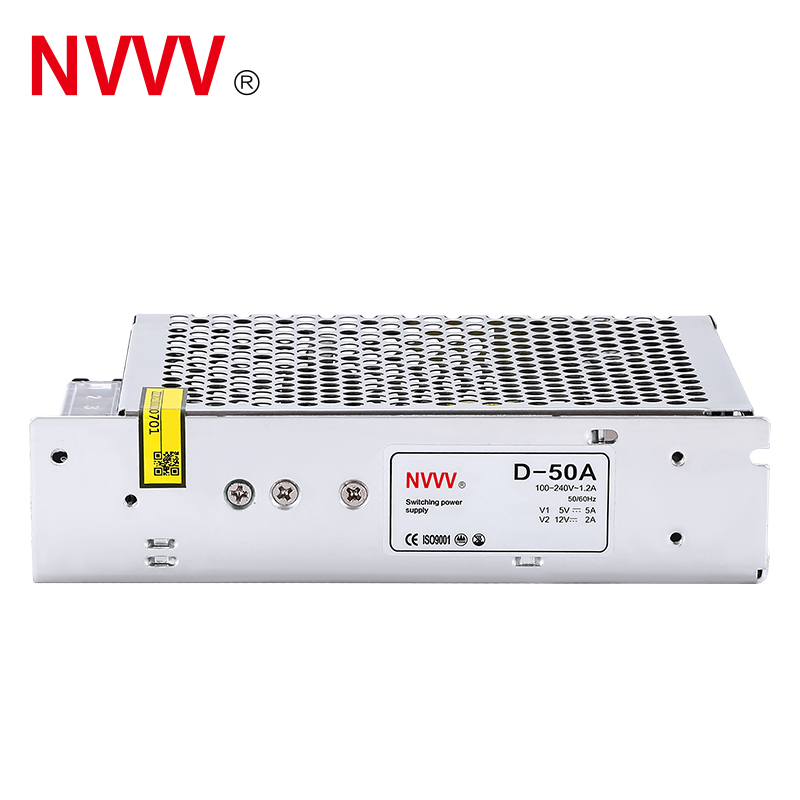

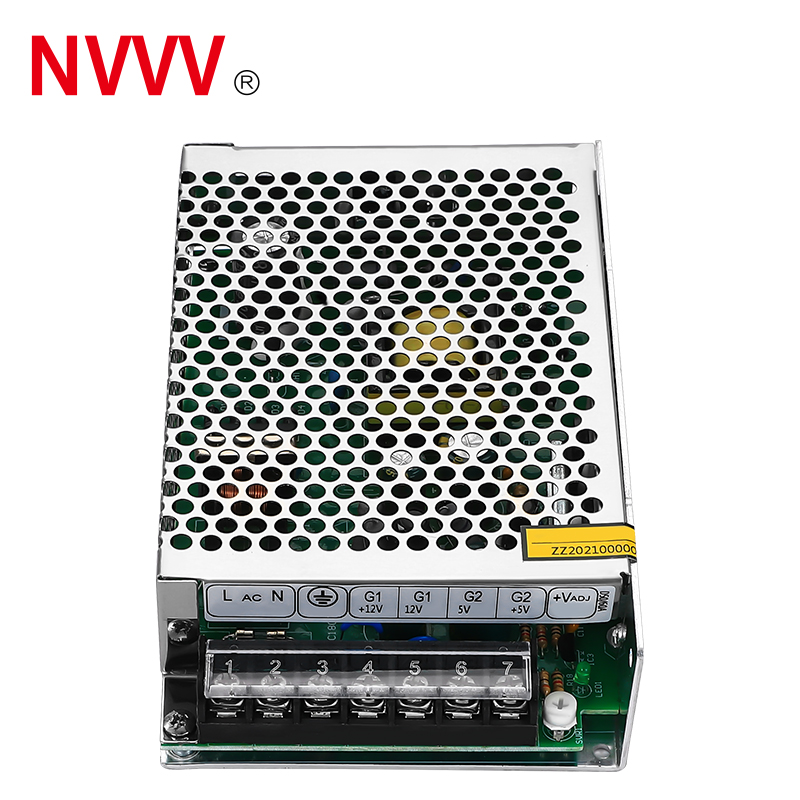

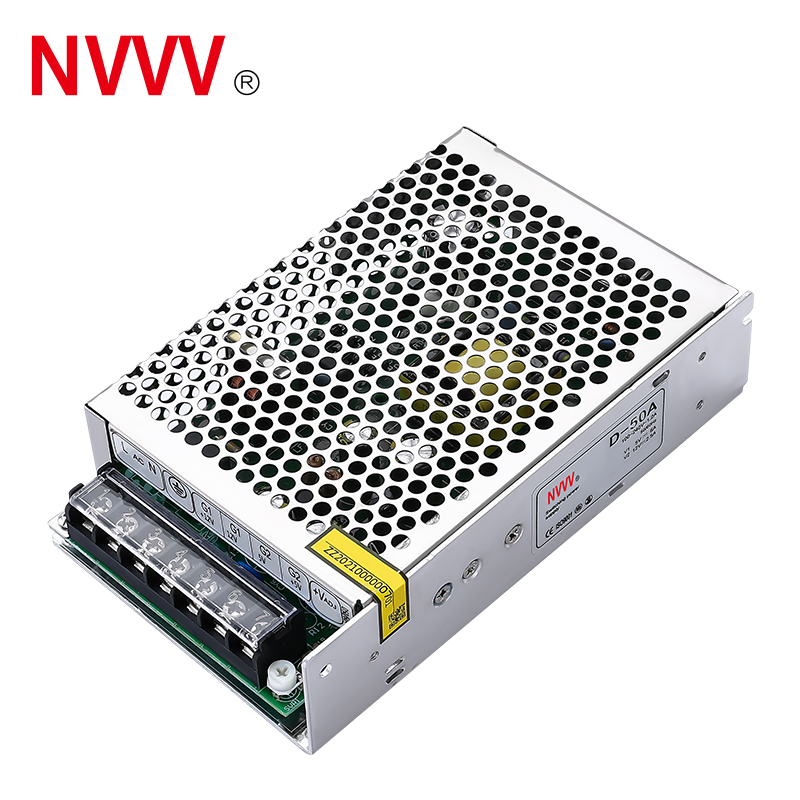

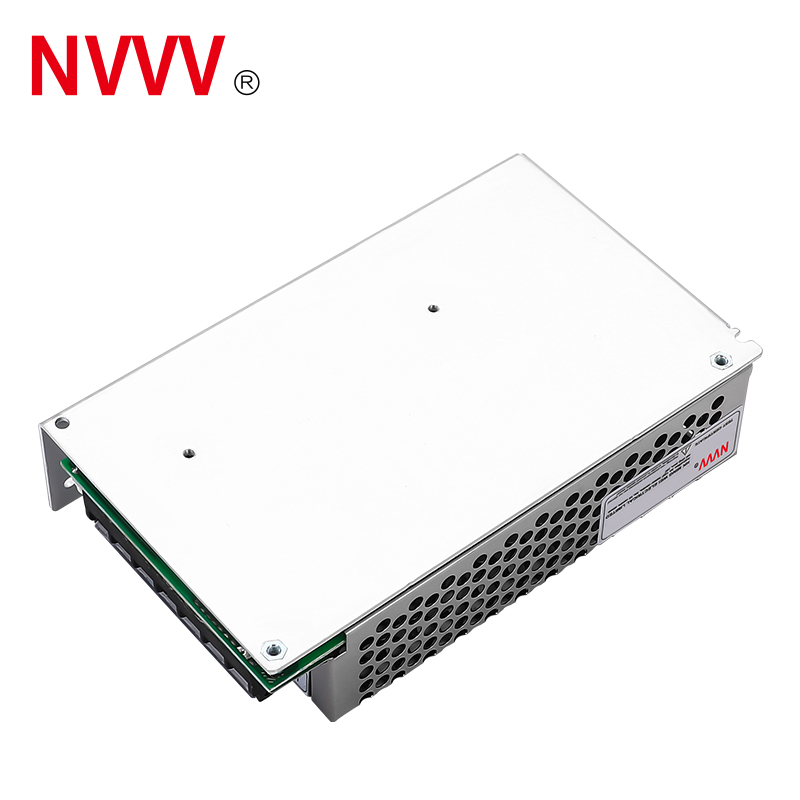

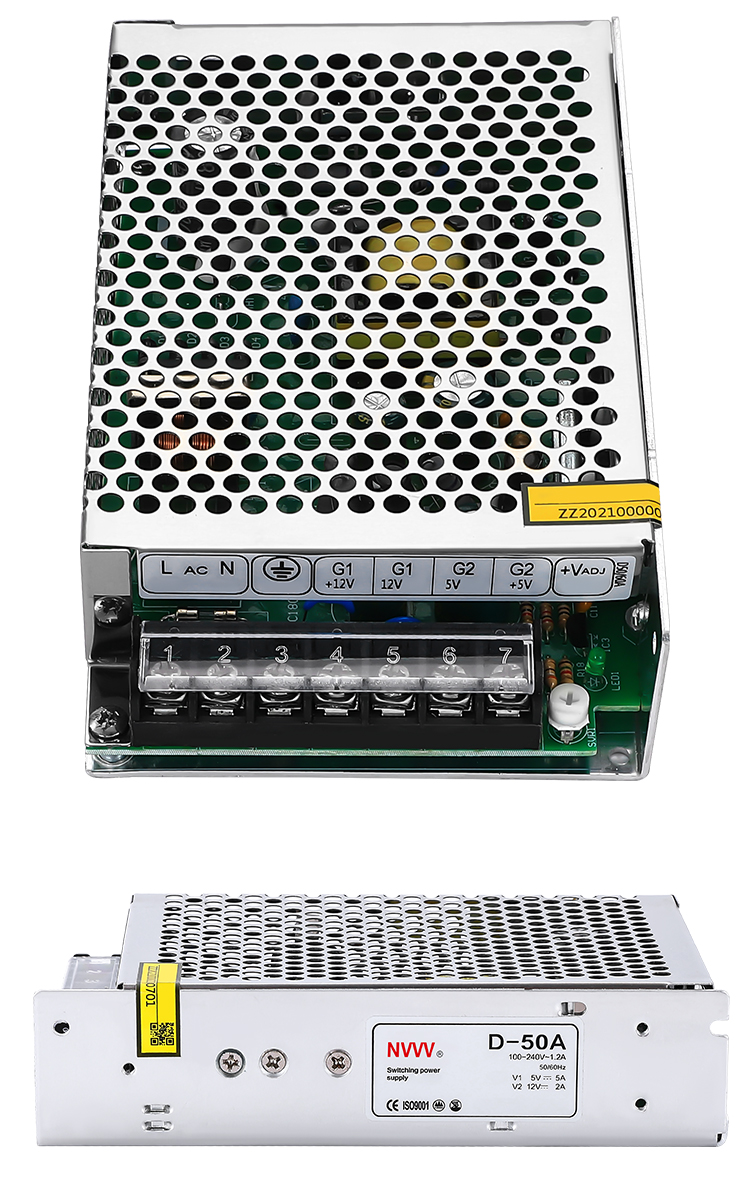

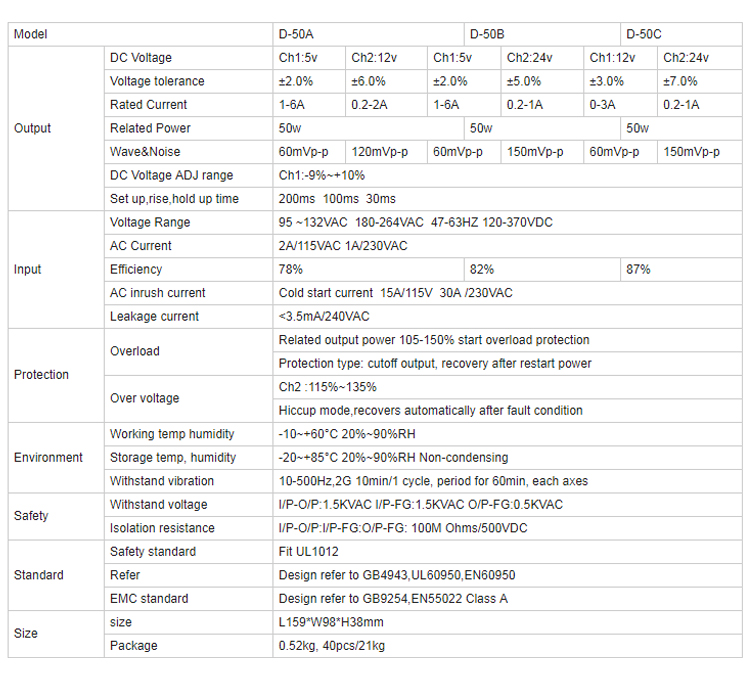

| D-50 50W Two Groups of Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | D-50A | D-50B | |||
| Output | Output channel | CH1 | CH2 | CH1 | CH2 |
| DC voltage | 5V | 12V | 5V | 24V | |
| Rated current | 5A | 2A | 5A | 1A | |
| Current range | 0.5-6A | 0.1-3A | 0.5-6A | 0.1-1.5A | |
| Rated power | 49W | 49W | |||
| Ripple and noise ① | <50mV | <120mV | <50mV | <120mV | |
| Voltage accuracy | ±2% | ±10% | ±2% | ±10% | |
| Output voltage regulation range | CH1: ±10% | ||||
| Load adjustment rate | ±1.5% | ±3.0% | ±1.5% | ±3.0% | |
| Linear adjustment rate | ±0.5% | ±1.0% | ±0.5% | ±1.0% | |
| Input | Voltage Range | 85-132VAC/176-264VAC 47Hz~63Hz (254VDC~370VDC) | |||
| Efficiency (typical) ② | >78% | >81% | |||
| Working current | <1.1A 110VAC / <0.65A 220VAC | ||||
| Impulse current | 110VAC 18A / 220VAC 45A | ||||
| Start, rise, hold time | 500ms, 30ms, 50ms: 220VAC / 1200ms, 30ms, 10ms: 115VAC | ||||

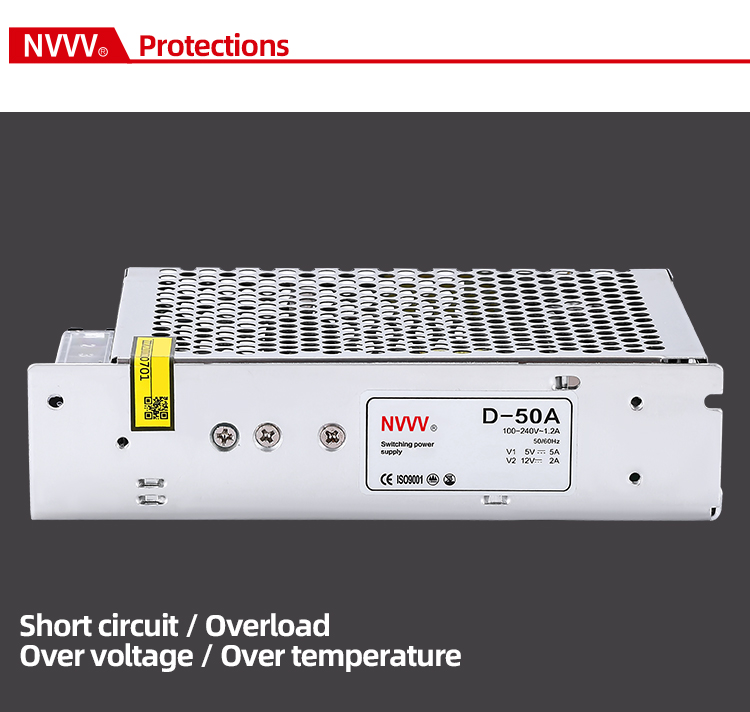

| Protect | Overload protection | 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | |||
| Short circuit protection | +VO drops to undervoltage point, close output | ||||
| Environment | Working temp. & humidity | -10℃ ~ +50℃, 20% ~ 90% RH | |||
| Storage temp. & humidity | -20℃ ~ +85℃, 10% ~ 95% RH | ||||
| Safety | Withstand voltage | Input-output: 1.5kVac, Input-shell: 1.5kVac, Output-shell: 0.5kVac for 1 minute | |||
| Leakage current | 5mA at 1.5kVac input-output | ||||
| Leakage current | Input-output at 220VAC < 1mA | ||||
| Isolation resistance | Input-output, Input-shell, Output-shell: 500VDC / 100M Ω | ||||

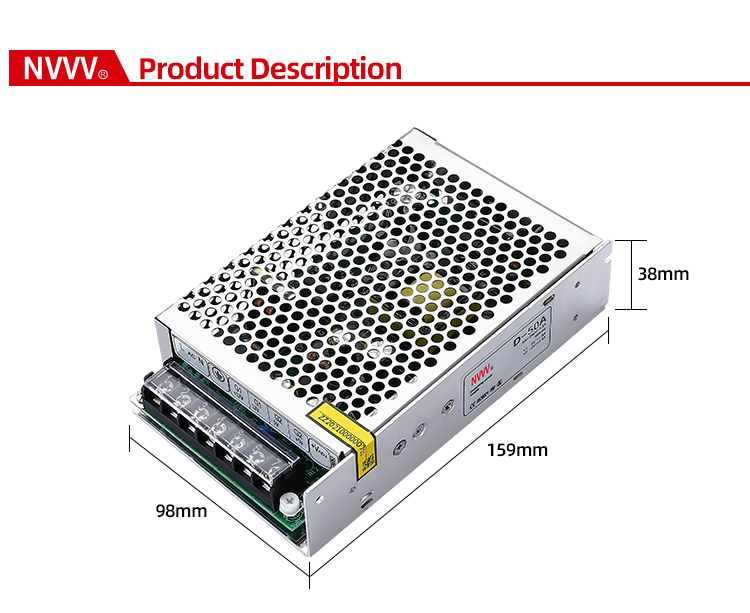

| Other | Size | 159*98*38mm | |||
| Net / Gross weight | 440/470g | ||||
| Remarks |
① Ripple and noise measurement method: use a 12" twisted pair, and connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure at 20MHz bandwidth. ② The efficiency is tested at an input voltage of 230VAC, rated load, and an ambient temperature of 25 ℃. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear regulation test method: under rated load from low voltage to high voltage test. Load regulation test method: from 0% - 100% rated load. The start-up time is measured under the cold start state. The quick and frequent switch on and off may increase the start-up time. When the operating altitude is higher than 2000m, the operating environment temperature needs to be reduced by 5 ℃ / 1000m. |
||||
Safety Packaging
A: Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
A: We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item.
A: Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
A: Our MOQ is low. For sample checking, 30 pieces are available.
A: We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
A: Yes, we offer a warranty on all products. The warranty period details are based on the specific item.
