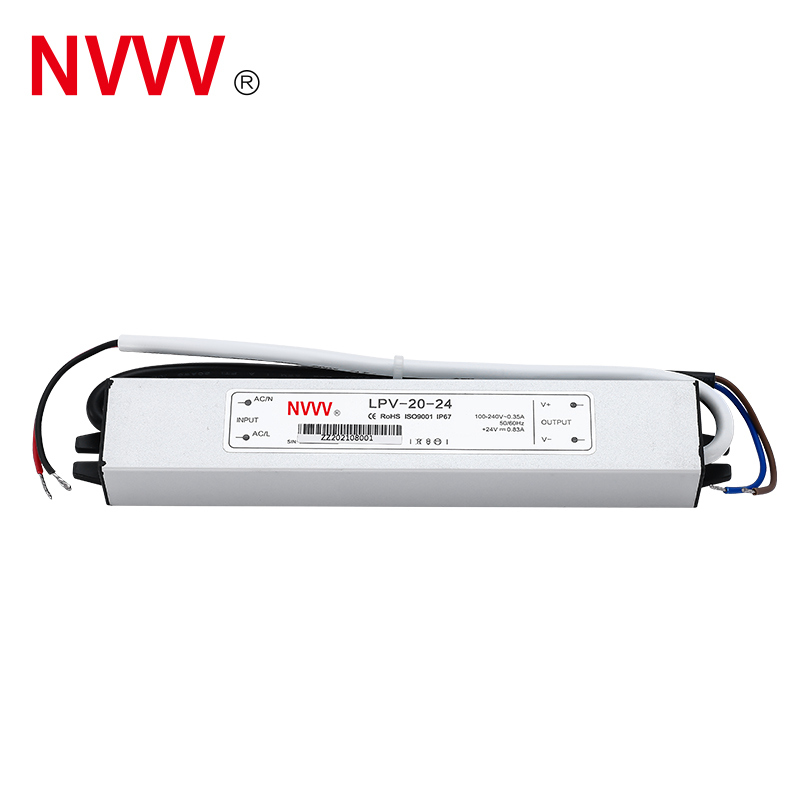

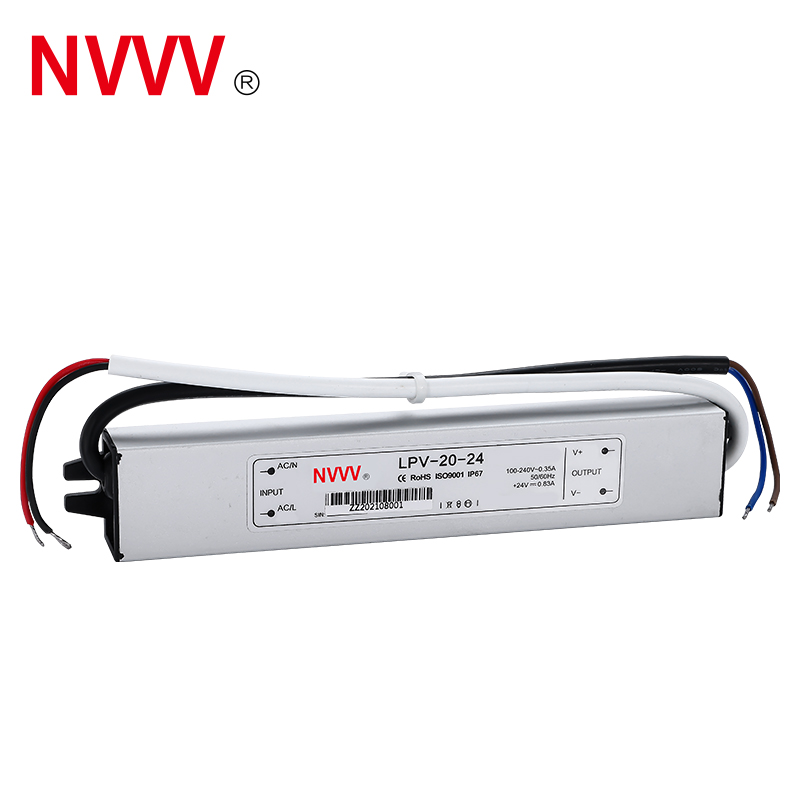

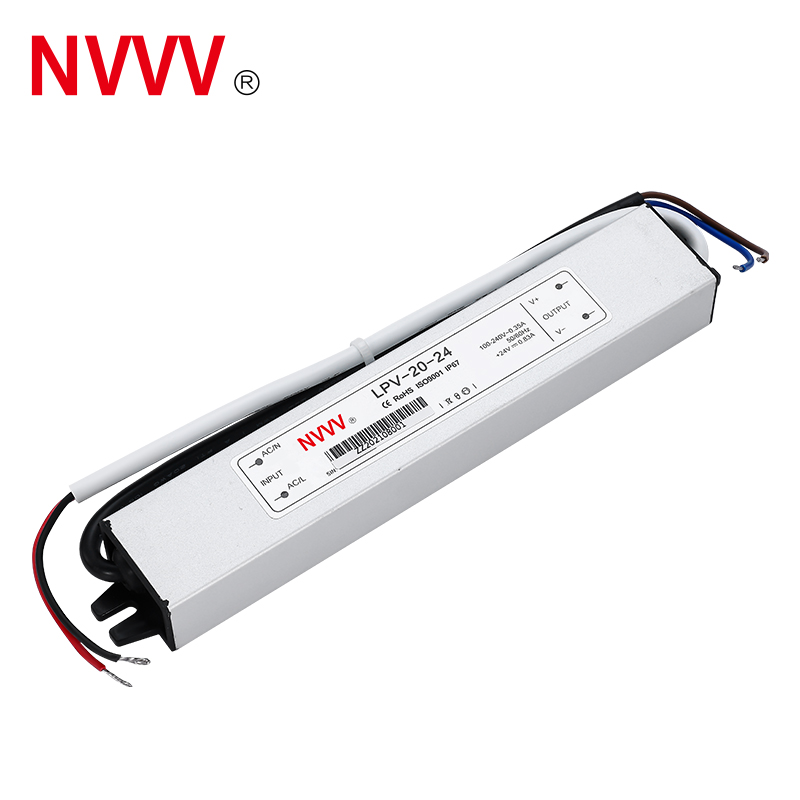

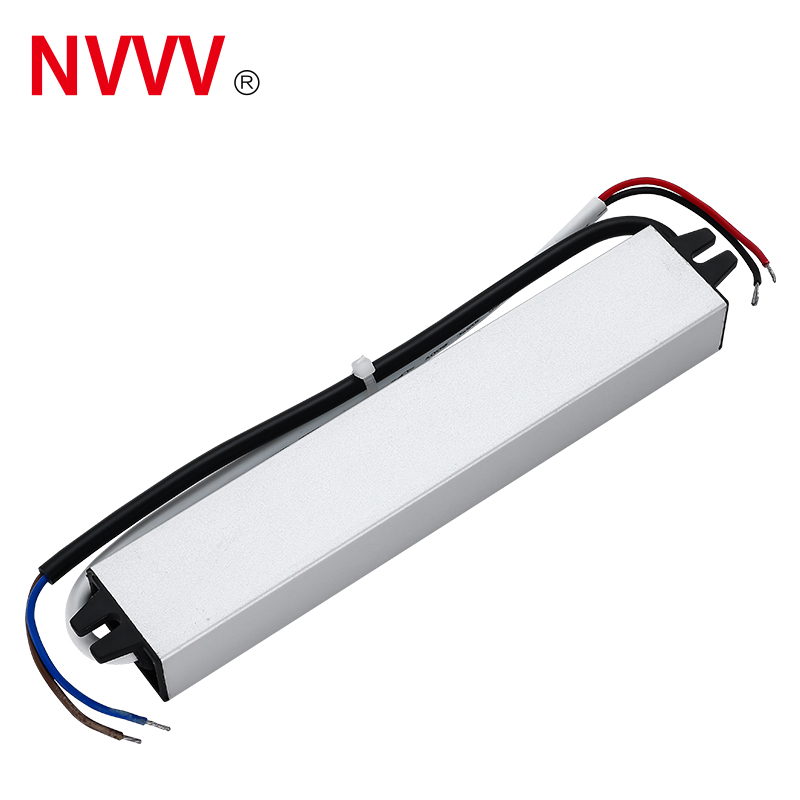

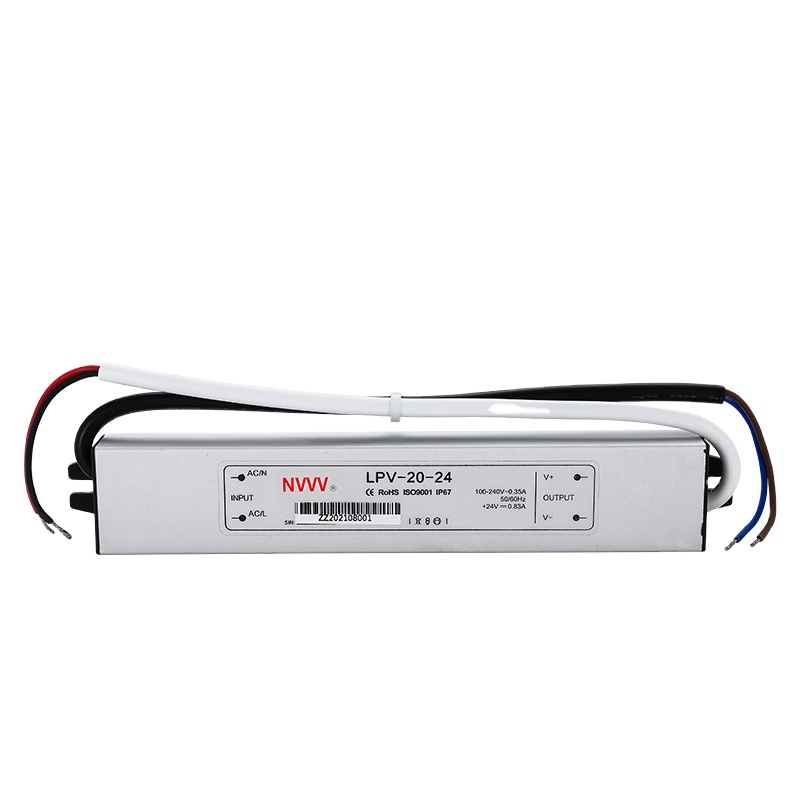

| LPV-20 20W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Technical Index | ||
| Output | DC Voltage | 12V | 24V |
| Rated Current | 1.67A | 0.84A | |
| Rated Power | 20W | 20.2W | |
| Ripple and Noise | < 120mV | < 150mV | |
| Voltage Accuracy | ±5% | ||
| Load Adjustment Rate | ±2% | ||
| Linear Adjustment Rate | ±1% | ||
| Starting & Rising Time | 500ms, 20ms, 16ms (115VAC) / 500ms, 20ms, 50ms (230VAC) | ||
| Input | Voltage Range / Frequency | 90-264VAC, 47Hz~63Hz; 127VDC~370VDC | |
| Efficiency (Typical) | > 81% | > 83% | |
| Working Current | 0.55A / 110VAC, 0.35A / 230VAC | ||
| Impulse Current | 220VAC: 60A | ||
| Protect | Overload Protection | 105%-135% Protection type: Hiccup mode, automatic recovery after abnormal condition is removed | |
| Overvoltage Protection | ≥ 115% - 145% Protection type: Close output, restart and automatically return to normal | ||
| Function | Working Temp. & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH | |
| Storage Temp. & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | ||
| Safety Regulations | Withstand Voltage | Input-Output: 3KVAC for 1 minute | |
| Leakage Current | Input-Shell: < 2.5mA at 240VAC | ||
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | ||
| Other | Size | 162 * 29 * 20mm | |
| Net / Gross Weight | 200g / 210g | ||
