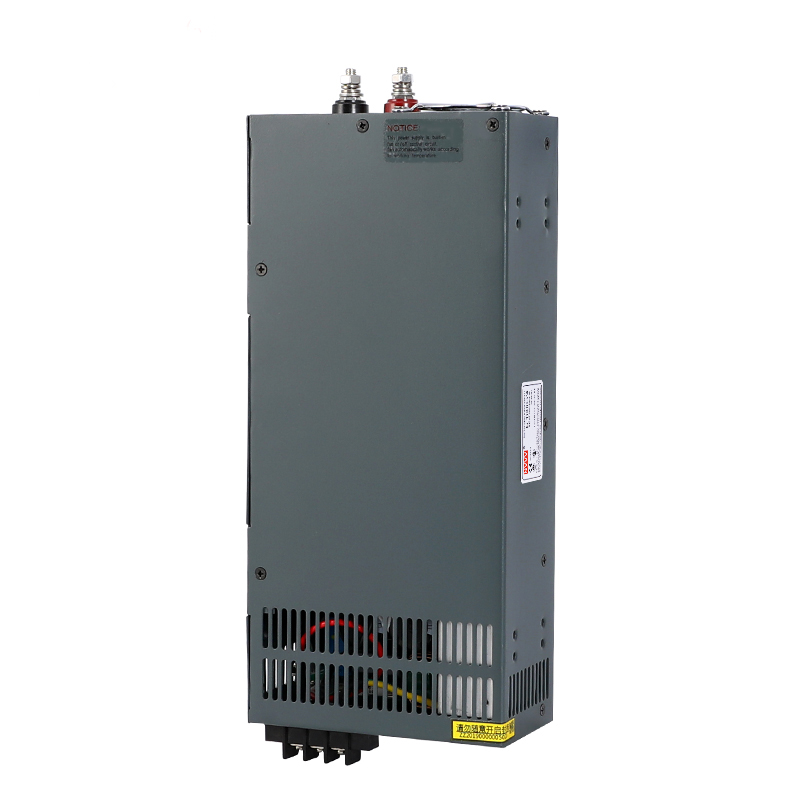

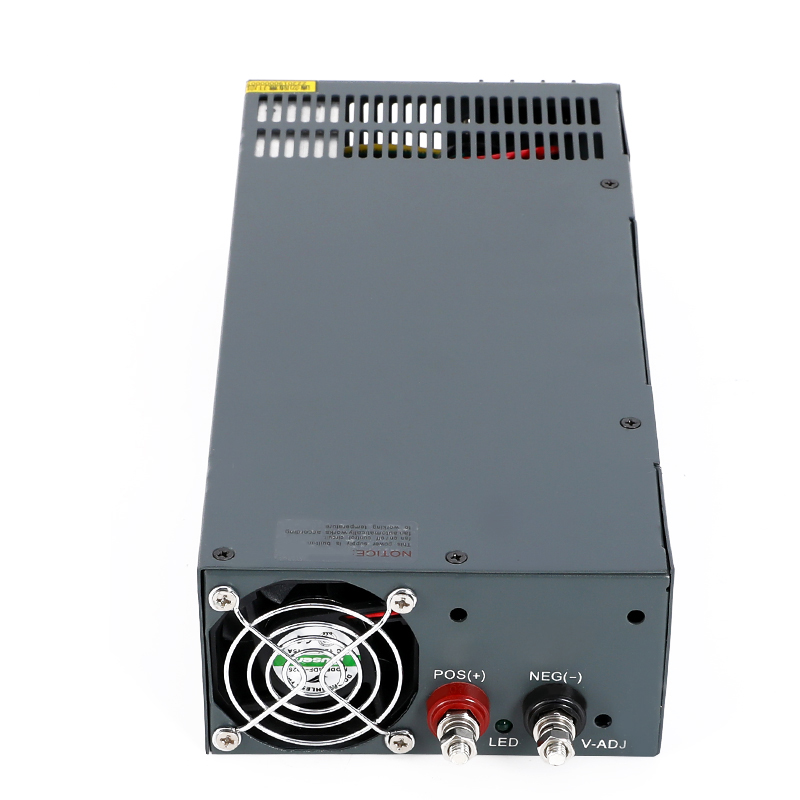

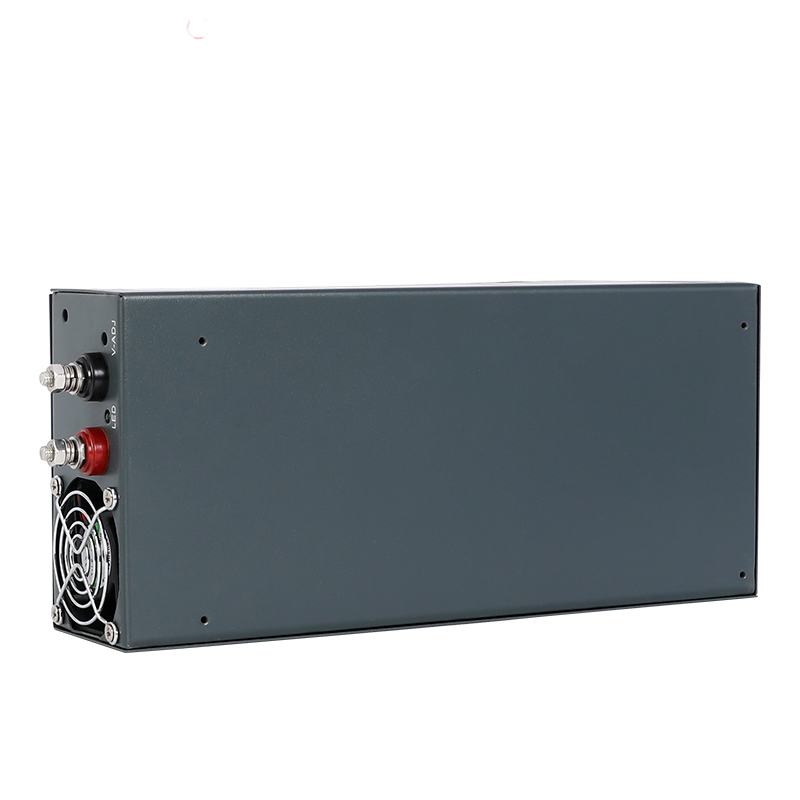

Switching Power Supply 1000w High Power DC Single Output SMPS 1000w 24v Switching Power Supply

Product Description

Product Description
Warranty 6 Years Product Name Single Unit Output Power Supply
Model S-1000W-24 Output Type Single
Output Power 1000W Output Voltage 24v
Input Voltage 110V/220V Output Current 40A
Application CCTV Camera, LEDs, 3D printer, Machines Protection Short Circuit / Over Load / Over Voltage
Output Frequency 50/60Hz

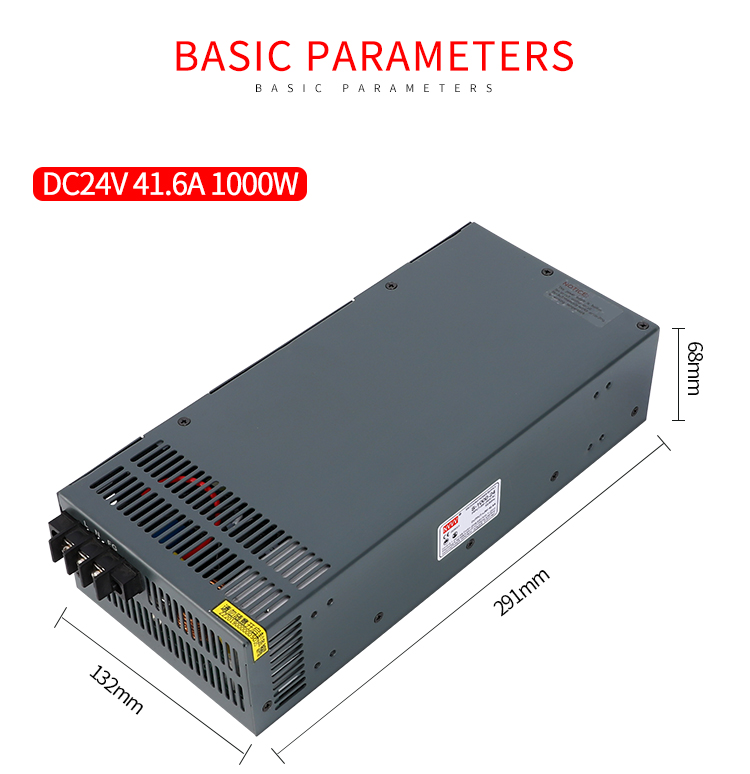

Product Image 1
Product Image 2

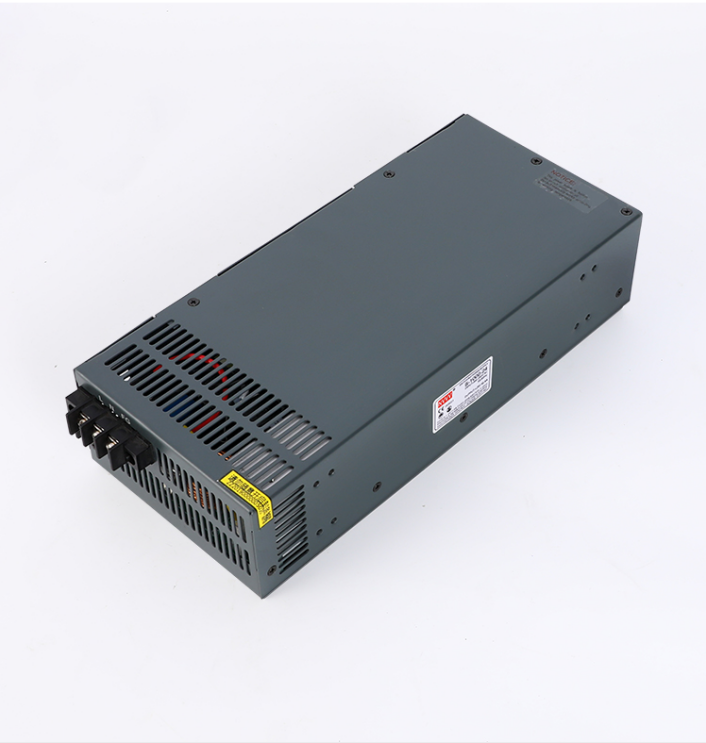

Product Image 3
Product Image 4
Specification
S-1000 1000W Switching Power Supply Specifications
Project Technical Index 12V 24V 36V 48V
Output DC Voltage 12V 24V 36V 48V
Rated Current 80A 40A 27.5A 20A
Rated Power 960W 960W 990W 960W
Ripple & Noise (1) < 150mV < 150mV < 240mV < 240mV
Voltage Accuracy ±1%
Output Voltage Regulation Range ±10%
Load Adjustment Rate < ±1.2% < ±1% < ±0.5% < ±0.5%
Linear Adjustment Rate < ±1%
Input Voltage Range 180-264VAC 47Hz ~ 63Hz / 254VDC ~ 370VDC
Efficiency (typical) (2) > 82% > 84% > 86% > 86%
Working Current 220VAC: 60A
Impulse Current < 10A 230VAC
Start, Rise, Hold Time 200ms, 50ms, 20ms / 230VAC
Protect Overload Protection 105% - 135% Type: Constant current output + VO reduced to undervoltage point cut off output. Reset: Power on again.
Overvoltage Protection Close output when ≥ 115% - 145%
Short Circuit Protection Close output
Over Temperature Protection Rth3: The fan operates normally, and the output is closed when the temperature is ≥ 90 ℃
Environment Working Temp. & Humidity -10℃ ~ +50℃ / 20% ~ 90% RH
Storage Temp. & Humidity -20℃ ~ +85℃ / 10% ~ 95% RH
Safety Withstand Voltage Input-Output: 1.5kVac; Input-Shell: 1.5kVac; Output-Shell: 0.5kVac for 1 minute
Leakage Current Input-Output < 6mA at 1.5kVac
Leakage Current Input-Output at 220VAC < 1mA
Isolation Resistance Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω
Profile
Profile Image 1
Profile Image 2
Certifications
Certifications
Packaging & Shipping
Packaging Detail 1
Packaging Detail 2
Packaging Detail 3
Frequently Asked Questions
QDo you offer OEM/ODM custom service for power products?
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
QWhat voltage options can you supply for power supplies? Can you customize voltage?
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item. Customized voltage requirements can be evaluated upon request.
QCan I get a sample order for quality testing?
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
QWhat is your minimum order quantity (MOQ) for sample and bulk orders?
Our MOQ is low. For sample checking, 30 pieces are available.
QWhat are your shipping methods, delivery time, and logistics options?
We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
QHow do you handle defective products under warranty?
First, all our products go through a strict quality control system, so the defect rate is very low. Second, during the warranty period: For small quantities, we will include new products with your next order. For defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
