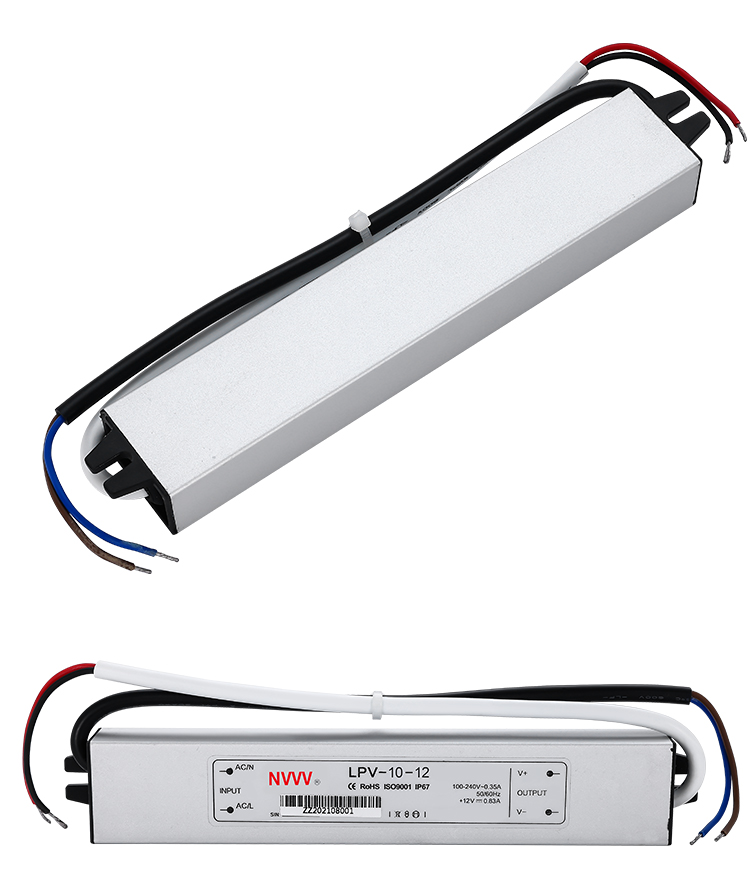

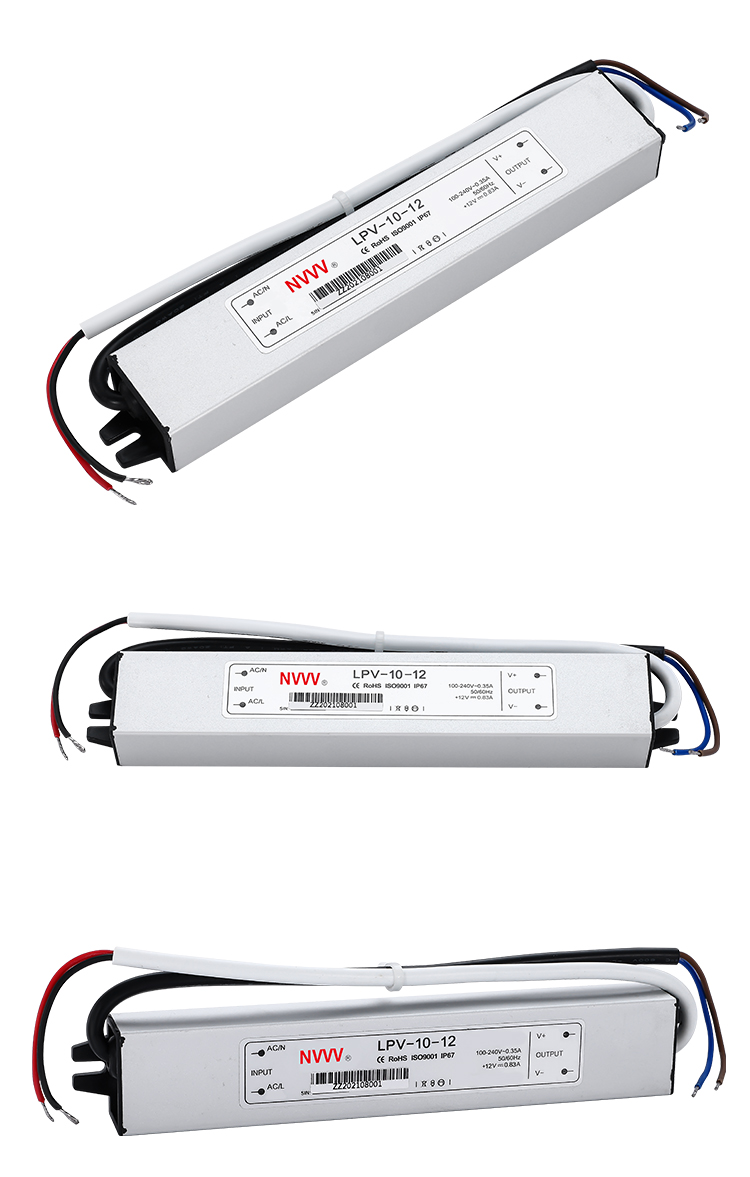

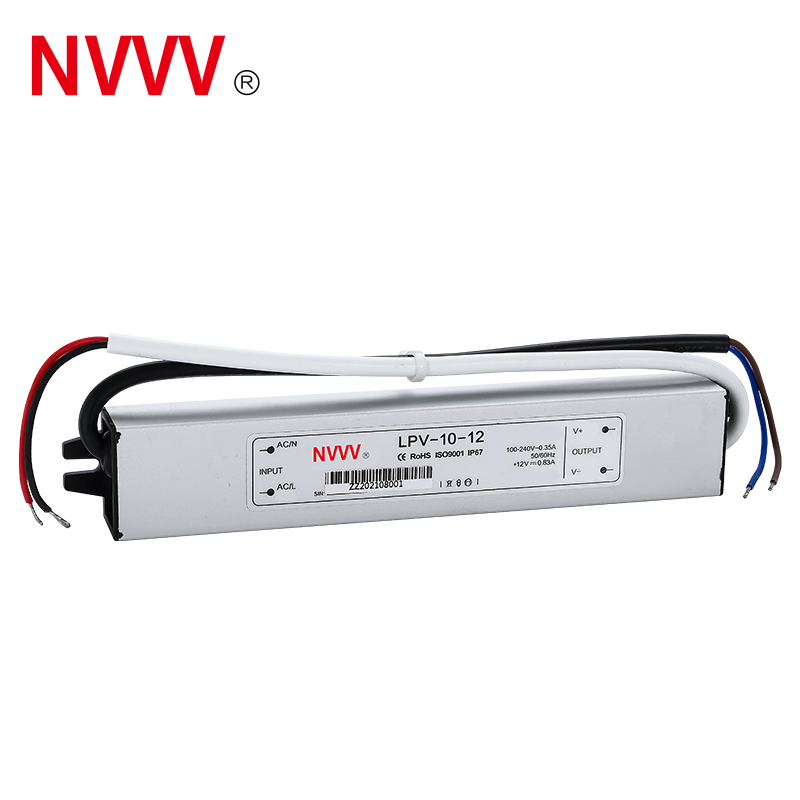

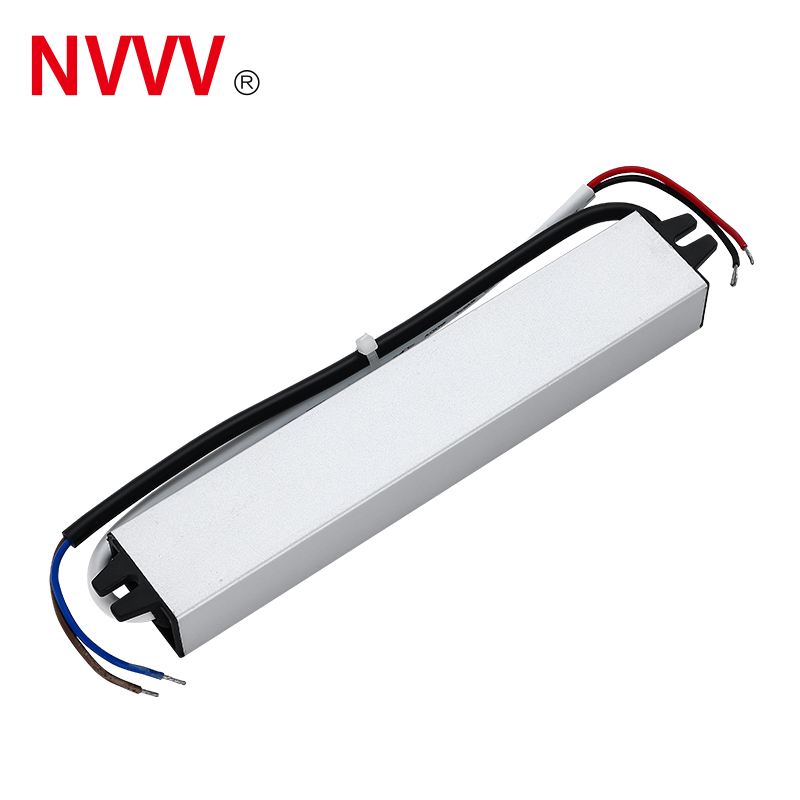

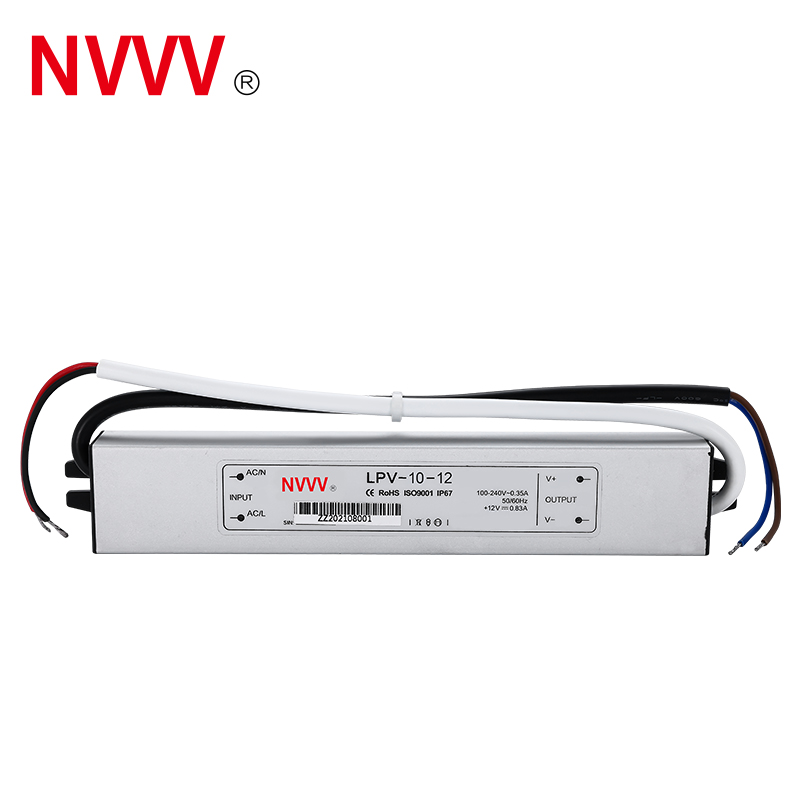

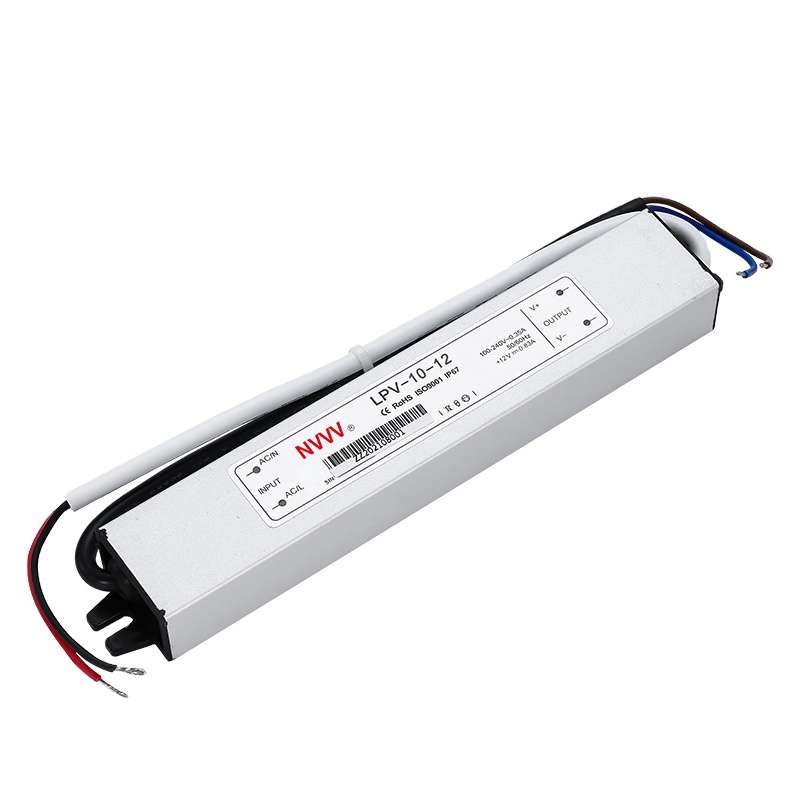

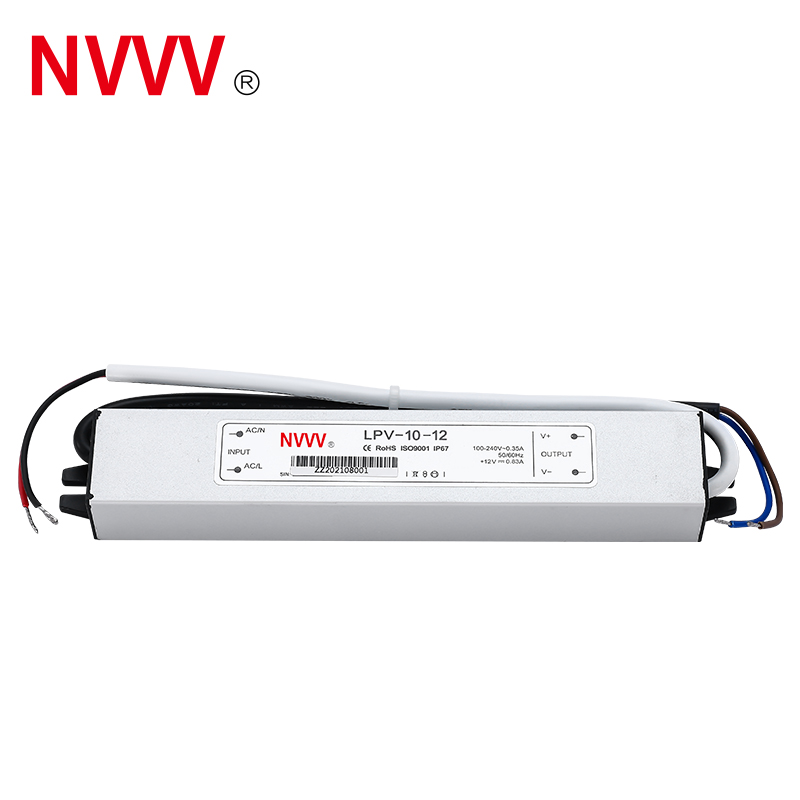

| LPV-10 10W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Technical Index | 12V Specification | 24V Specification |
| Output | DC Voltage | 12V | 24V |
| Rated current | 0.83A | 0.42A | |
| Rated power | 10W | 10W | |
| Ripple and noise | < 120mV | < 150mV | |
| Voltage Precision | ±5% | ||
| Load adjustment rate | ±2% | ||
| Linear adjustment rate | ±1% | ||
| Starting and rising time | 500ms, 20ms, 16ms / 115VAC; 500ms, 20ms, 50ms / 230VAC | ||
| Input | Voltage range/ frequency | 90-264VAC 47Hz ~ 63Hz; 127VDC ~ 370VDC | |
| Efficiency (typical) | > 81% | > 83% | |
| Working current | 0.24A/110VAC; 0.14A/230VAC | ||
| Impulse current | 220VAC: 60A | ||

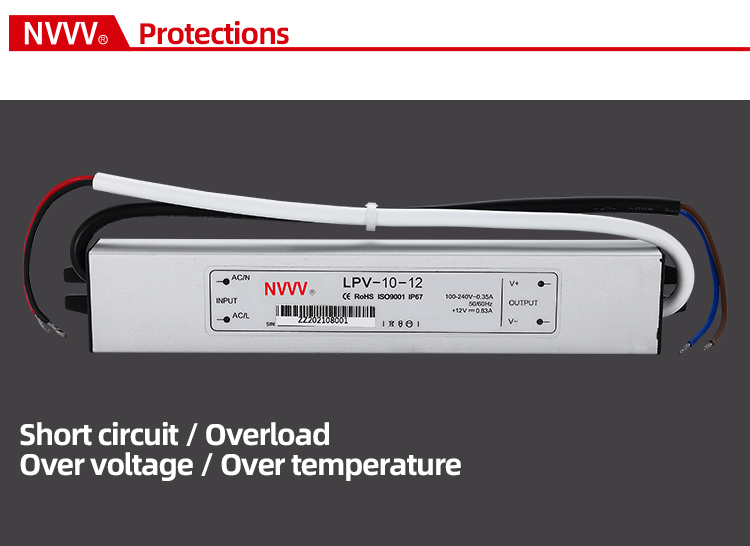

| Protect | Leakage current protection | 110% - 130% protection type: Hiccup mode, automatic return to normal after removing abnormal conditions | |
| Overload protection | 115% - 145% protection type: Close the output, restart and automatically return to normal | ||
| Environmental | Working temp. & humidity | -30°C ~ +70°C; 20% ~ 90% RH | |
| Storage temp. & humidity | -40°C ~ +85°C; 10% ~ 95% RH | ||
| Safety | Withstand voltage | Input-Output: 3KVAC 1 minute | |
| Leakage current | Input shell: < 2.5mA / 240VAC | ||
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC/100MΩ | ||
| Other | Size | 162 * 30 * 20mm | |
| Net/Gross weight | 200g / 210g | ||
