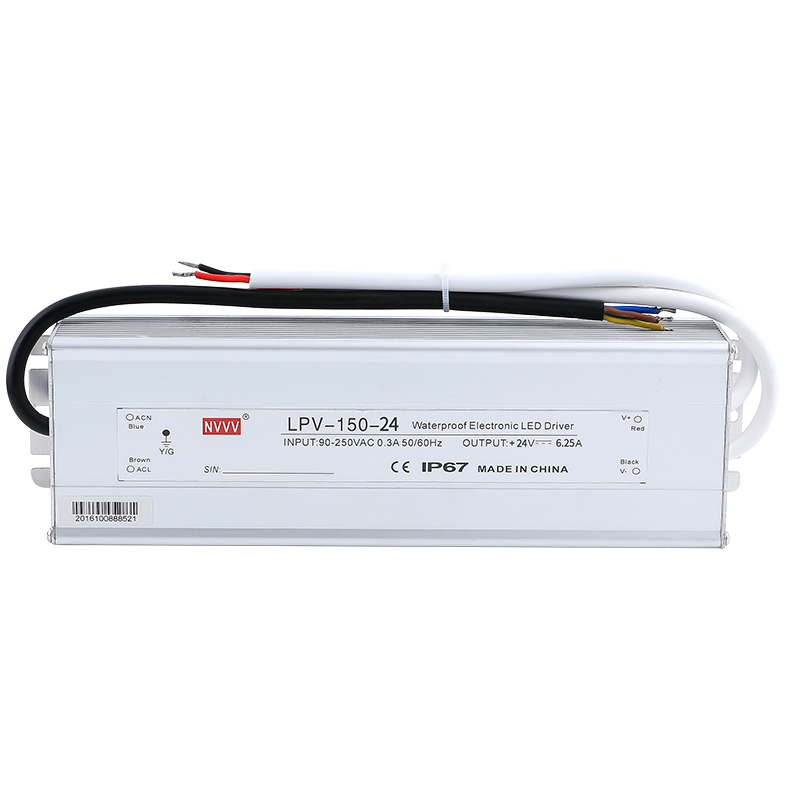

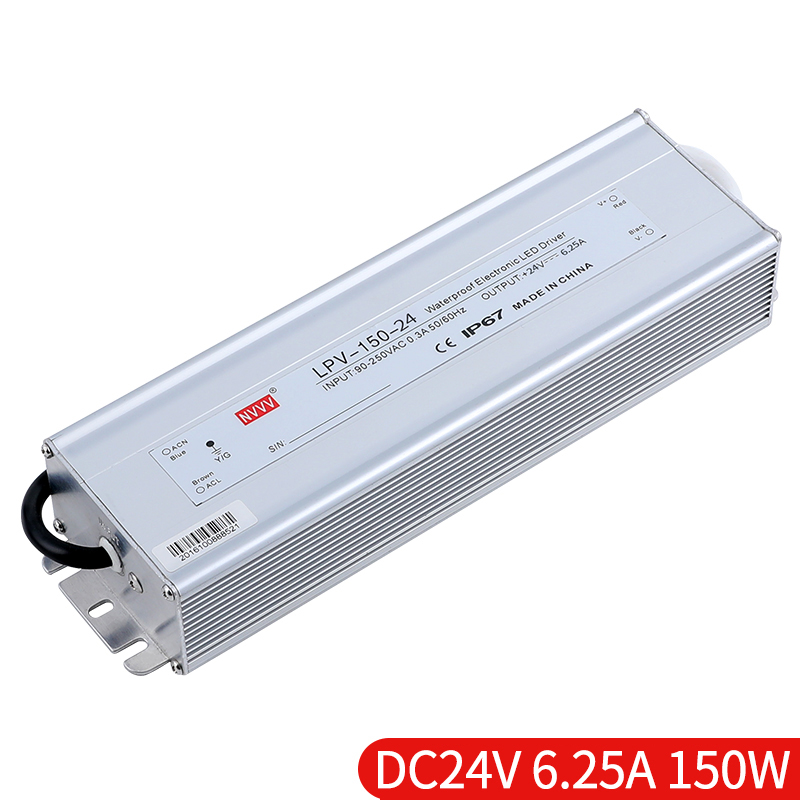

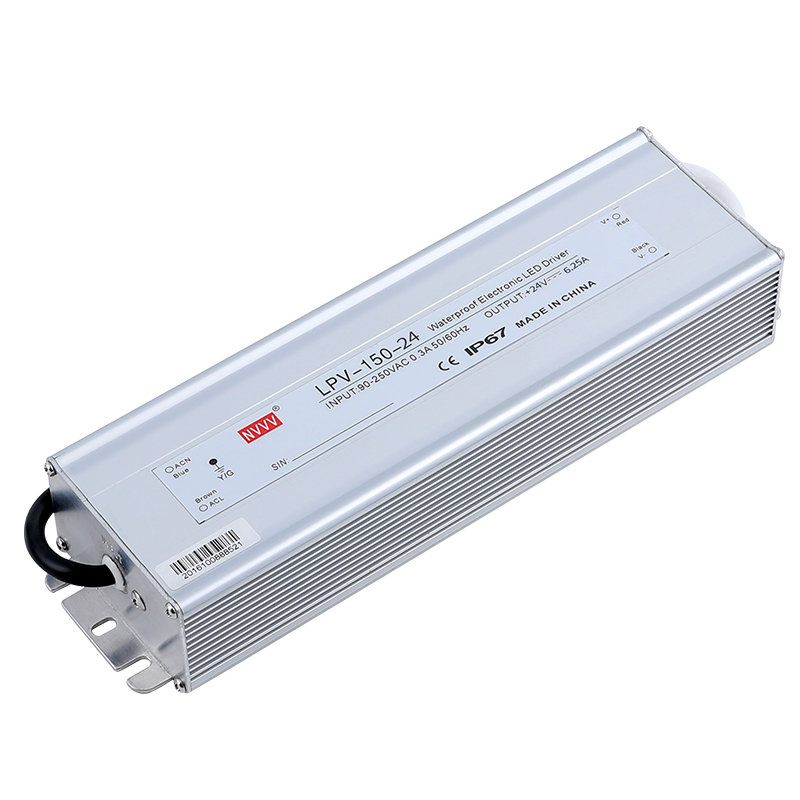

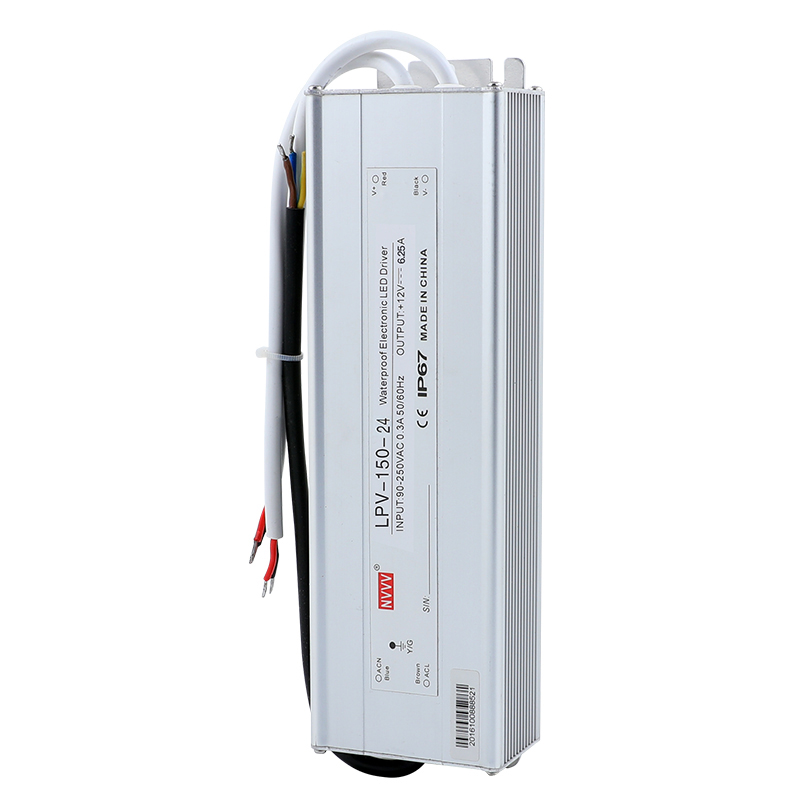

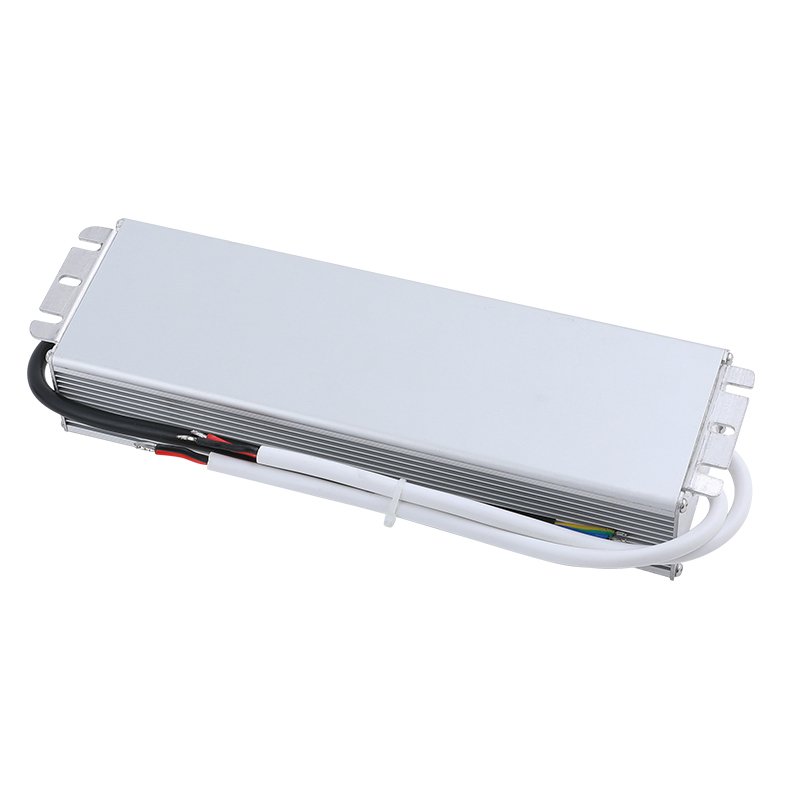

| LPV-150 150W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Technical Index | ||
| Output | DC voltage | 12V | 24V |
| Rated current | 12.5A | 6.25A | |
| Rated power | 150W | 150W | |
| Ripple and noise (1) | <120mV | <200mV | |
| Voltage accuracy | ±5% | ||
| Load adjustment rate | ±2% | ||
| Linear adjustment rate | ±1% | ||
| Starting and rising time | 2000ms, 25ms, 15ms / 115VAC; 2000ms, 25ms, 50ms / 230VAC | ||
| Input | Voltage range / frequency | 90-264VAC 47Hz - 63Hz; 127VDC - 370VDC | |
| Efficiency (typical) (2) | >87% | >88% | |
| Working current | 2.7A/110VAC 1.5A/230VAC | ||
| Impulse current | 220VAC: 60A | ||
| Protect | Overload protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Overvoltage protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | ||
| Function | Working temperature and humidity | -30°C - +70°C, 20% - 90% RH | |
| Storage temperature and humidity | -40°C - +85°C, 10% - 95% RH | ||
| Safety | Withstand voltage | Input output: 3kvac for 1 minute | |
| Leakage current | Input shell: When 240VAC < 2.5mA | ||
| Insulation impedance | Input output, input shell, output shell: 500VDC / 100M Ω | ||

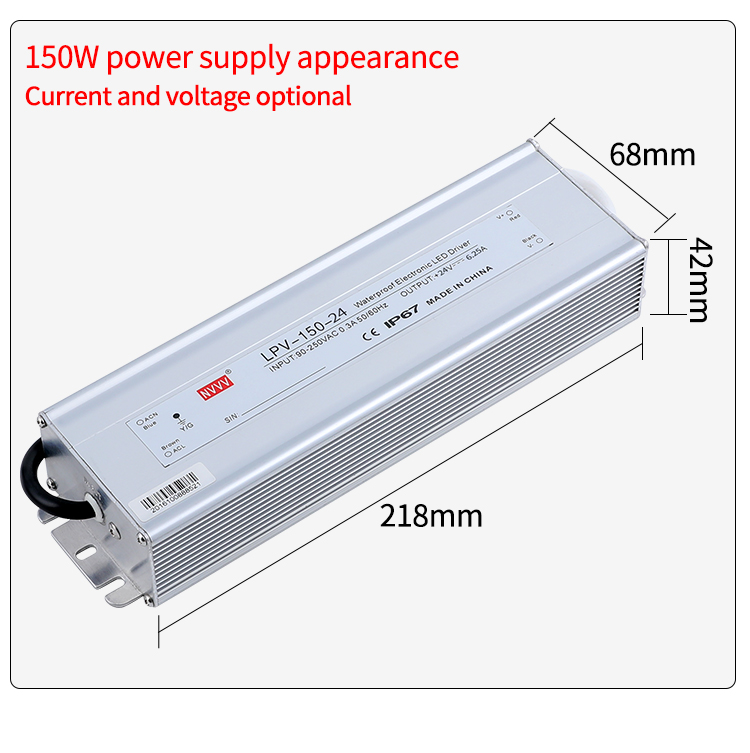

| Other | Size | 218*68*42mm | |
| Net weight / gross weight | 1100/1200g | ||
