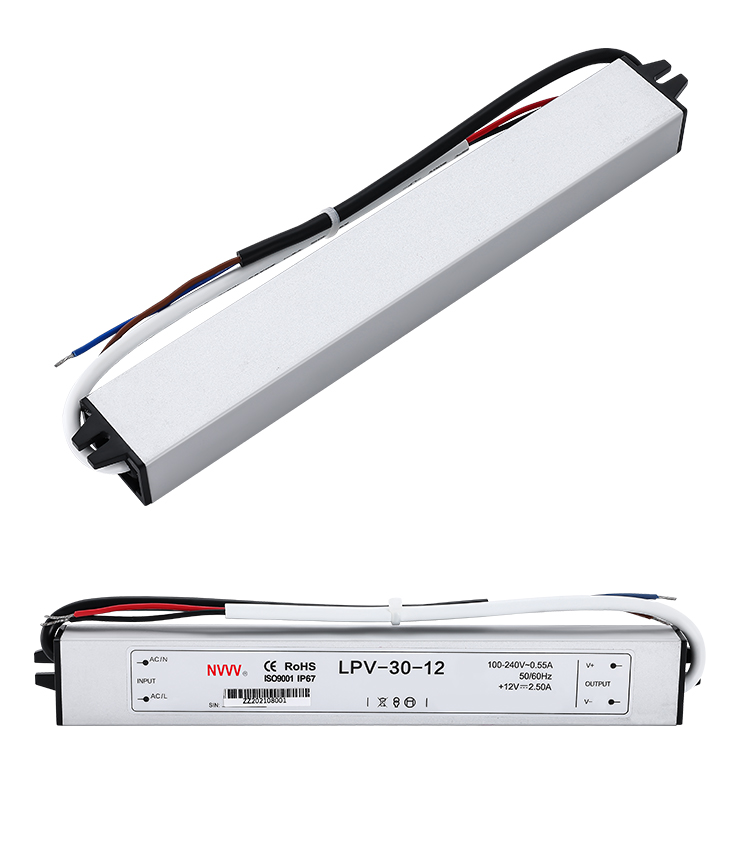

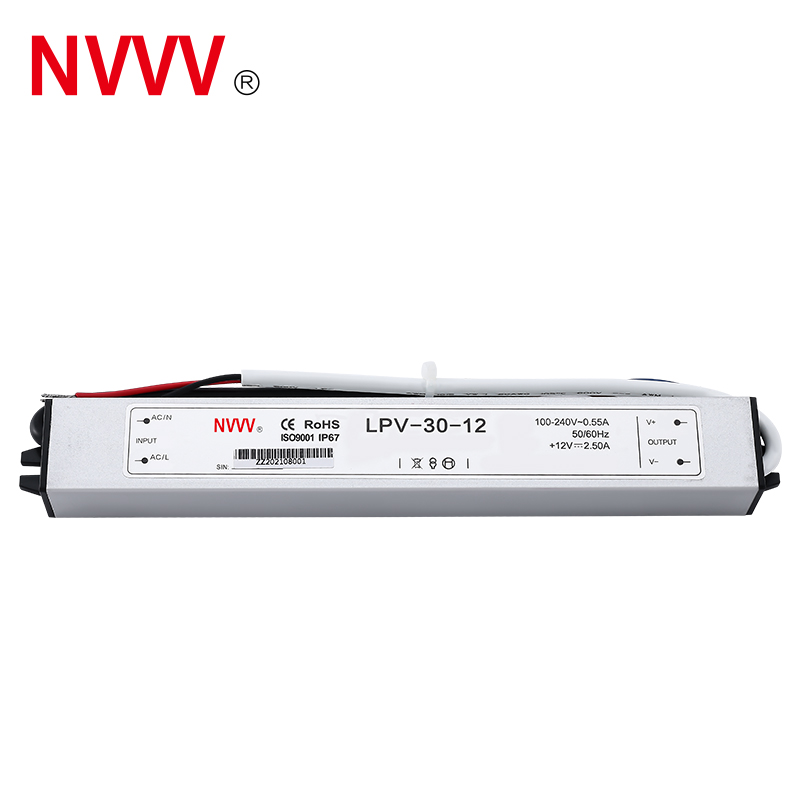

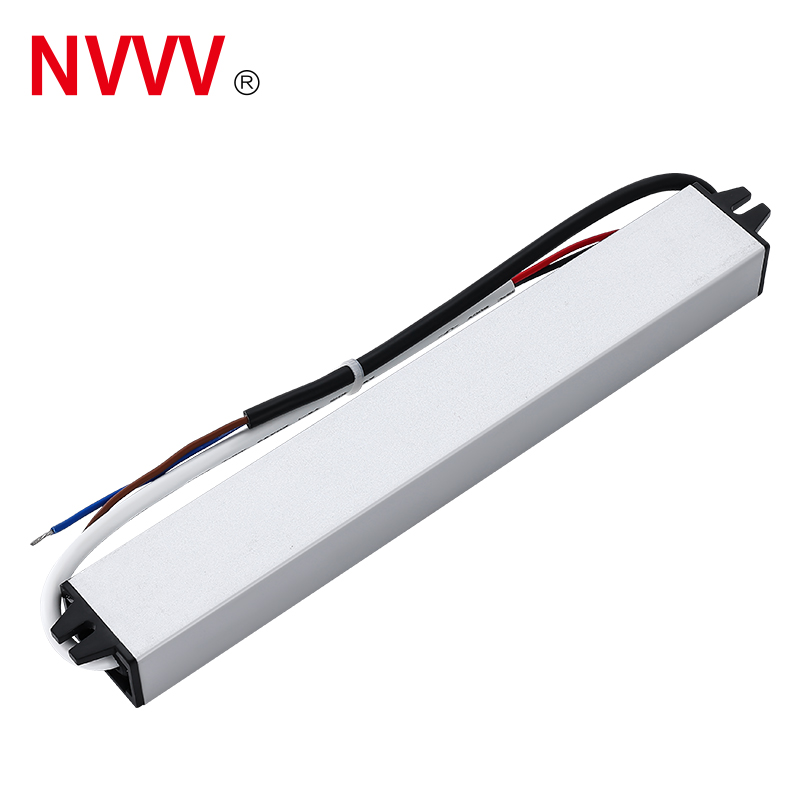

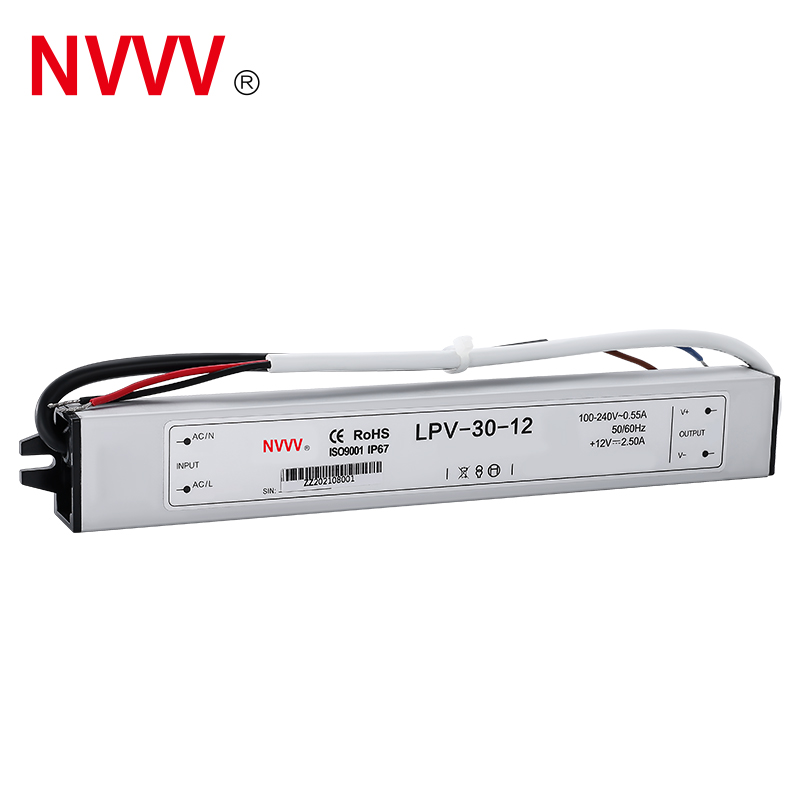

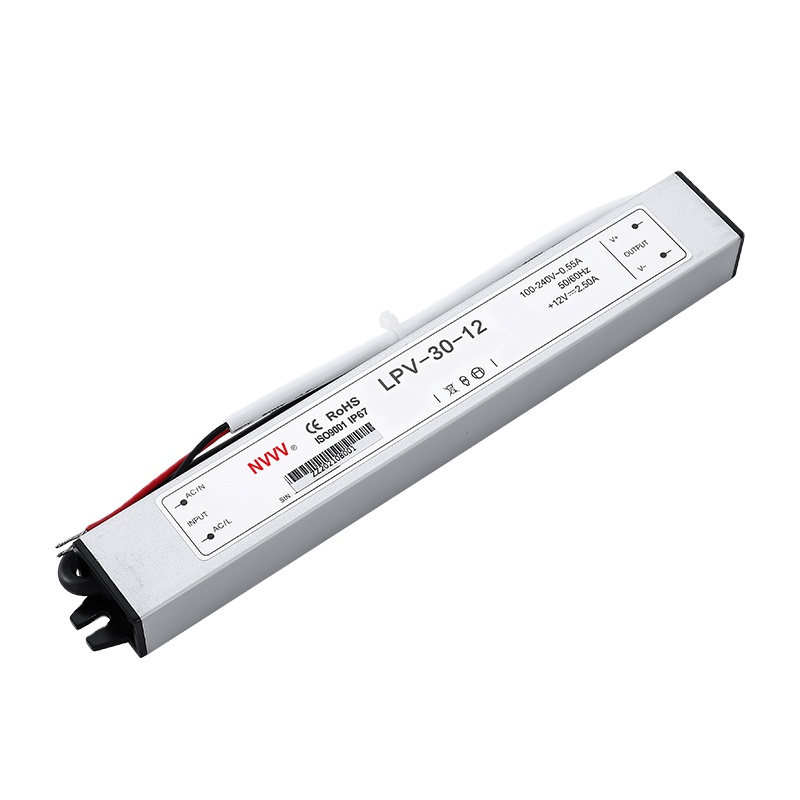

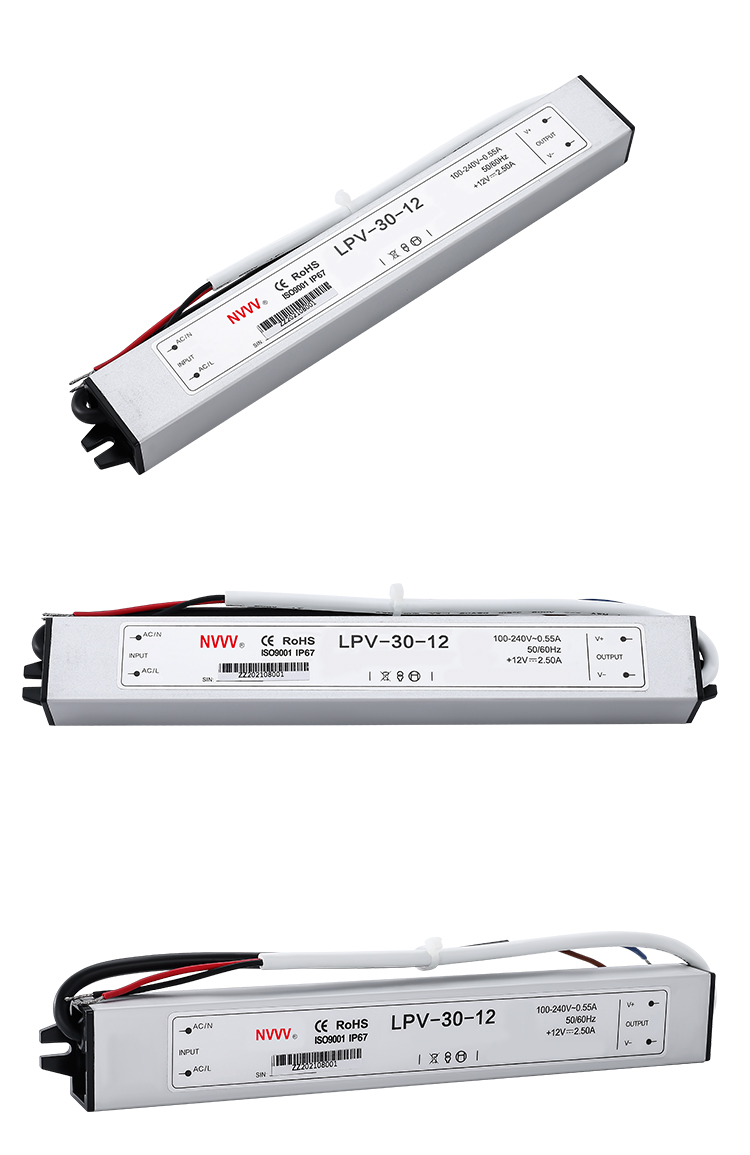

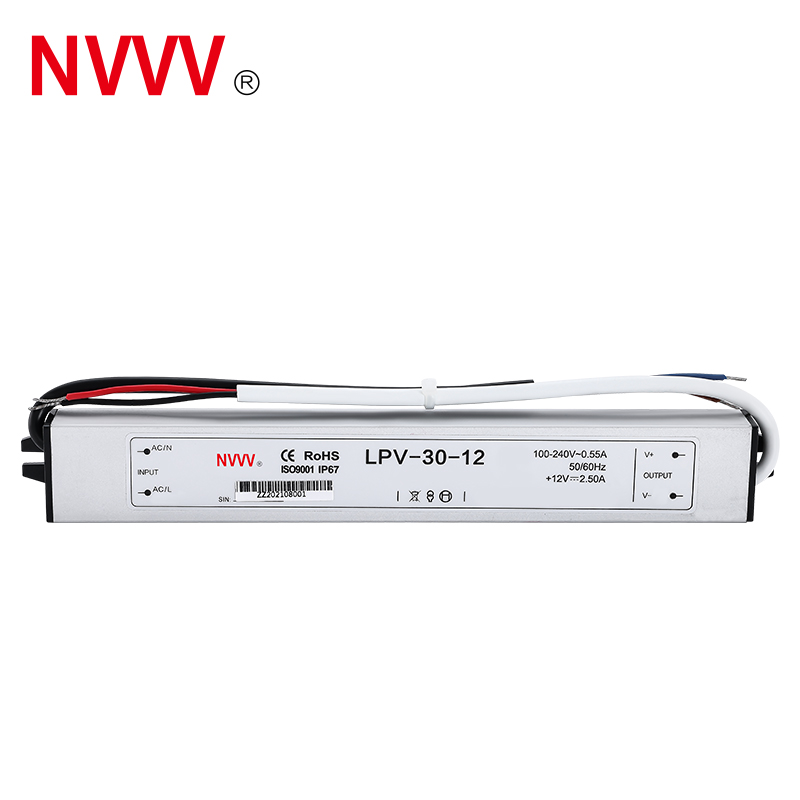

| LPV-30 30W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Output Specifications | ||
| DC Voltage | 12V | 24V |
| Rated Current | 2.5A | 1.25A |
| Rated Power | 30W | 30W |
| Ripple & Noise | < 120mV | < 150mV |
| Voltage Accuracy | ±5% | |
| Load Adjustment | ±2% | |
| Linear Adjustment | ±1% | |
| Setup & Rise Time | 500ms, 20ms, 16ms : 115VAC / 500ms, 20ms, 50ms : 230VAC | |
| Input Specifications | ||
| Voltage Range / Freq. | 90-264VAC 47Hz ~ 63Hz / 127VDC ~ 370VDC | |
| Efficiency (Typical) | > 81% | > 83% |
| Working Current | 1A / 110VAC, 0.65A / 230VAC | |
| Impulse Current | 220VAC: 60A | |

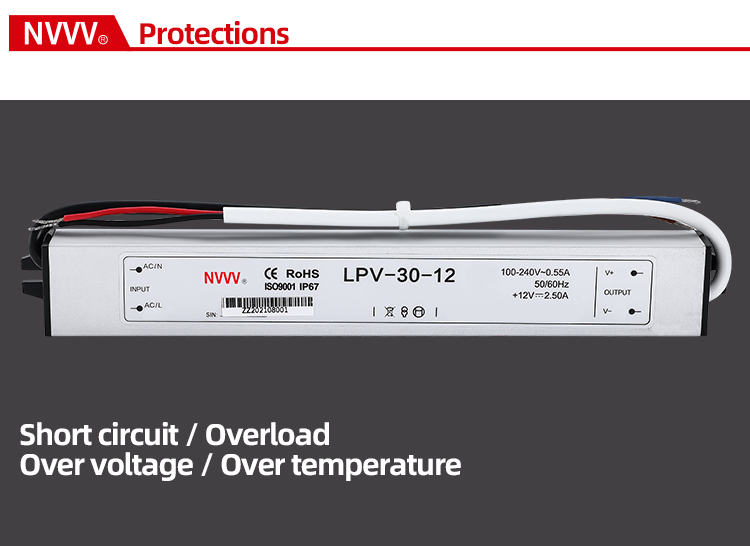

| Protection | ||
| Overload | 105% - 135% (Burping mode, auto-recovery after fault condition is removed) | |
| Overvoltage | ≥ 115% - 145% (Closes output, restart to automatically recover) | |
| Environmental Parameters | ||
| Working Temp/Humid. | -30°C ~ +70°C; 20% ~ 90% RH | |
| Storage Temp/Humid. | -40°C ~ +85°C; 10% ~ 95% RH | |
| Safety & Compliance | ||
| Withstand Voltage | Input - Output: 3KVAC for 1 minute | |
| Leakage Current | Input - Shell: < 2.5mA at 240VAC | |
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | |
| Dimensions & Weight | ||

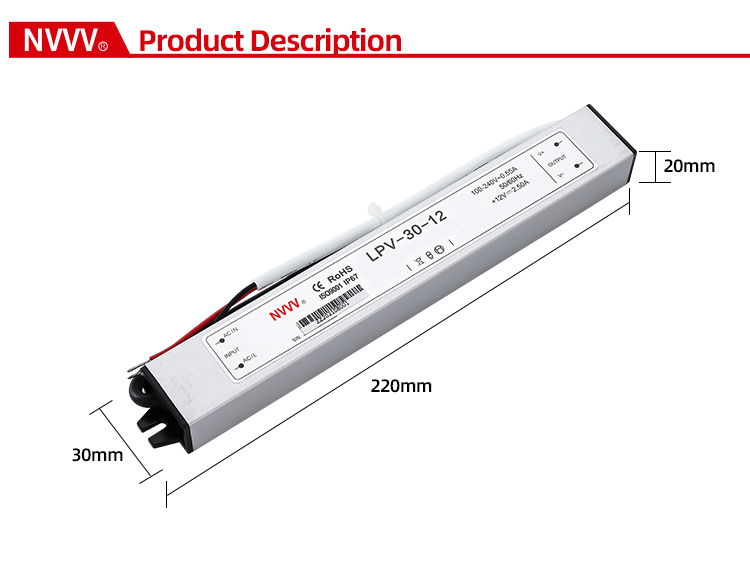

| Size | 220 * 30 * 20 mm | |
| Net / Gross Weight | 250g / 260g | |
