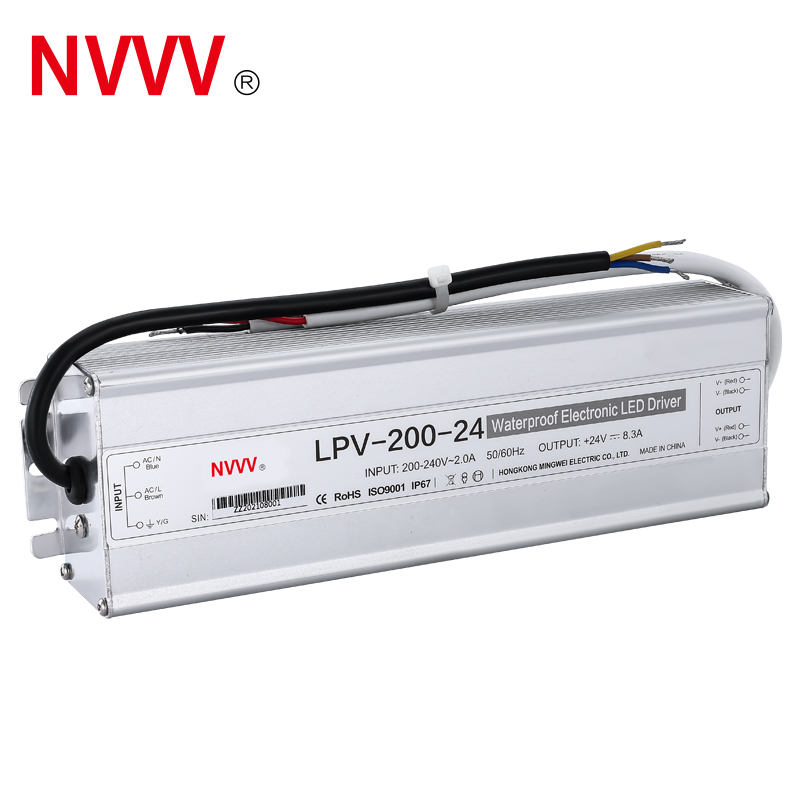

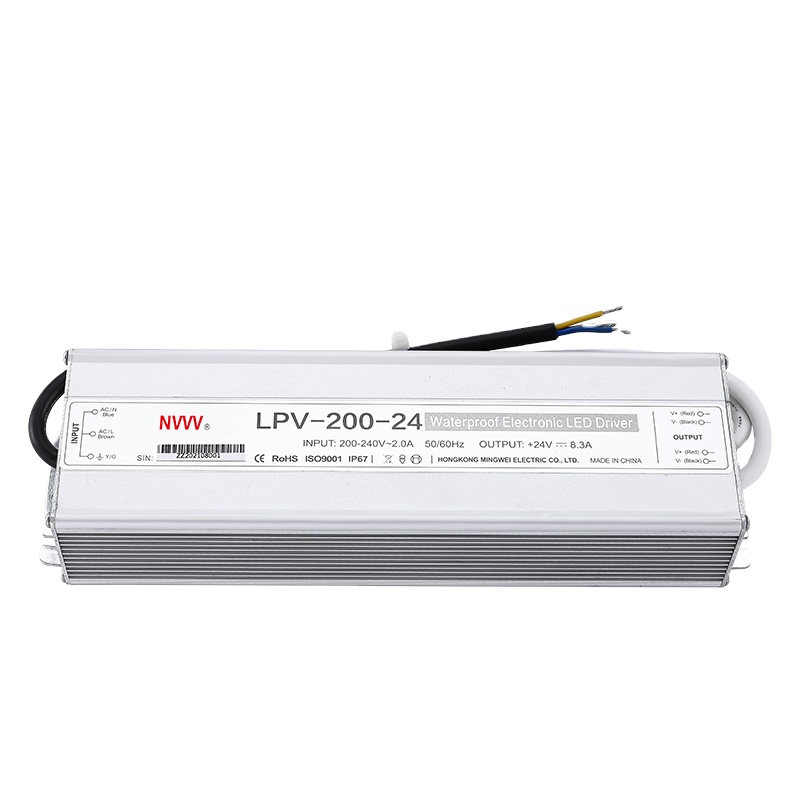

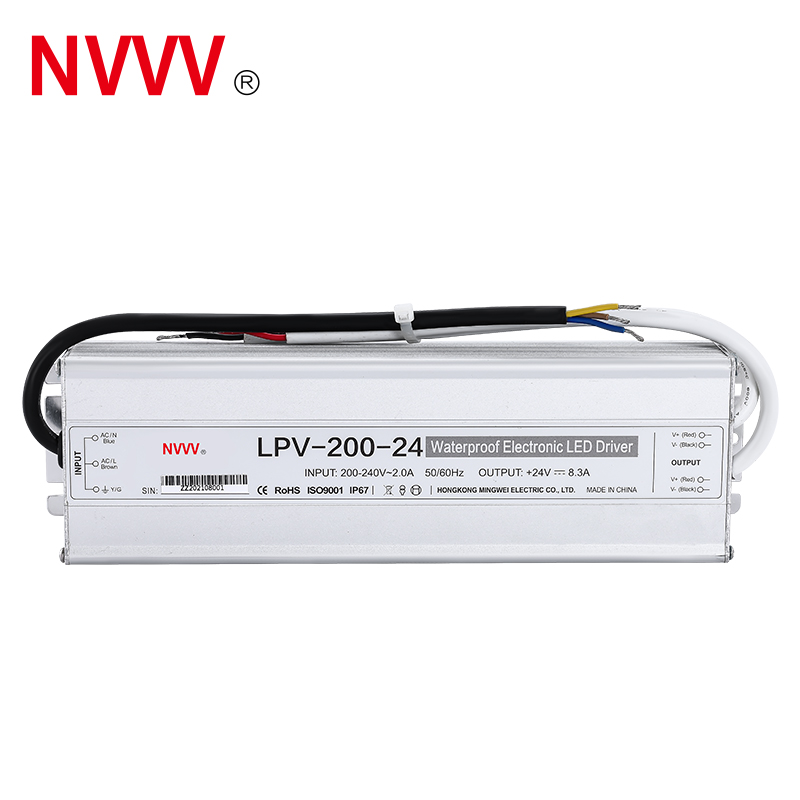

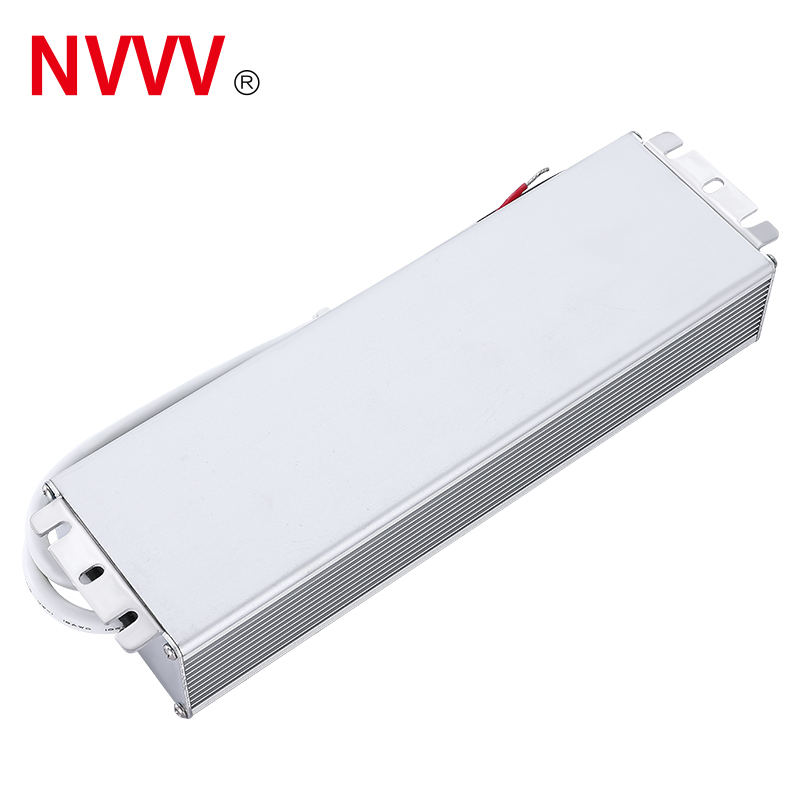

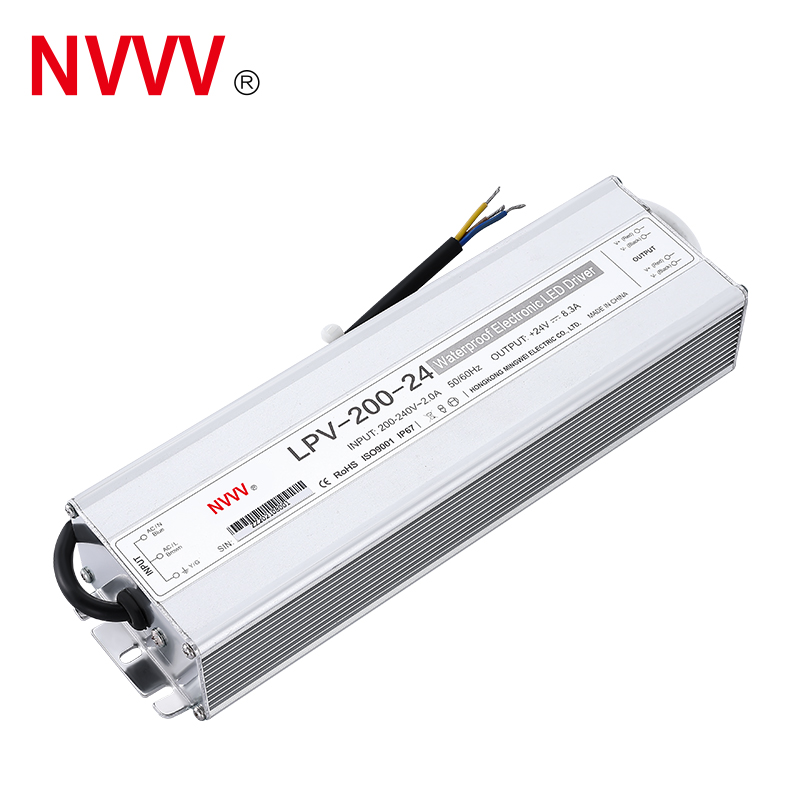

| LPV-200 200W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Output | DC Voltage | 12V / 24V |
| Rated Current | 16.6A / 8.3A | |
| Rated Power | 199.2W / 199.2W | |
| Ripple & Noise | < 120mV / < 200mV | |
| Voltage Accuracy | ±5% | |
| Load Adjustment Rate | ±2% | |
| Linear Adjustment Rate | ±1% | |
| Starting & Rising Time | 2000ms, 25ms, 15ms (115VAC) / 2000ms, 25ms, 50ms (230VAC) | |
| Input | Voltage Range / Frequency | 90-264VAC 47Hz - 63Hz / 127VDC - 370VDC |
| Efficiency (Typical) | > 87% / > 88% | |
| Working Current | 3A/110VAC, 1.7A/230VAC | |
| Impulse Current | 220VAC: 60A | |

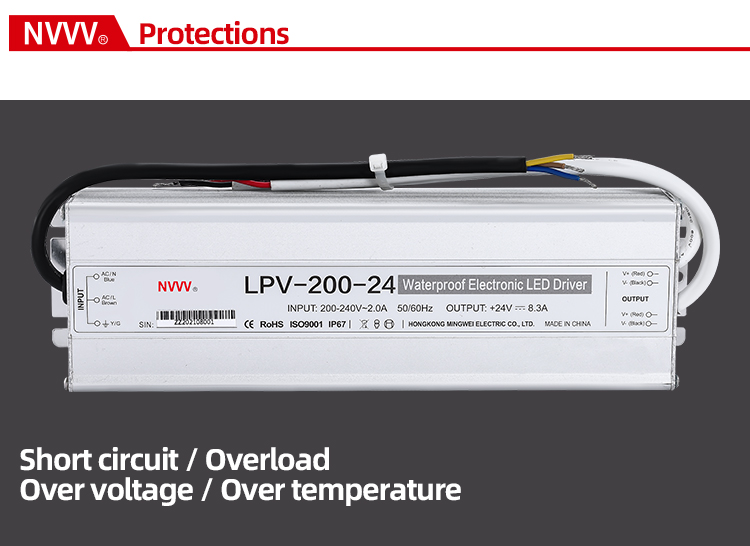

| Protection | Overload Protection | 105%-135% (Protection type: hiccup mode, auto-recovery after abnormal conditions are removed) |
| Overvoltage Protection | ≥ 115% - 145% (Protection type: close output, restart to recover) | |
| Function | Working Temp. & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH |
| Storage Temp. & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | |
| Safety | Withstand Voltage | Input - Output: 3kVac for 1 minute |
| Leakage Current | Input - Shell: < 2.5mA at 240VAC | |
| Insulation Impedance | Input - Output, Input - Shell, Output - Shell: 500VDC / 100M Ω | |

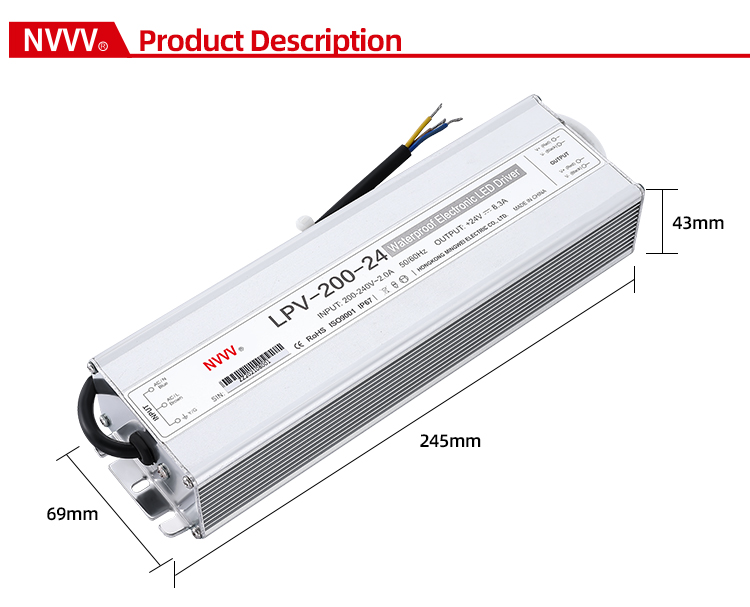

| Other | Size | 218 * 68 * 42mm |
| Net / Gross Weight | 1100 / 1200g | |
