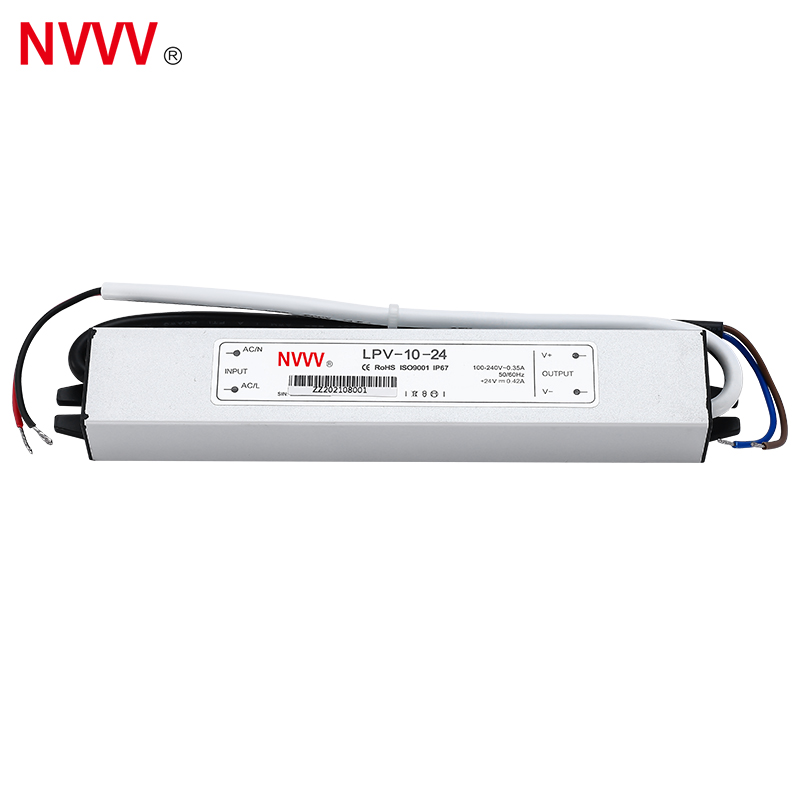

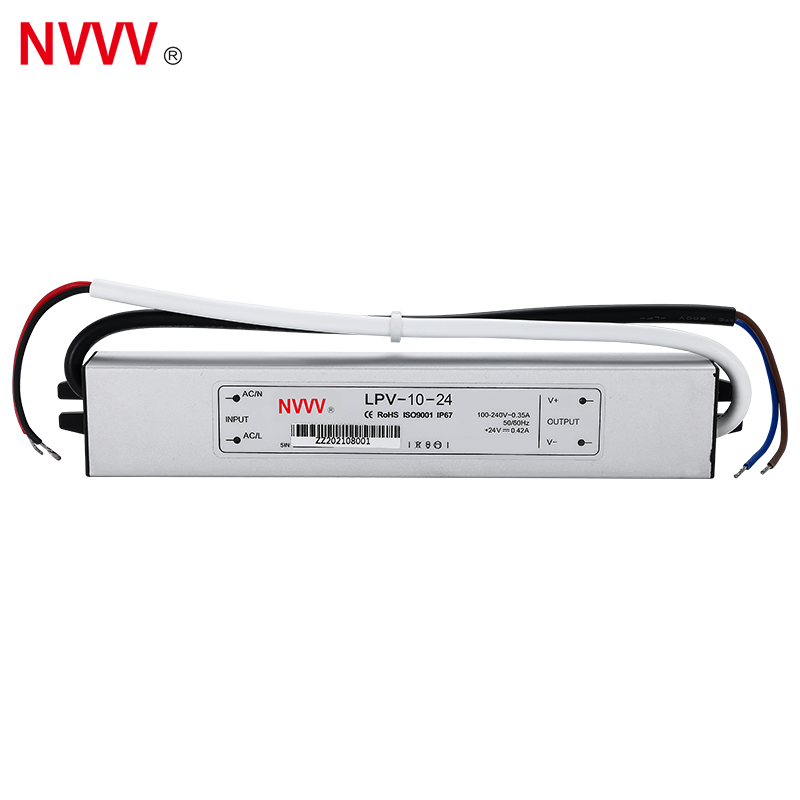

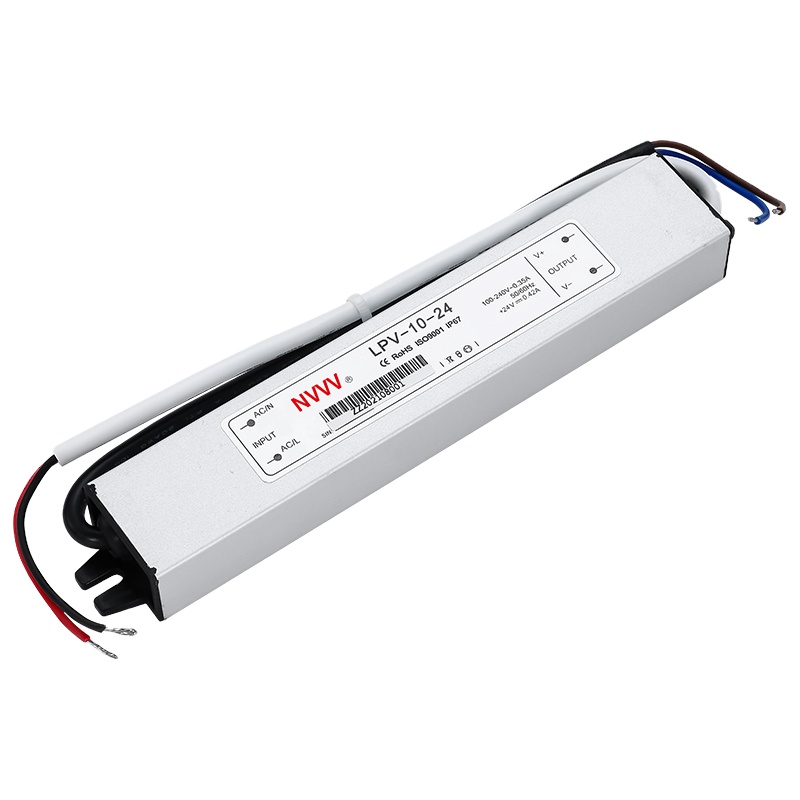

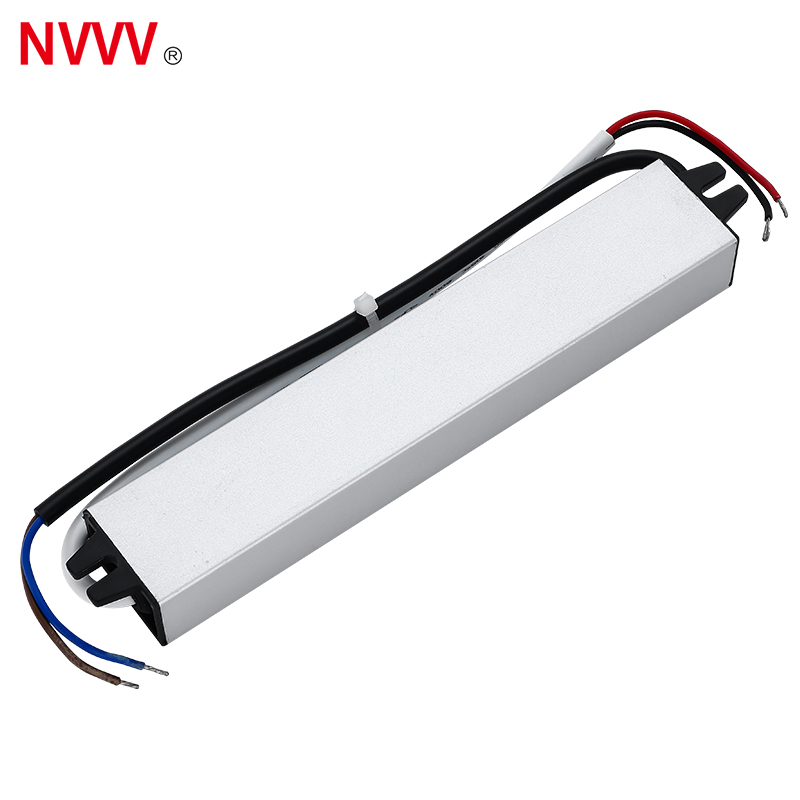

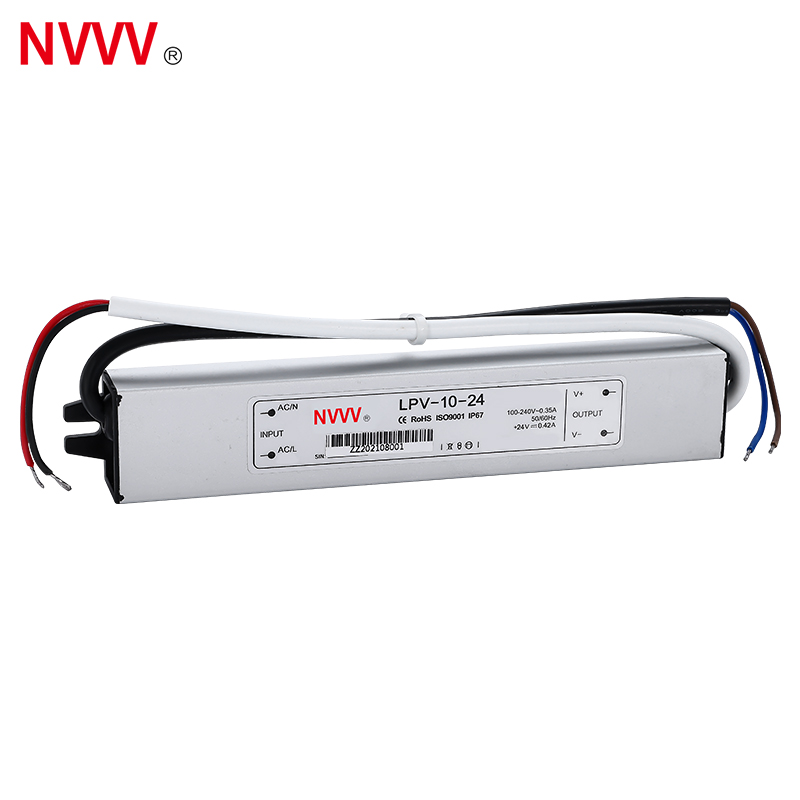

| LPV-10 10W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Parameter | Technical Index | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 0.83A | 0.42A | |
| Rated Power | 10W | 10W | |
| Ripple & Noise | < 120mV | < 150mV | |
| Voltage Precision | ±5% | ||
| Load Adjustment Rate | ±2% | ||
| Linear Adjustment Rate | ±1% | ||
| Starting and Rising Time | 500ms, 20ms, 16ms / 115VAC | 500ms, 20ms, 50ms / 230VAC | ||
| Input | Voltage Range / Frequency | 90-264VAC, 47Hz ~ 63Hz | 127VDC ~ 370VDC | |
| Efficiency (typical) | > 81% | > 83% | |
| Working Current | 0.24A / 110VAC | 0.14A / 230VAC | ||
| Impulse Current | 60A / 220VAC | ||

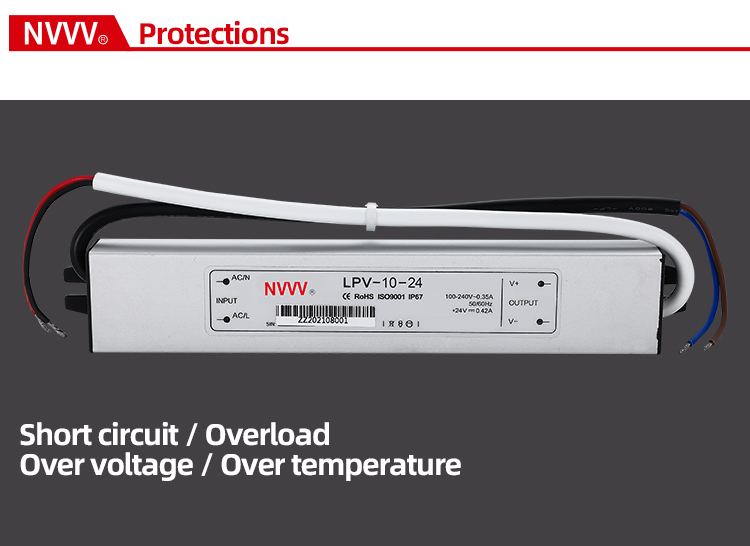

| Protect | Leakage Current Protection | 110% - 130% protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Overload Protection | 115% - 145% protection type: close the output, restart and automatically return to normal | ||
| Environment | Working Temp. & Humidity | -30°C ~ +70°C | 20% ~ 90% RH | |
| Storage Temp. & Humidity | -40°C ~ +85°C | 10% ~ 95% RH | ||
| Safety | Withstand Voltage | Input - Output: 3KVAC (1 minute) | |
| Leakage Current | Input - Shell: < 2.5mA / 240VAC | ||
| Isolation Resistance | Input - Output, Input - Shell, Output - Shell: 500VDC / 100MΩ | ||
| Other | Size | 162 * 30 * 20mm | |
| Net / Gross Weight | 200g / 210g | ||
