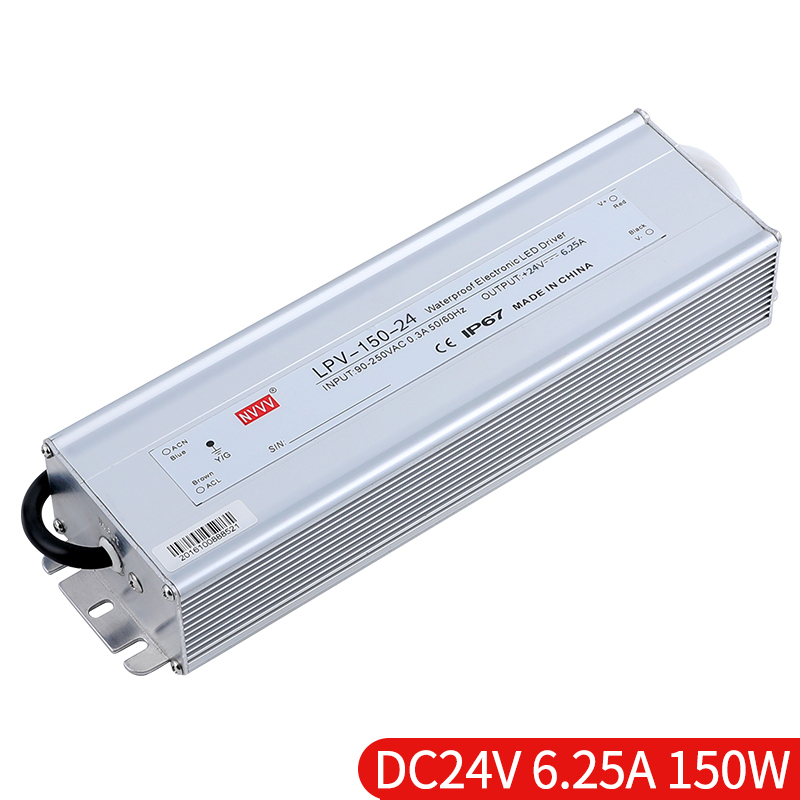

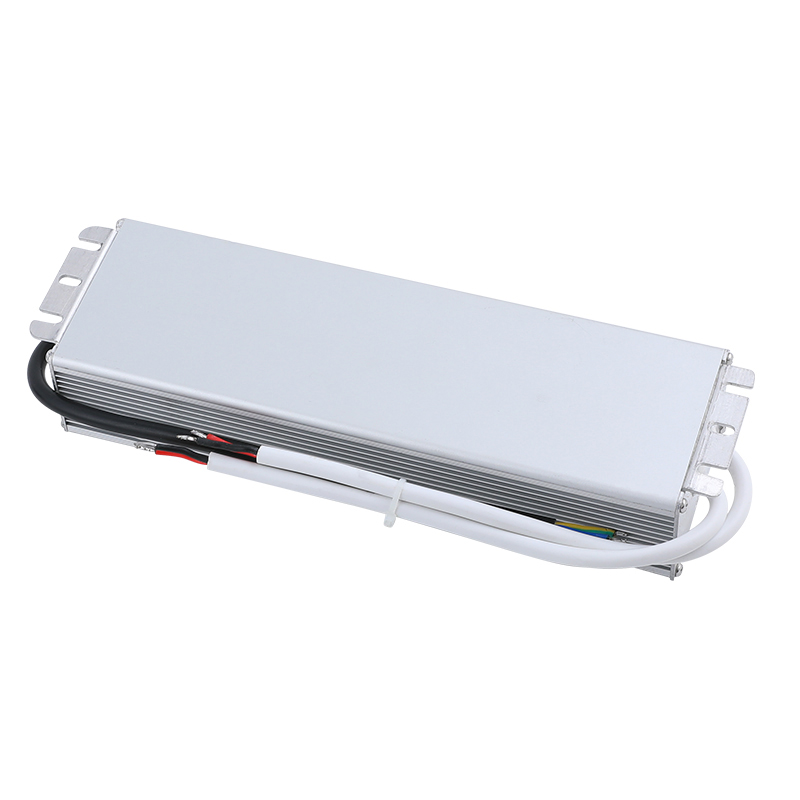

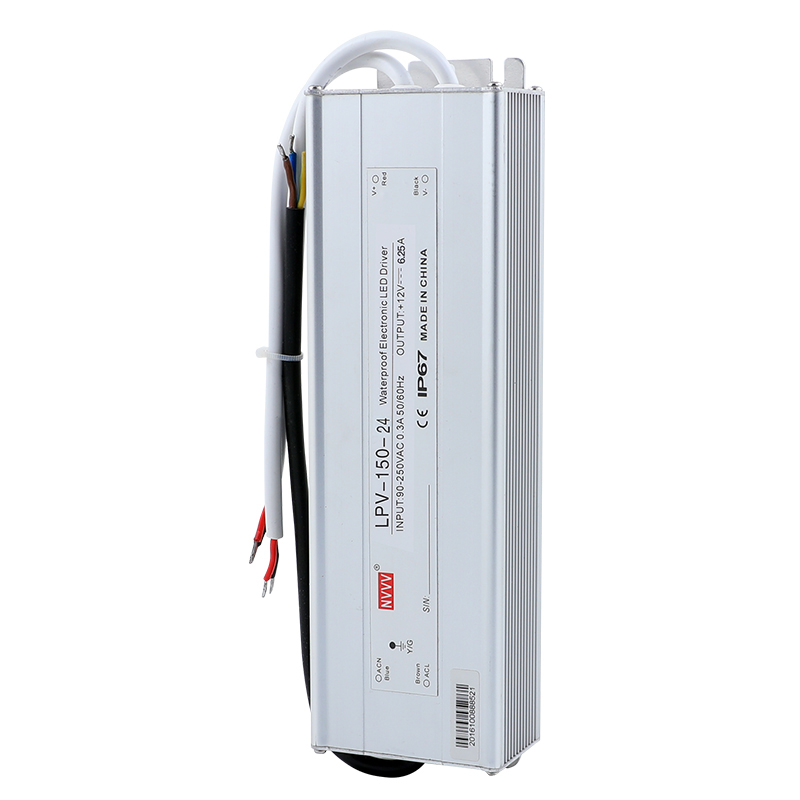

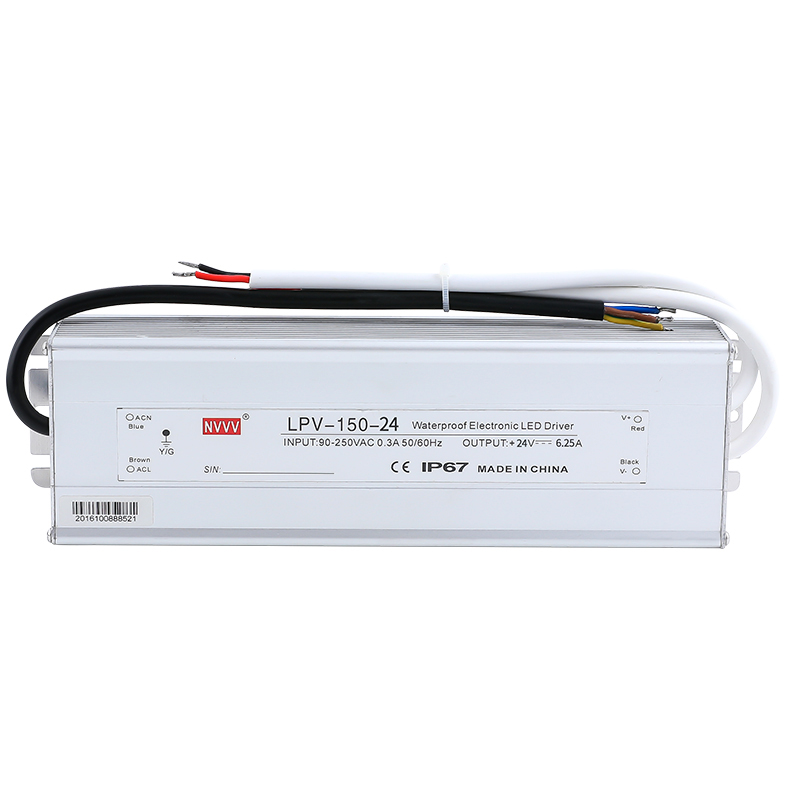

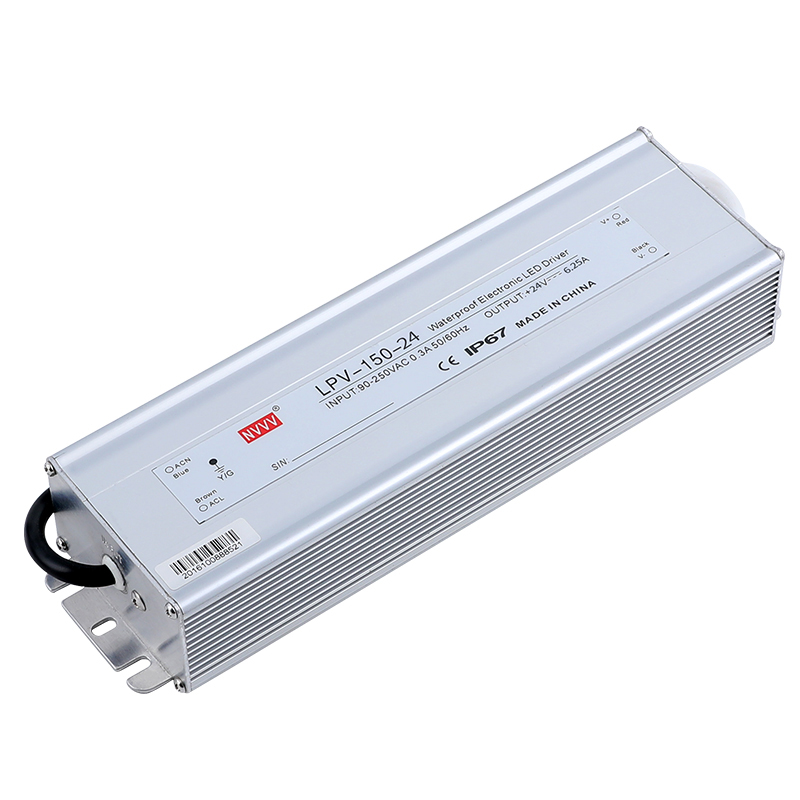

| LPV-150 150W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Category | Project Parameter | 12V Specifications | 24V Specifications |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 12.5A | 6.25A | |
| Rated Power | 150W | 150W | |
| Ripple and Noise | < 120mV | < 200mV | |
| Voltage Accuracy | ±5% | ||
| Load Adjustment Rate | ±2% | ||
| Linear Adjustment Rate | ±1% | ||
| Starting and Rising Time | 2000ms, 25ms, 15ms / 115VAC | 2000ms, 25ms, 50ms / 230VAC | ||
| Input | Voltage Range / Frequency | 90-264VAC, 47Hz ~ 63Hz; 127VDC ~ 370VDC | |
| Efficiency (typical) | > 87% | > 88% | |
| Working Current | 2.7A / 110VAC, 1.5A / 230VAC | ||
| Impulse Current | 220VAC: 60A | ||
| Protect | Overload Protection | 105%-135% Protection type: hiccup mode, auto-recovery after fault condition removed | |
| Overvoltage Protection | ≥ 115% - 145% Protection type: shut down output, restart to recover | ||
| Function | Working Temperature & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH | |
| Storage Temperature & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | ||
| Safety | Withstand Voltage | Input-Output: 3KVAC for 1 minute | |
| Leakage Current | Input-Shell: < 2.5mA @ 240VAC | ||
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | ||
| Other | Size | 218 * 68 * 42mm | |
| Net Weight / Gross Weight | 1100g / 1200g | ||
