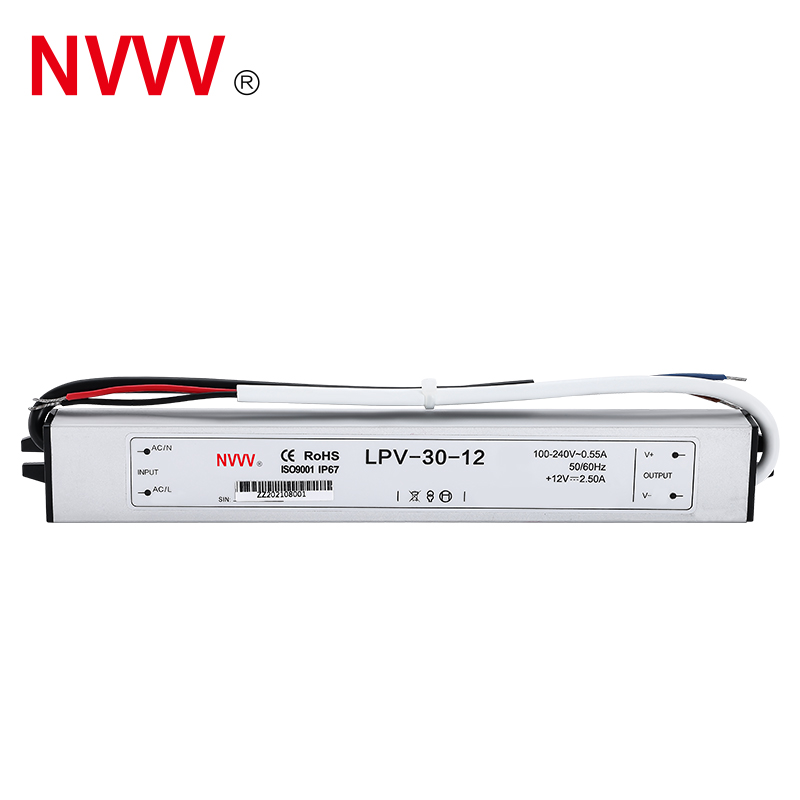

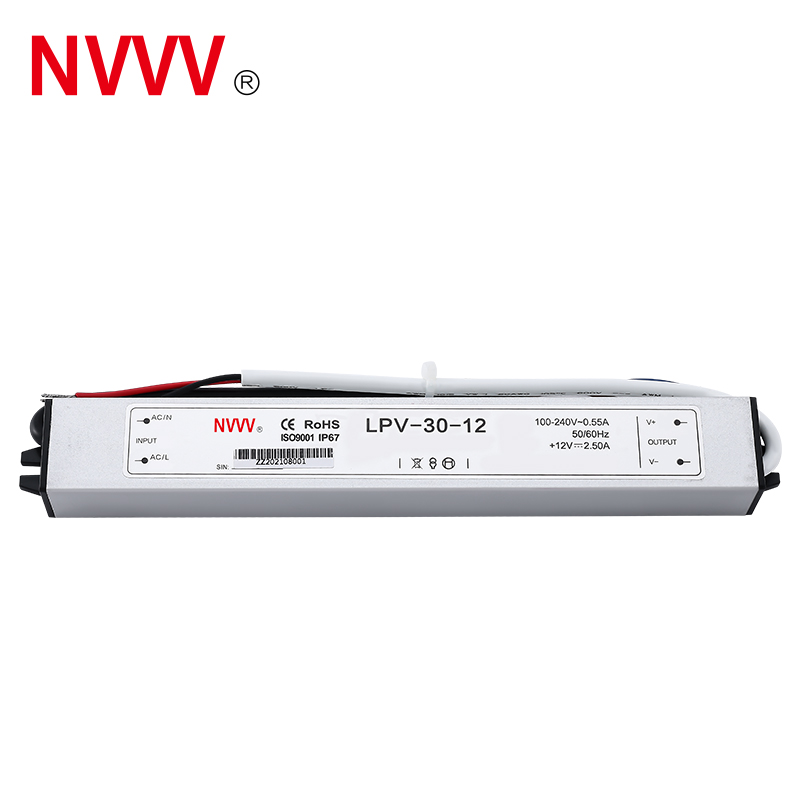

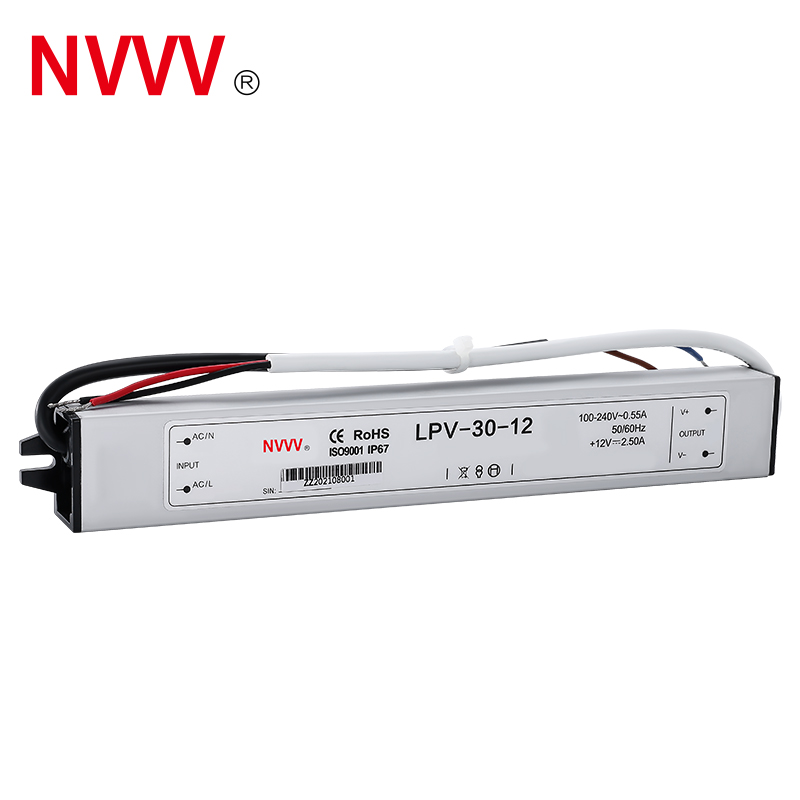

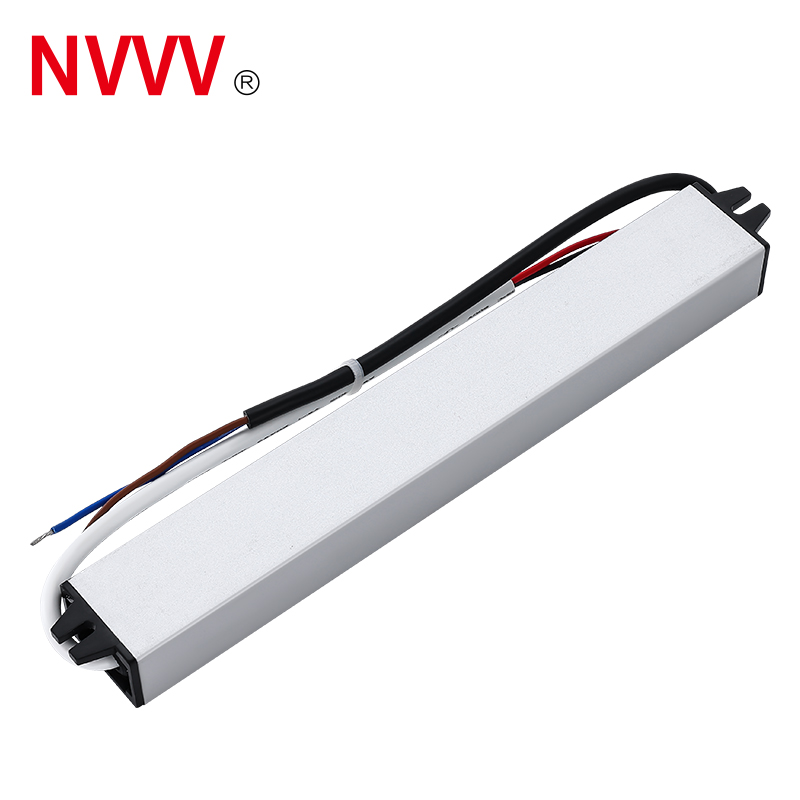

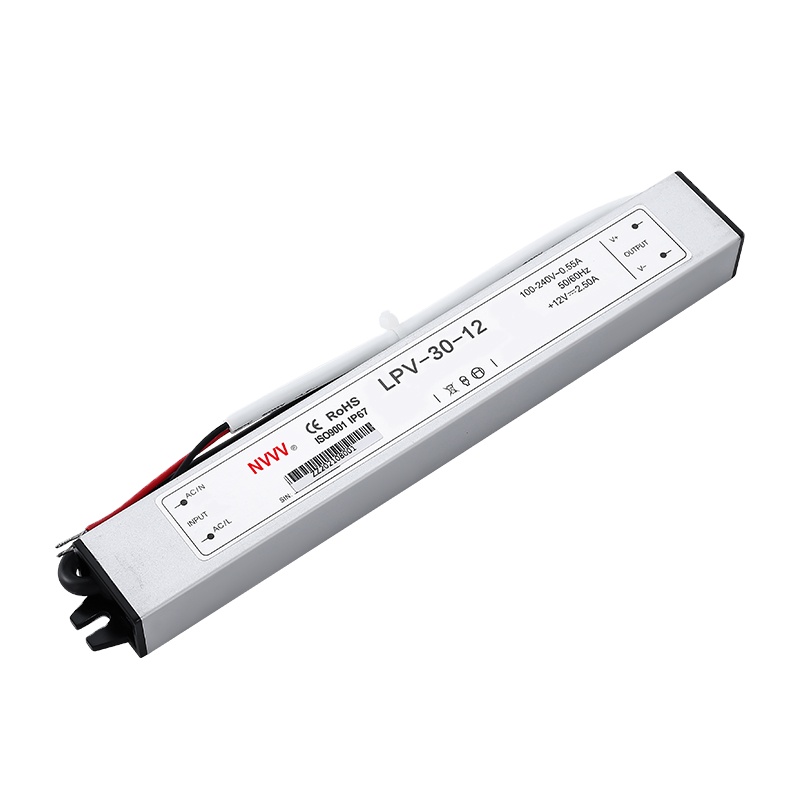

| LPV-30 30W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Parameter | 12V Technical Index | 24V Technical Index |
| Output Specs | |||
| DC Voltage | Nominal Voltage | 12V | 24V |
| Rated Current | Current Range | 2.5A | 1.25A |
| Rated Power | Max Output Power | 30W | 30W |
| Ripple and Noise | Peak-to-Peak Noise | < 120mV | < 150mV |
| Accuracy & Rate | Voltage Accuracy / Load Adjustment / Linear | Accuracy: ±5% | Load: ±2% | Linear: ±1% | |
| Timing | Starting and Rising Time | 500ms, 20ms, 16ms (115VAC) / 500ms, 20ms, 50ms (230VAC) | |
| Input Specs | |||
| Voltage Range | AC/DC Input Frequency Range | 90-264VAC (47Hz~63Hz) / 127VDC~370VDC | |
| Efficiency | Typical Efficiency | > 81% | > 83% |
| Working Current | Operating Current Draw | 1A / 110VAC | 0.65A / 230VAC | |
| Impulse Current | Inrush Current Limit | 220VAC: 60A | |
| Protection & Environment | |||
| Overload | Overload Protection | 105%-135% (Burping mode, auto-recovery after fault removal) | |
| Overvoltage | Overvoltage Protection | ≥ 115%-145% (Close output, restart to recover) | |
| Temperature | Working / Storage Limits | Working: -30℃ ~ +70℃ (20%~90% RH) | Storage: -40℃ ~ +85℃ (10%~95% RH) | |
| Safety & Isolation | |||
| Withstand Voltage | Isolation Strength | Input to Output: 3KVAC for 1 minute | |
| Leakage Current | Leakage limits | Input to Shell: < 2.5mA at 240VAC | |
| Impedance | Insulation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | |
| Physical Characteristics | |||
| Dimensions | Size (L*W*H) | 220 * 30 * 20 mm | |
| Weight | Net / Gross Weight | 250g / 260g | |
