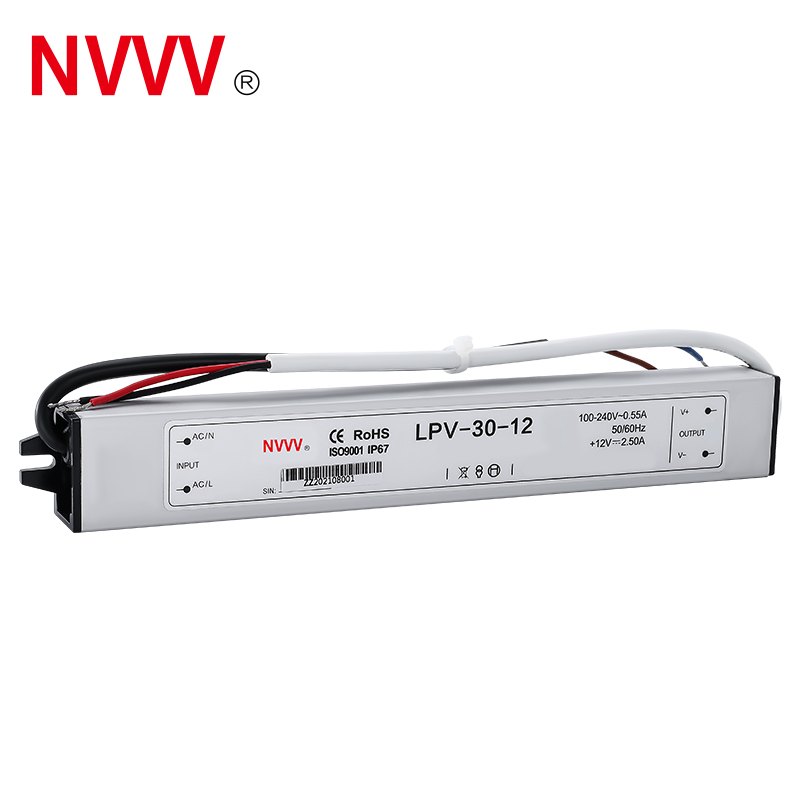

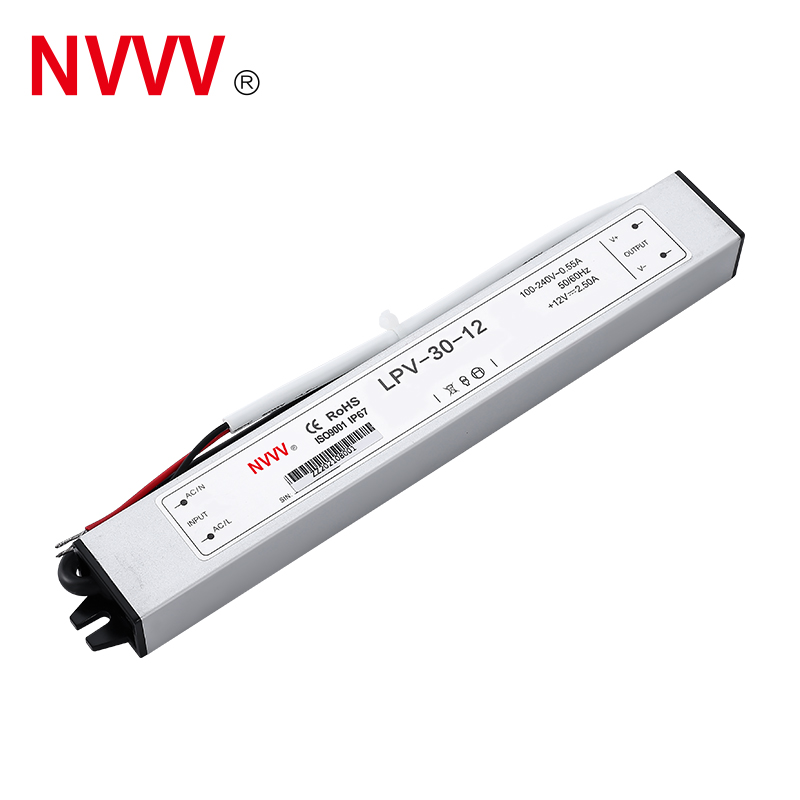

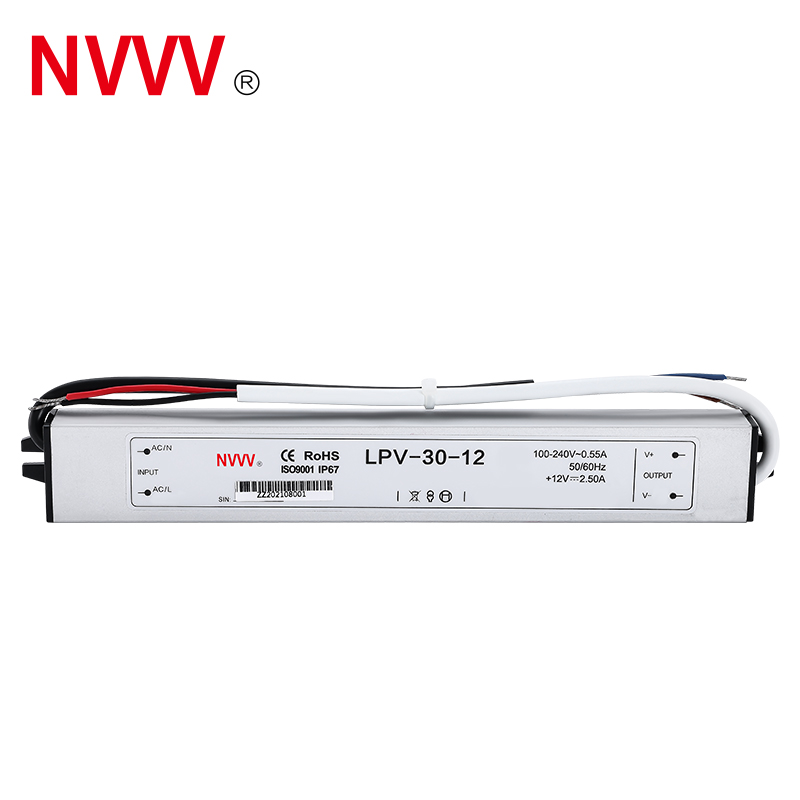

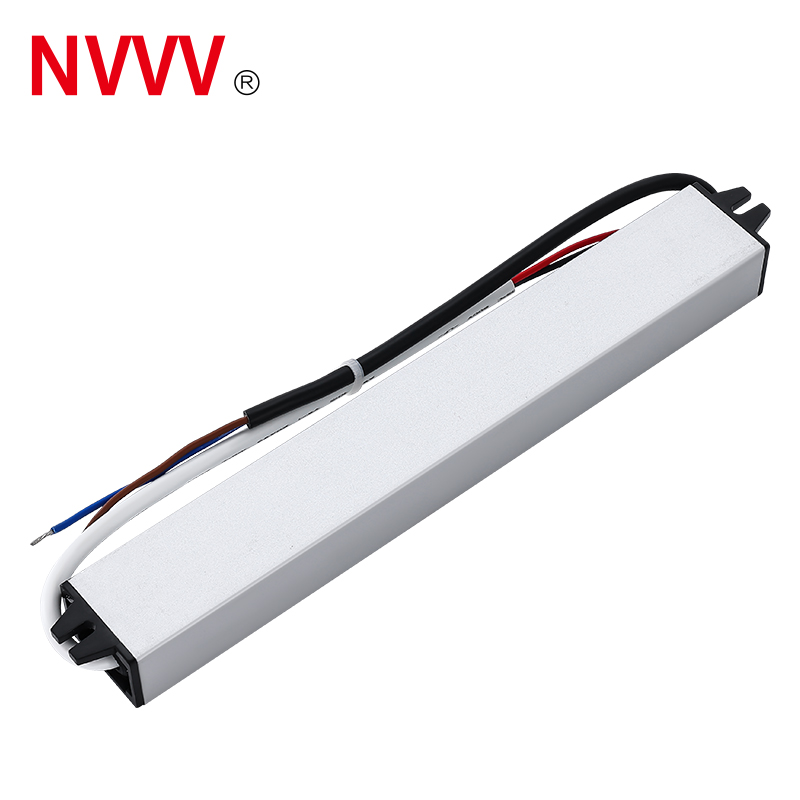

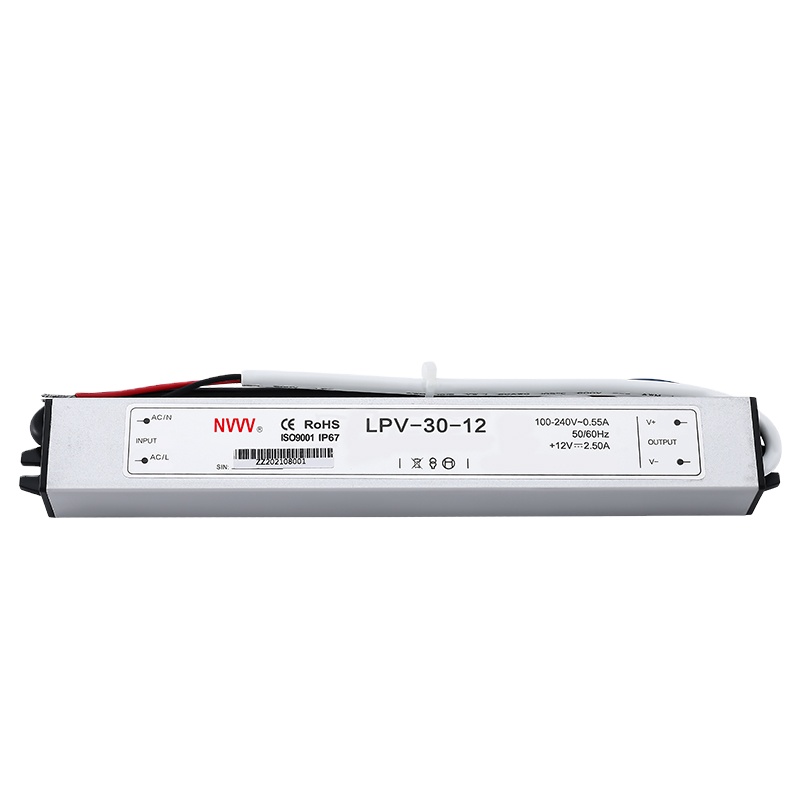

| LPV-30 30W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Project | Technical index | |
| Output | DC voltage | 12V / 24V |
| Rated current | 2.5A (12V) / 1.25A (24V) | |
| Rated power | 30W | |
| Ripple and noise | < 120mV (12V) / < 150mV (24V) | |
| Voltage accuracy | ±5% | |
| Load adjustment rate | ±2% | |
| Linear adjustment rate | ±1% | |
| Starting and rising time | 500ms, 20ms, 16ms (115VAC) / 500ms, 20ms, 50ms (230VAC) | |
| Input | Voltage range / frequency | 90-264VAC 47Hz~63Hz; 127VDC~370VDC |
| Efficiency (typical) | > 81% (12V) / > 83% (24V) | |
| Working current | 1A / 110VAC; 0.65A / 230VAC | |
| Impulse current | 220VAC: 60A | |
| Protect | Overload protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions |
| Overvoltage protection | ≥ 115% - 145% Protection type: close output, restart and automatically return to normal | |
| Function | Working temp. & humidity | -30℃ ~ +70℃; 20% ~ 90% RH |
| Storage temp. & humidity | -40℃ ~ +85℃; 10% ~ 95% RH | |
| Safety | Withstand voltage | Input-output: 3kVAC for 1 minute |
| Leakage current | Input-shell: < 2.5mA when 240VAC | |
| Insulation impedance | Input-output, input-shell, output-shell: 500VDC / 100M Ω | |
| Other | Size | 220*30*20mm |
| Net / Gross weight | 250g / 260g | |
