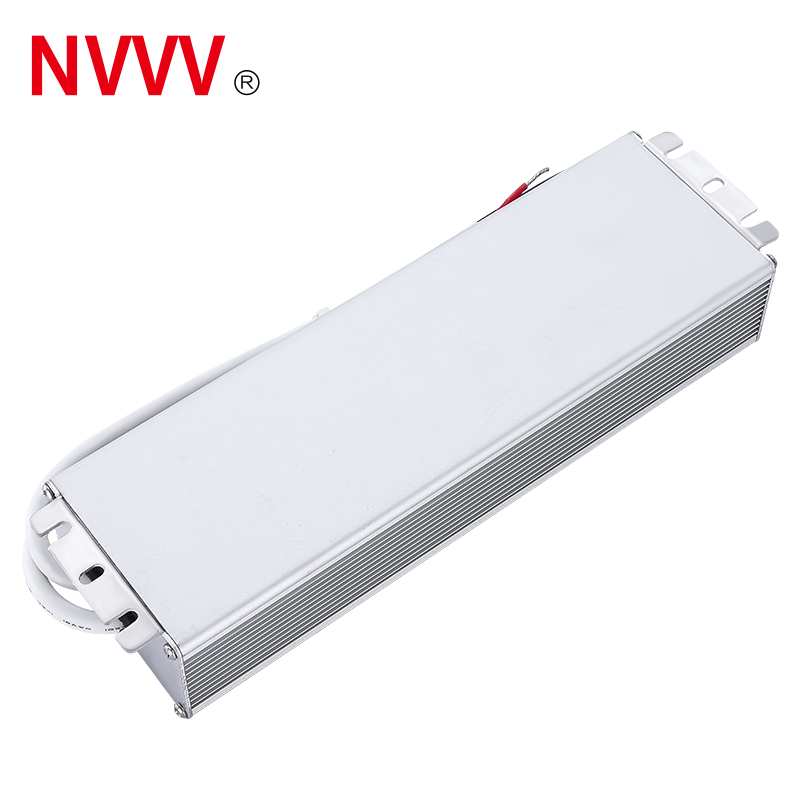

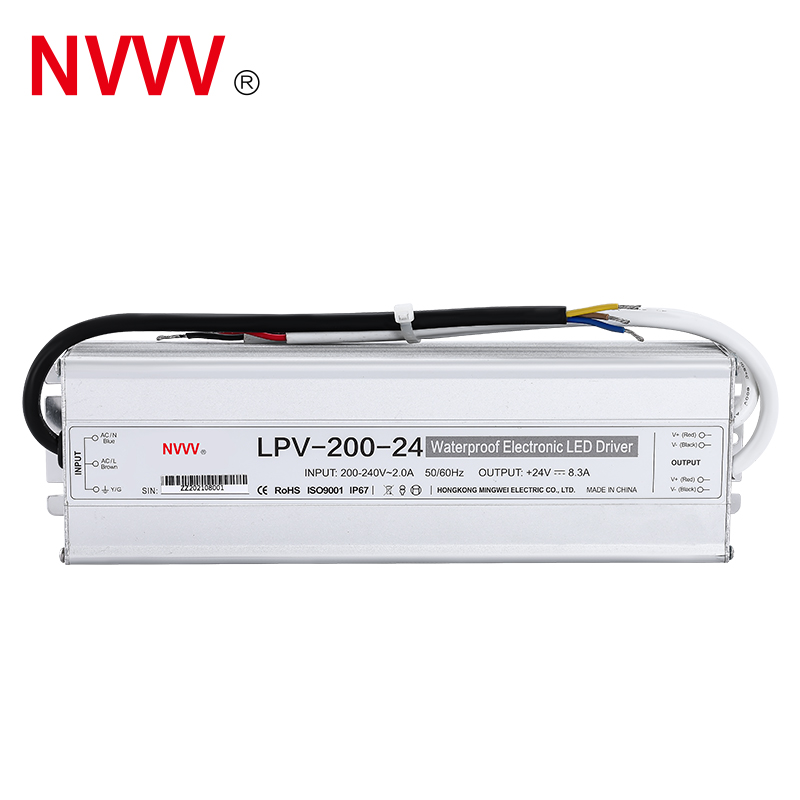

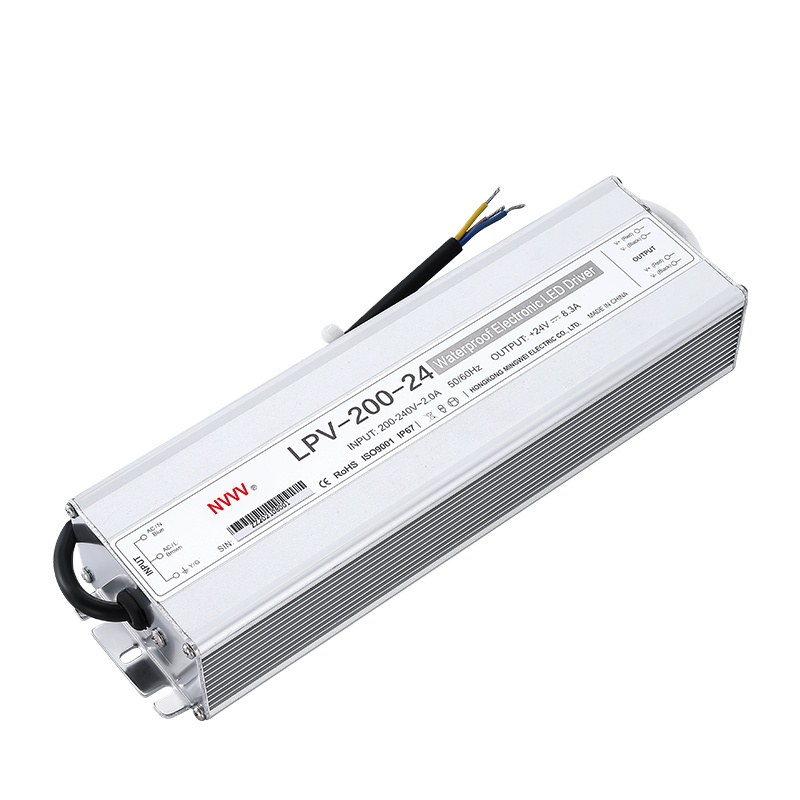

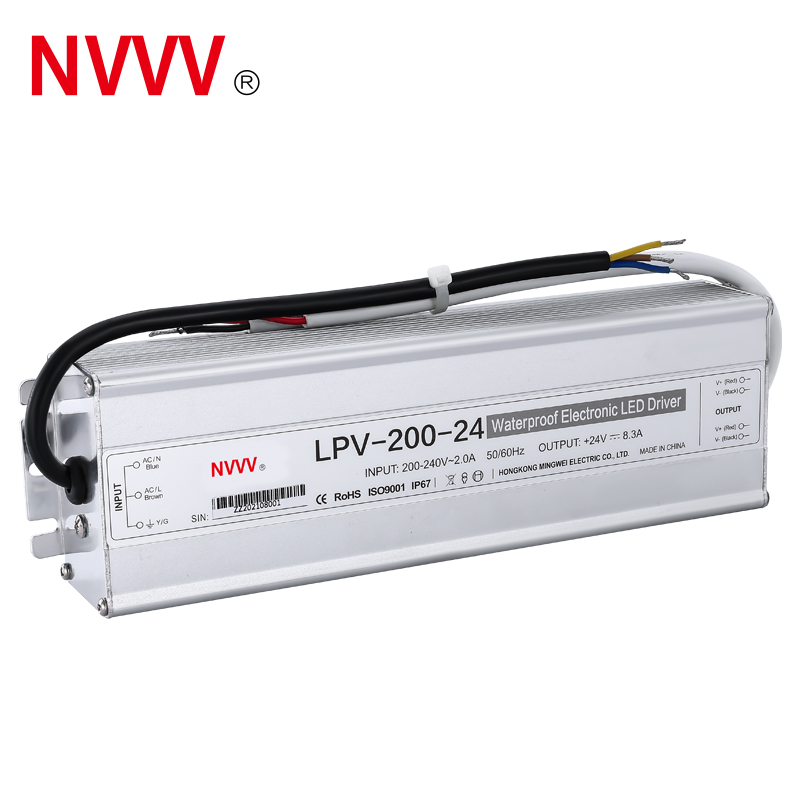

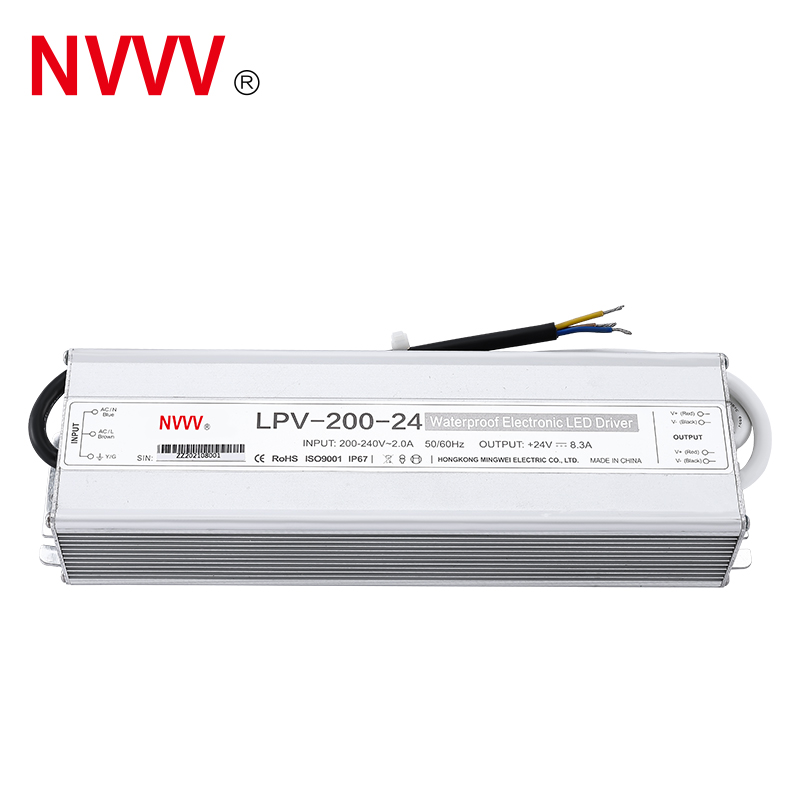

| LPV-200 200W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Category | Project | 12V Technical Index | 24V Technical Index |
| Output | DC voltage | 12V | 24V |
| Rated current | 16.6A | 8.3A | |
| Rated power | 199.2W | 199.2W | |
| Ripple and noise | < 120mV | < 200mV | |
| Voltage accuracy | ±5% | ||
| Load adjustment rate | ±2% | ||
| Linear adjustment rate | ±1% | ||
| Starting and rising time | 2000ms, 25ms, 15ms @ 115VAC / 2000ms, 25ms, 50ms @ 230VAC | ||
| Input | Voltage range / frequency | 90-264VAC 47Hz~63Hz / 127VDC~370VDC | |
| Efficiency (typical) | > 87% | > 88% | |
| Working current | 3A/110VAC 1.7A/230VAC | ||
| Impulse current | 220VAC: 60A | ||
| Production | Overload protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Overvoltage protection | ≥ 115% - 145% Protection type: close output, restart and automatically return to normal | ||
| Function | Working temperature and humidity | -30℃ ~ +70℃, 20% ~ 90% RH | |
| Storage temperature and humidity | -40℃ ~ +85℃, 10% ~ 95% RH | ||
| Safety Regulations | Withstand voltage | Input-output: 3KVAC for 1 minute | |
| Leakage current | Input shell: < 2.5mA @ 240VAC | ||
| Insulation impedance | Input-output, input-shell, output-shell: 500VDC / 100M Ω | ||
| Other | Size | 218 * 68 * 42mm | |
| Net weight / gross weight | 1100 / 1200g | ||
