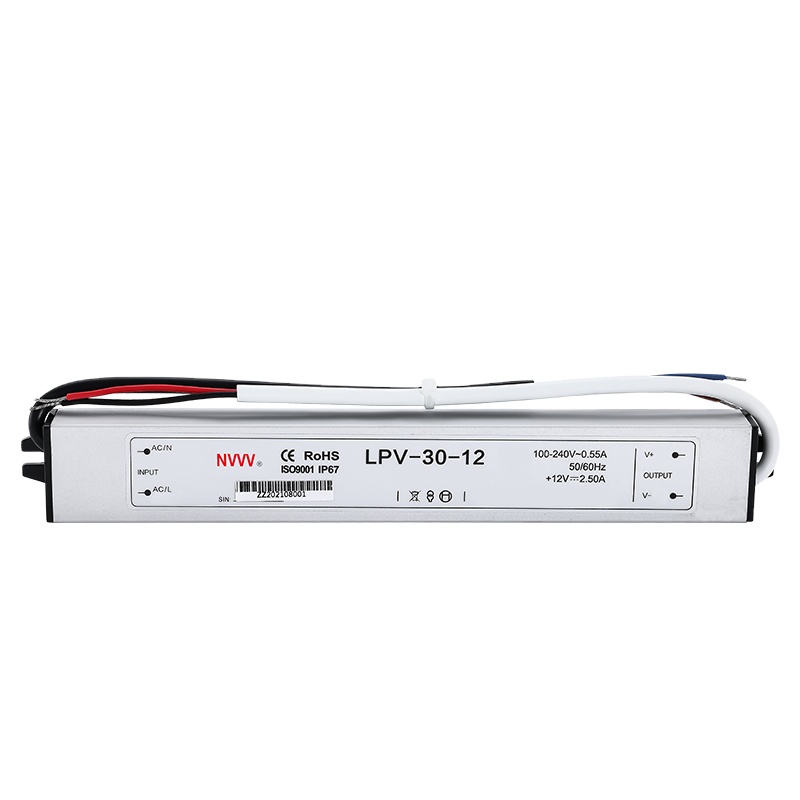

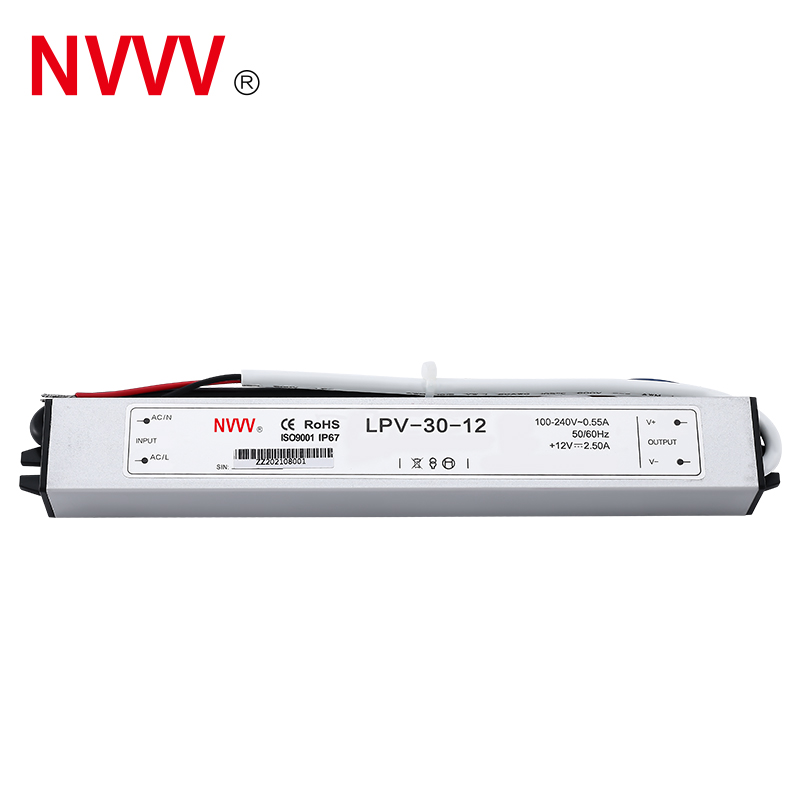

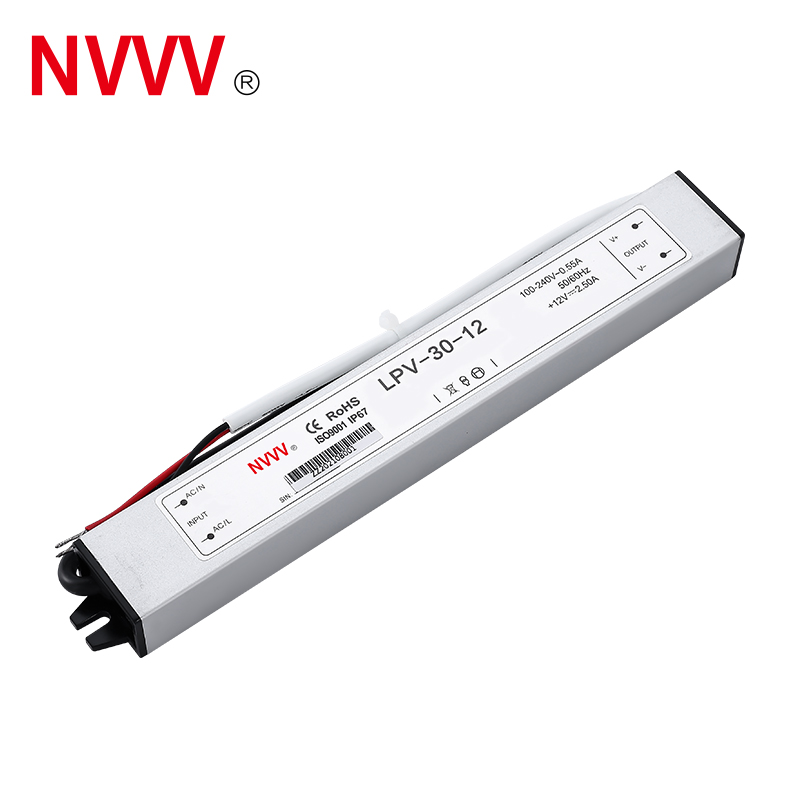

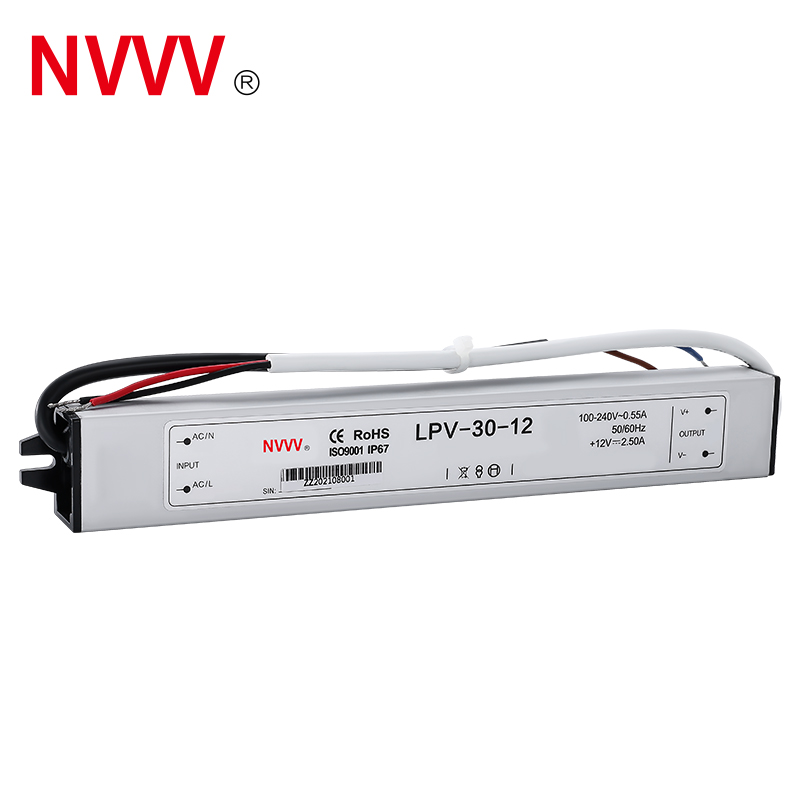

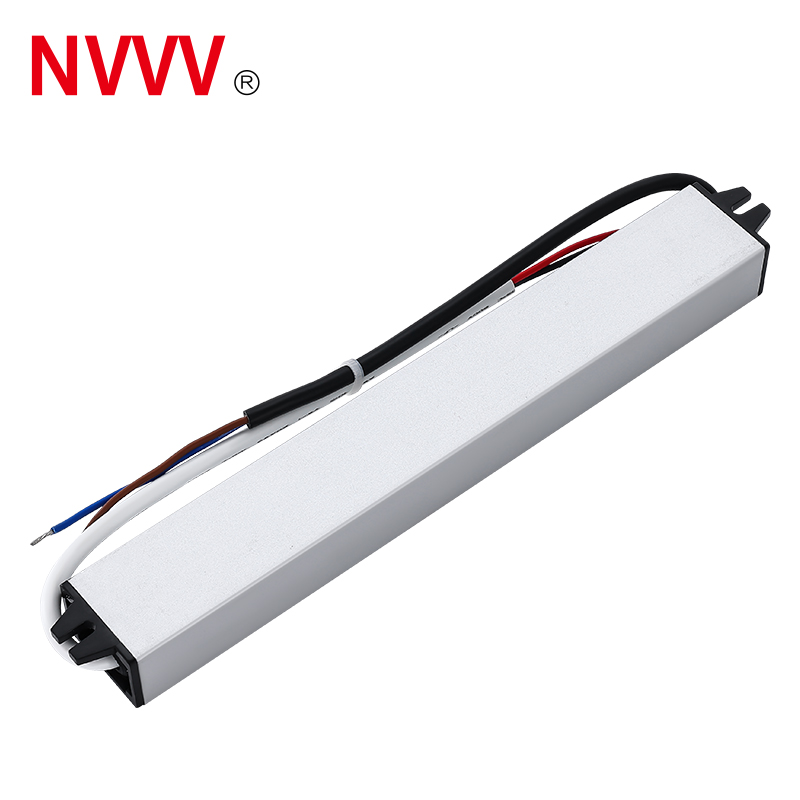

| LPV-30 30W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Project | Parameter | Technical Index Details |
| Output | DC voltage | 12V / 24V |
| Rated current | 2.5A (12V) / 1.25A (24V) | |
| Rated power | 30W | |
| Ripple and noise | < 120mV (12V) / < 150mV (24V) | |
| Voltage accuracy | ±5% | |
| Load adjustment rate | ±2% | |
| Linear adjustment rate | ±1% | |
| Starting and rising time | 500ms, 20ms, 16ms : 115VAC / 500ms, 20ms, 50ms : 230VAC | |
| Input | Voltage range / frequency | 90-264VAC 47Hz ~ 63Hz ; 127VDC ~ 370VDC |
| Efficiency (typical) | > 81% (12V) / > 83% (24V) | |
| Working current | 1A/110VAC ; 0.65A/230VAC | |
| Impulse current | 220VAC : 60A | |
| Protect | Overload protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions |
| Overvoltage protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | |
| Function | Working temperature and humidity | -30℃ ~ +70℃ ; 20% ~ 90% RH |
| Storage temperature and humidity | -40℃ ~ +85℃ ; 10% ~ 95% RH | |
| Safety regulations | Withstand voltage | Input output: 3kvac for 1 minute |
| Leakage current | input shell When 240VAC < 2.5mA | |
| Insulation impedance | Input output, input shell, output shell: 500VDC / 100M Ω | |
| Other | Size | 220*30*20mm |
| Net weight / gross weight | 250/260g | |
A: Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
A: We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, 110V depending on the specific item.
A: Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
A: Our MOQ is low. For sample checking, 30 pieces are available.
A: We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
A: First, all our products go through a strict quality control system, so the defect rate is very low. Second, during the warranty period: For small quantities, we will include new products with your next order. For defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
