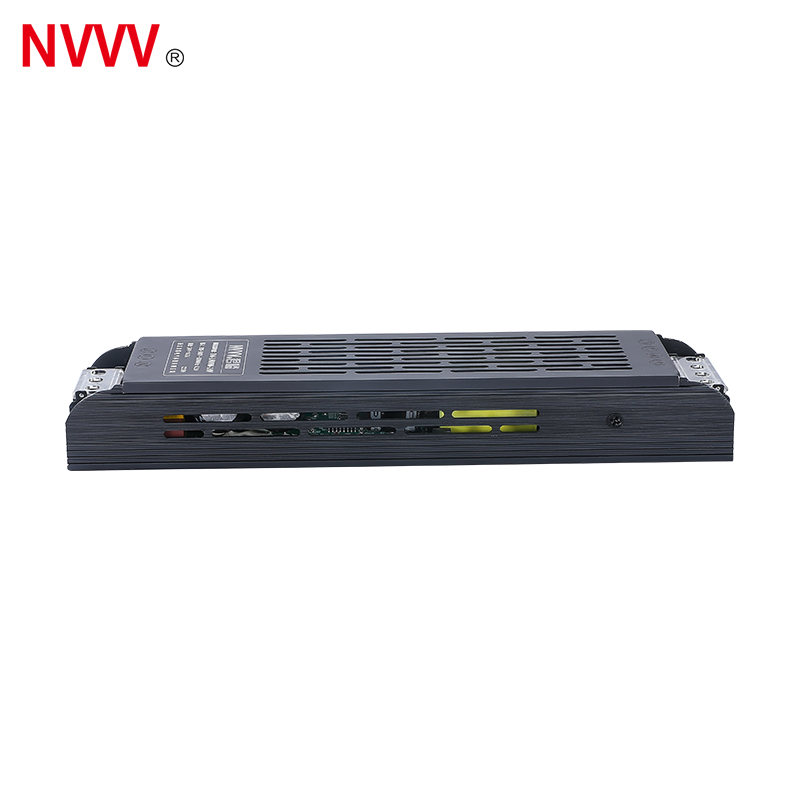

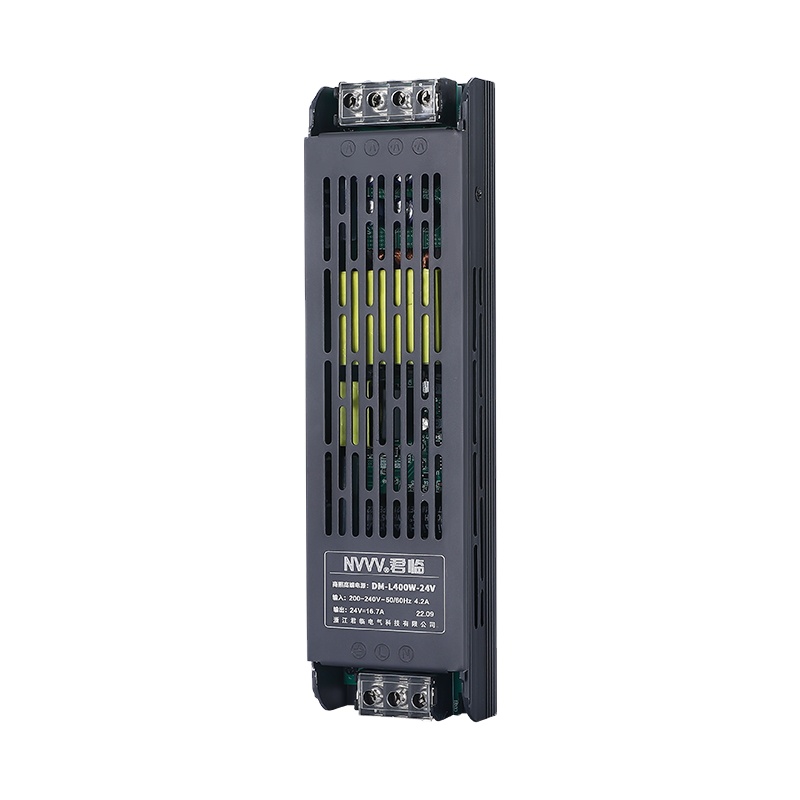

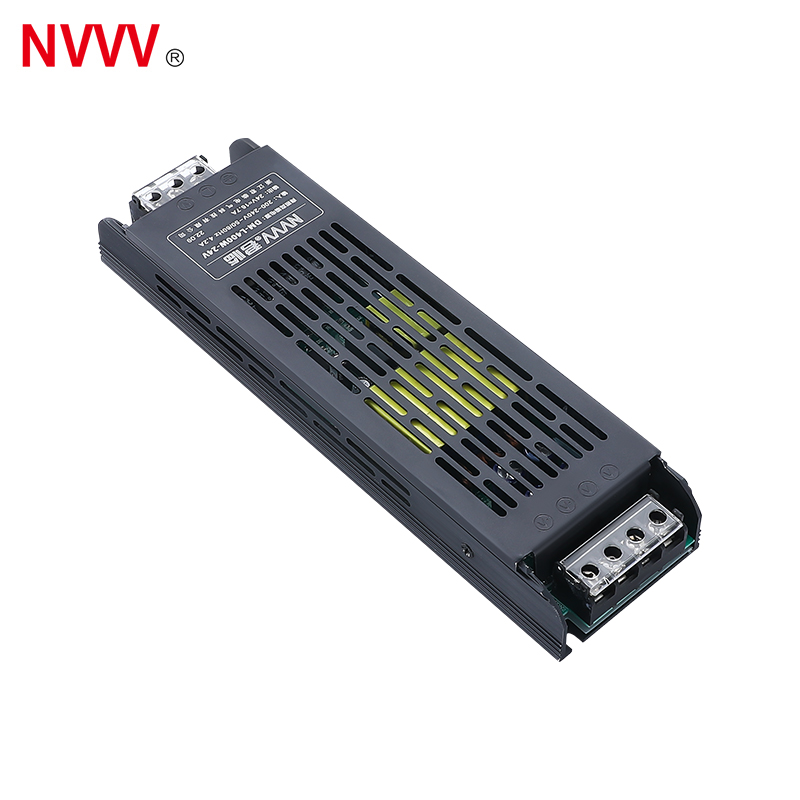

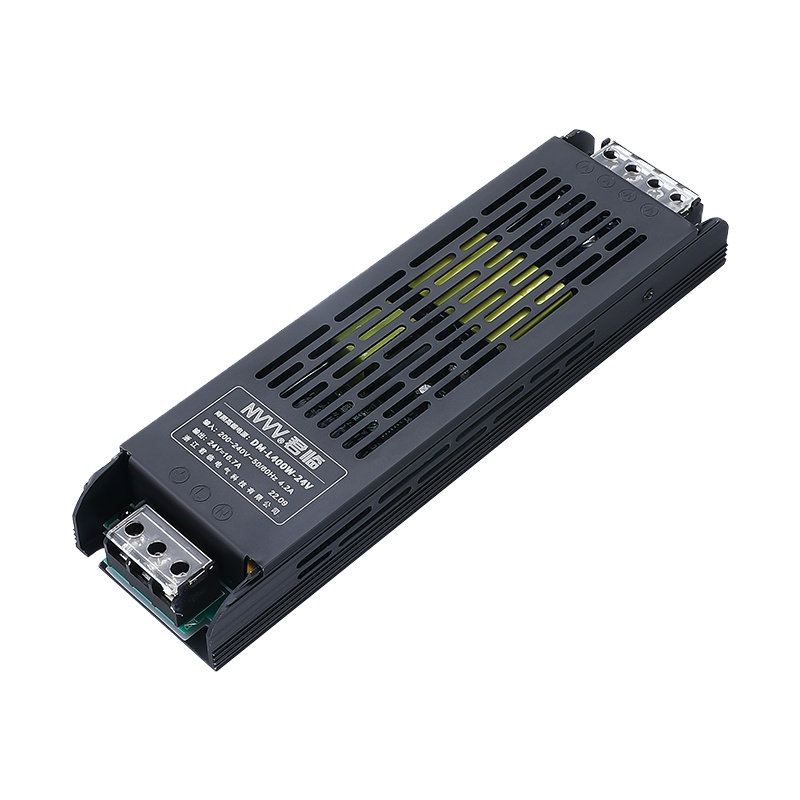

| DM-400W LED Driver | |||
|---|---|---|---|
| Project | Technical Index | ||
| OUTPUT CHARACTERISTICS | Voltage | 12V DC | 24V DC |
| Min. Load | 0A | 0A | |
| Rated. Load (max) | 33A | 16.5A | |
| Peak @ 10mS | 400W | 400W | |
| Output Power | 400W | 400W | |
| Combined Load/Line Regulation | Min. Load | 0A | 0A |
| Rated. Load | 33A | 16.5A | |
| Line Regulation | ±3% | ±3% | |
| Load Regulation | ±5% | ±5% | |
| INPUT CHARACTERISTICS | Rated Input Voltage | 200~240Vac | |
| Input Frequency | Rated Input Frequency | 50/60Hz. | |
| AC Leakage | AC Leakage Current | 3.5mA Max. At 240Vac input. | |
| ENVIRONMENTAL | Operation Temp. | -25°C to 40°C, Full load, Normal operation. | |
| Humidity | Relative Humidity | 5%(0°C)~90%(40°C)RH, 72Hrs, Full load, Normal operating. | |
| PHYSICAL SIZE | Dimensions | 220x60x29mm | |
| Weight | 0.388KG | ||
